6X6 Frontier EFI

6X6 Frontier EFI

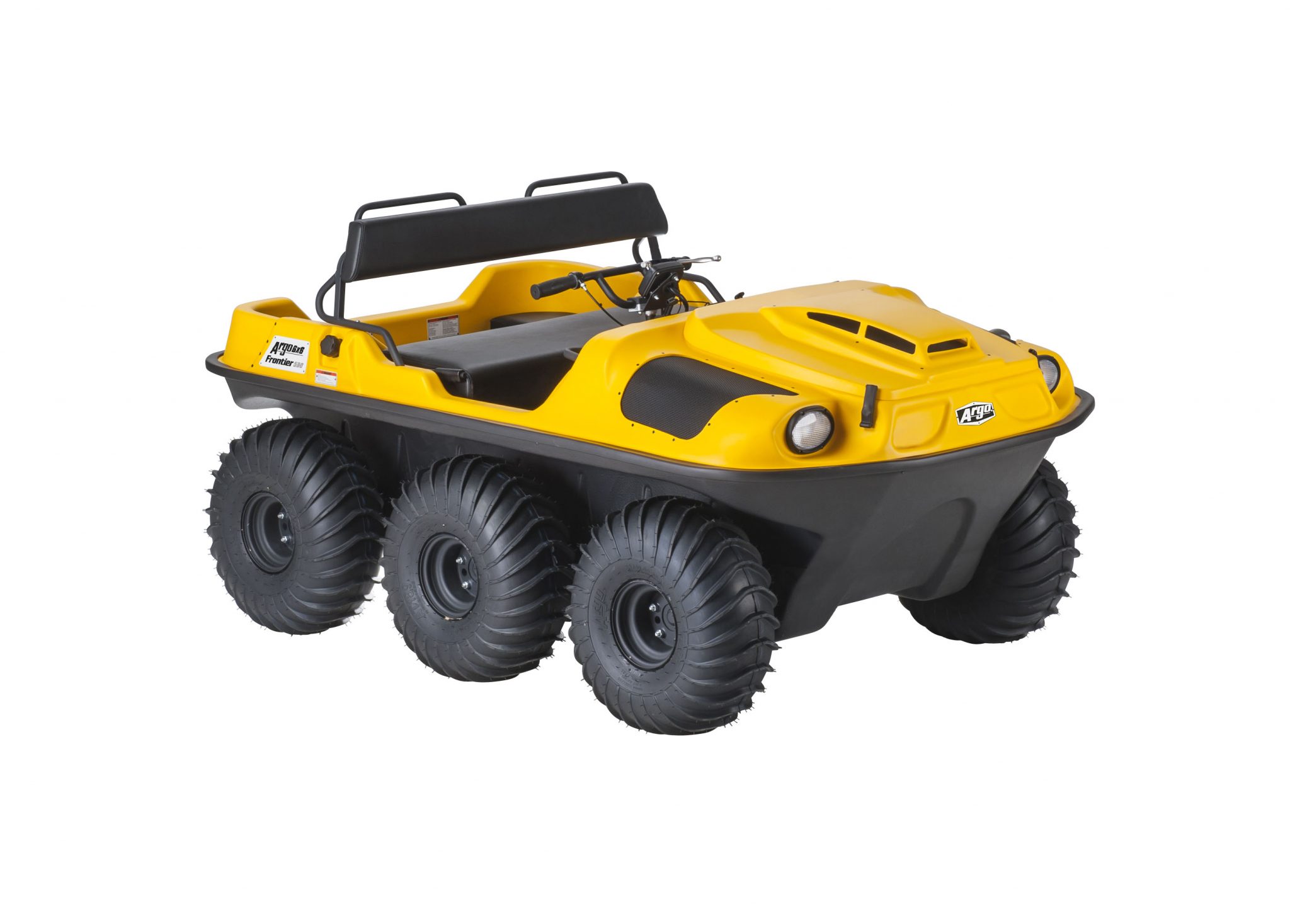

This 6-wheel drive amphibious off-road vehicle is powered by a 4 stroke OHV V-Twin air cooled 694cc, 19 hp (14.2 kW) Kohler Command Pro engine. It has a load capacity of up to 700 lb. / 317 kg on land or 500 lb. / 227 kg on water, can transport 4 passengers on land, 2 on water and features a towing capacity of 1,200 lb. / 544 kg. Rear seat weight restrictions of 140 lb. / 64 kg applies.

Also available with a 747cc, 23 hp (17 kW) Kohler Command Pro engine.

6X6 Frontier EFI Overview

Our most affordable 6×6 vehicle now features a Kohler closed loop electronic fuel injection (EFI) engine for improved throttle and increased fuel efficiency. This vehicle provides great performance in difficult terrain and water crossing capabilities and is idea for fishing, hunting and family fun. Seats up to 4 persons. The ARGO 6×6 Frontier EFI is our best value extreme terrain vehicle.

6X6 Frontier EFI Colors

Colors

6X6 Frontier EFI Features

• Ride friendly seats
• USB Power Outlet
• Entry Step
• 6-wheel traction with low center of gravity for extra stability
• Proven, state-of-the-art automatic continuously variable transmission with high and low range forward and reverse
• Electronic ignition
• Self-adjusting hydraulic brakes with vented discs
• Low emissions

6X6 Frontier EFI Specs

Engine 3 year
Model Kohler Command Pro
Horsepower* 19 or 23* dependant on engine selection per SAE J1940
Displacement 694 or 747cc
Cooling Air cooled
Starting Electric
Brakes Hydraulic
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission Planetary differential transmission with High and Low range; Forward, Neutral, Reverse.
Drive System Roller chains drive machined sprockets that are spline-fit onto 1 1/4″ diameter axles. Bearings are greaseable.
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Optional
Load Capacity – On Land 700 lb. / 318 kg total
Load Capacity – Rear Compartment 140 lb. / 63 kg max.
Load Capacity – On Water 500 lb. / 227 kg total
Towing Capacity 1200 lb. / 544 kg
Seating Capacity 4 persons on land, 2 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 22 mph / 35 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 880 lb. / 399 kg
Axle Bearing Extensions Front Optional – Rear Optional

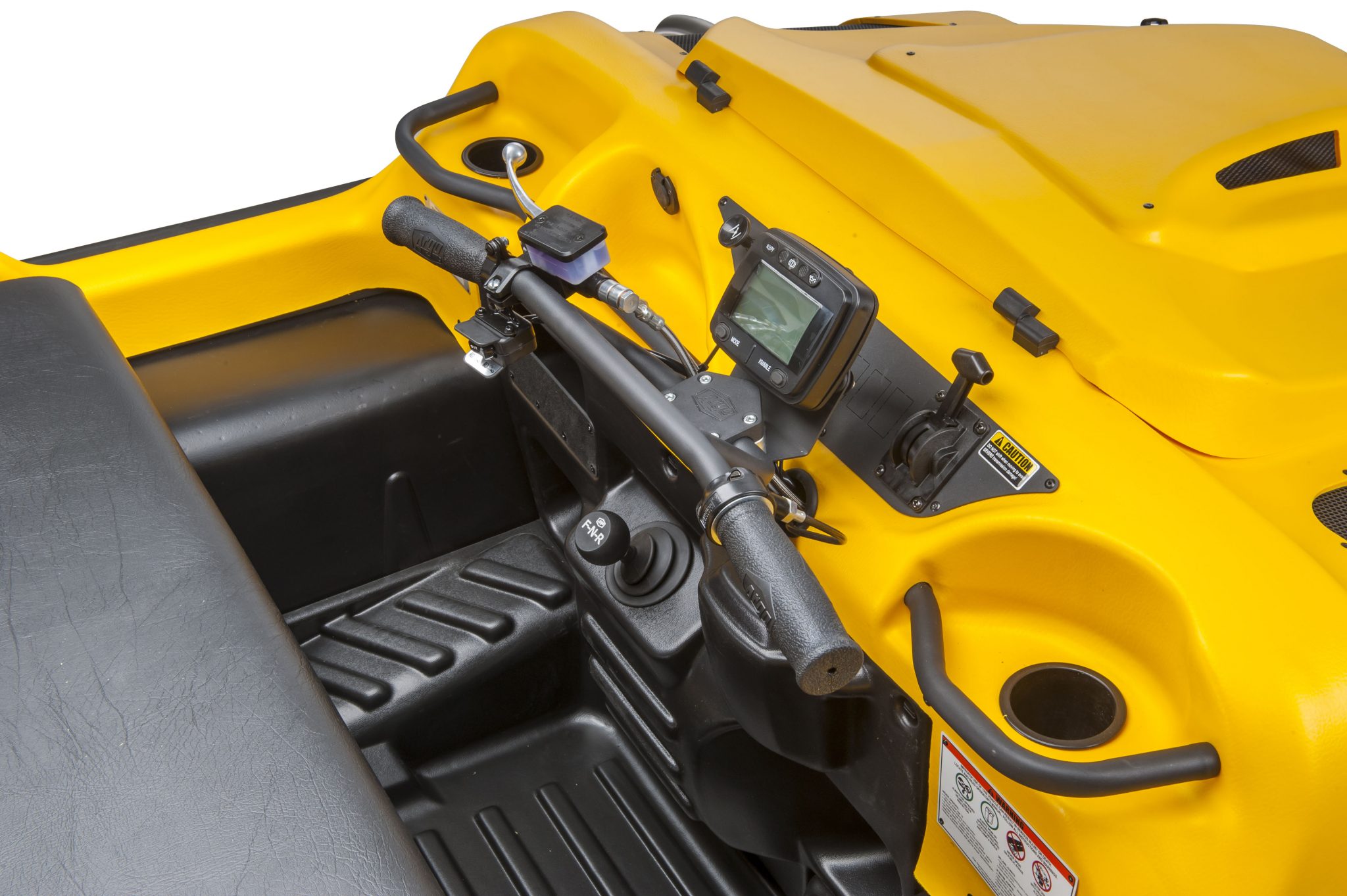

Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Tires ARGO AT189 24 x 10.00-8NHS
Ground Pressure 1.7 psi (13.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

6X6 Frontier EFI Downloads

Coming soon!
