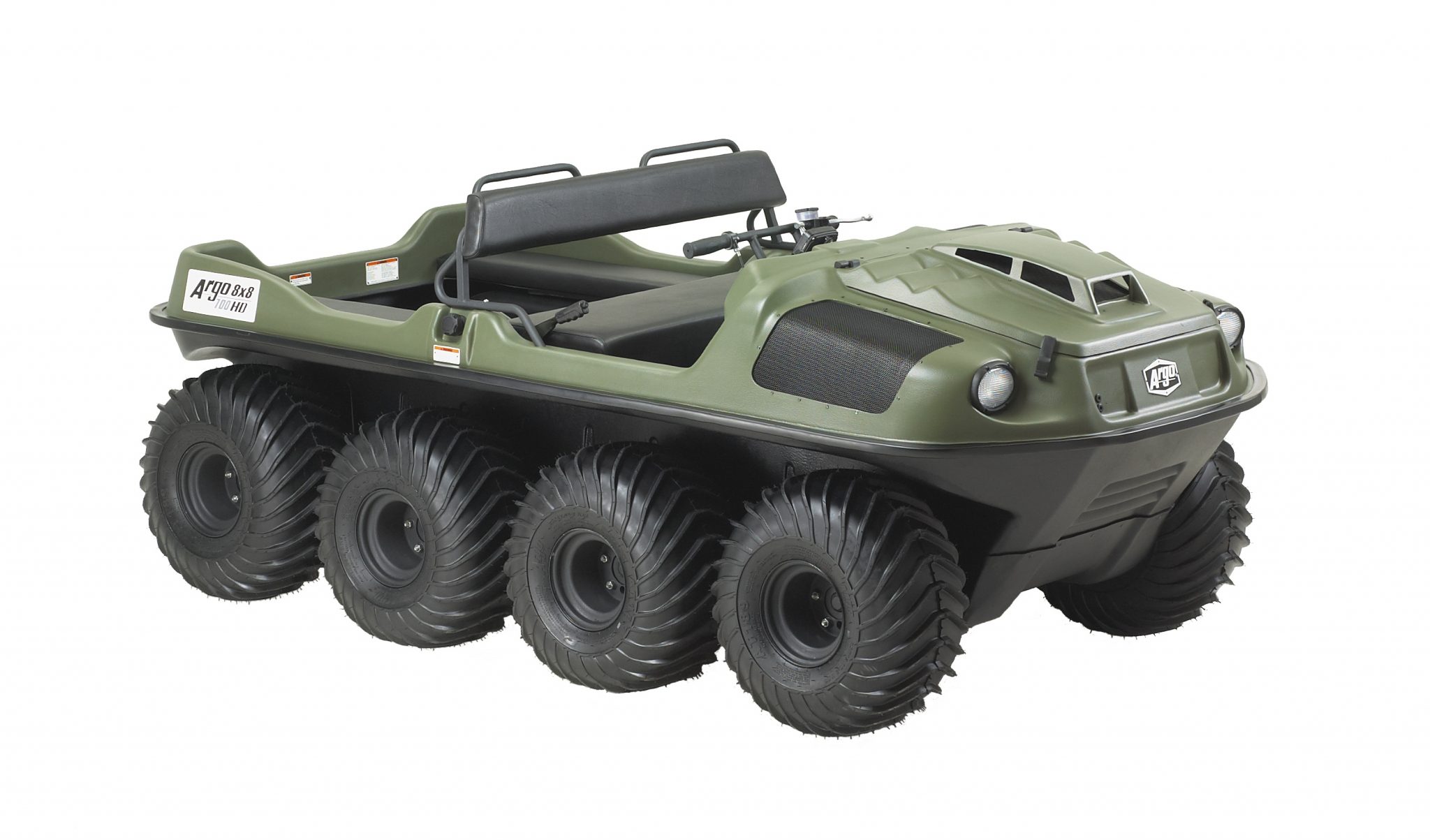

This 8-wheel drive amphibious off-road vehicle is powered by a 4-stroke OHV V-Twin liquid cooled 674cc, 24 hp (17 kW) Kohler Aegis LH 690 engine. It has a load capacity of up to 1150 lb. / 522 kg on land or 1000 lb. / 454 kg on water, can transport 6 passengers on land, 4 on water and features towing capacity of 1,800 lb. / 816 kg.
The quiet and smooth liquid cooled engine in combination with the efficient ADMIRAL steering transmission make this machine a joy to drive. It is easy to control running at top speed on a gravel road yet it can haul big loads through extreme terrain and water. Rubber tracks are available for better traction in soft terrain or snow.
• Innovative triple-differential ADMIRAL transmission with independent steering brakes
• Increased steering efficiency for more and constant power to the wheels
• Optional high torque transmission for extreme terrain performance
• Optional suspension seats
• Large rear cargo capacity
• Long wheel base for increased ride comfort over rough terrain
• Large triple-sealed outer axle bearings
• Front and rear bearing extensions
• Full skid plate for lower body protection
• 8-wheel traction with low centre of gravity for extra stability
• 25″ (635 mm) ARGO tires with proprietary tread design
• Electronic ignition

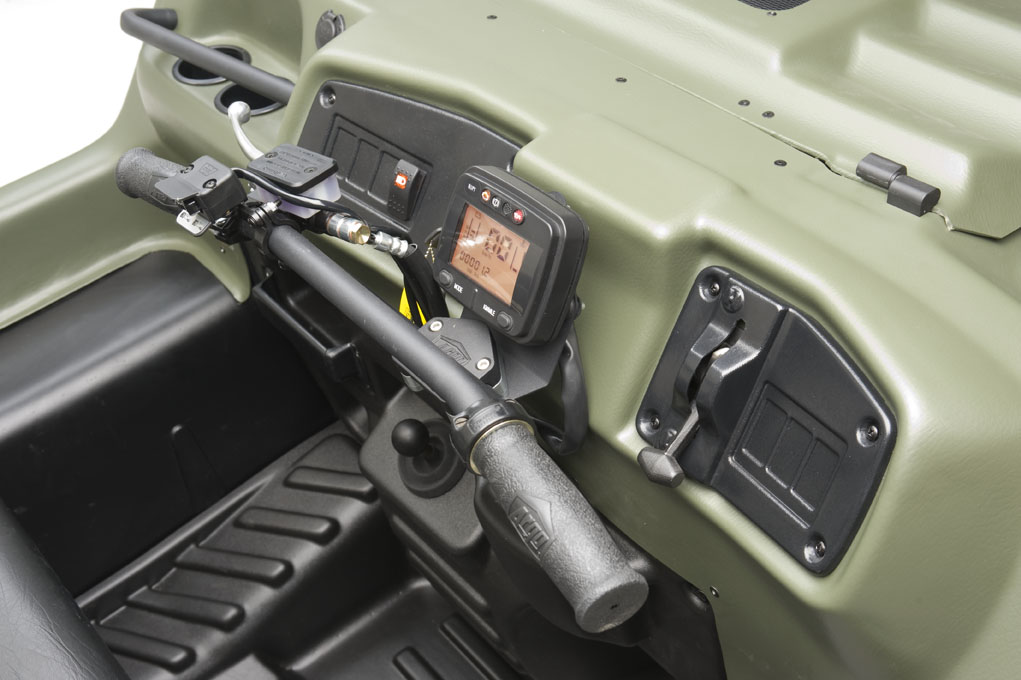

• Digital Gauge Cluster (speedometer, tachometer, odometer, voltmeter, hour meter, engine coolant temperature, low oil pressure and parking brake reminder lights)
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• Ride friendly seats
• USB Power Outlet
• Entry Step
• Three-year limited engine warranty
| Engine | 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year engine warranty |
| Model | Kohler Aegis LH 690 |
| Horsepower | 24 (17 kW) |
| Displacement | 674cc |
| Cooling | Liquid Cooled |
| Starting | Electric |
| Brakes | Hydraulic |
| Steering | One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease handling, the ARGO two mode steering for increased efficiency and increased agility. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse. |
| Drive System | Roller chains drive machined sprockets that are spline-fit onto 1 1/4″ diameter axles. Bearings are greasable and are protected with double-sealed outer flange assemblies. |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder-coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene. |
| Full Skid Plate | Standard |
| Load Capacity – On Land | 1150 lb. / 521 kg total |
| Load Capacity – On Water | 1000 lb. / 454 kg total |
| Towing Capacity | 1800 lb. / 816 kg |
| Seating Capacity – On Land | 6 persons |
| Seating Capacity – On Water | 4 persons |
| Fuel Capacity | 7.1 Us gallons (27 litres) See-through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) | 20 mph / 32 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 1250 lb. / 567 kg |
| Axle Bearing Extensions Front | Standard |
| Axle Bearing Extensions Rear | Standard |
| LCD Digital Gauge Cluster | Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Engine Coolant Temperature, Low Oil Pressure, Parking Brake Reminder lights and Check Engine Light. |
| Tires | ARGO AT189 25×12.00-9 NHS |
| Ground Pressure | 1.7 psi (13.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks |
| Ground Clearance Tires | 9.5″ (240 mm) |
| Ground Clearance Tracks | 10.5″ (265 mm) |
| Operating Conditions | All weather, all terrain, -40C to +40C |
| Dimensions |  |
Coming soon!
