8×8 750 EFI

8×8 750 EFI

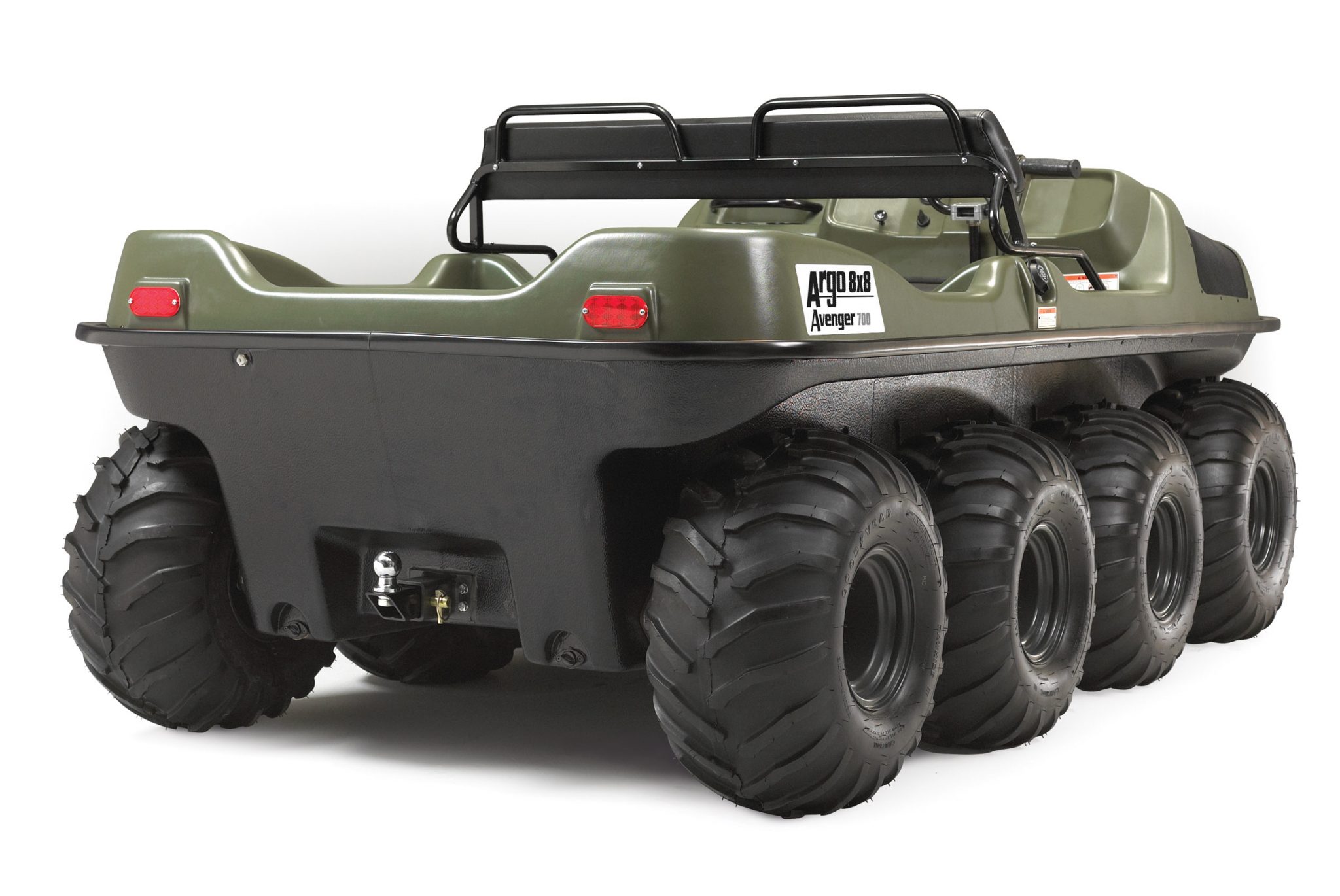

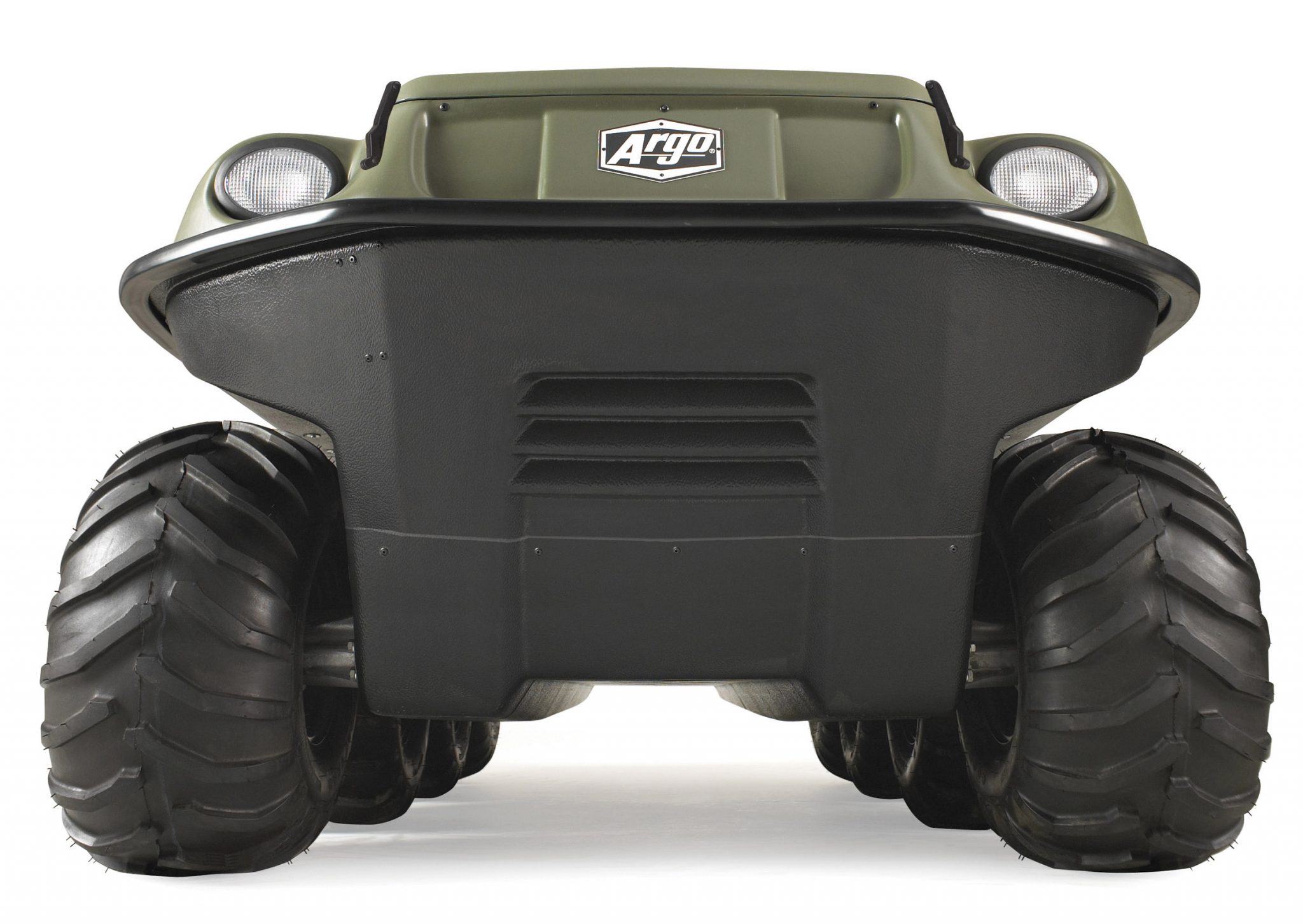

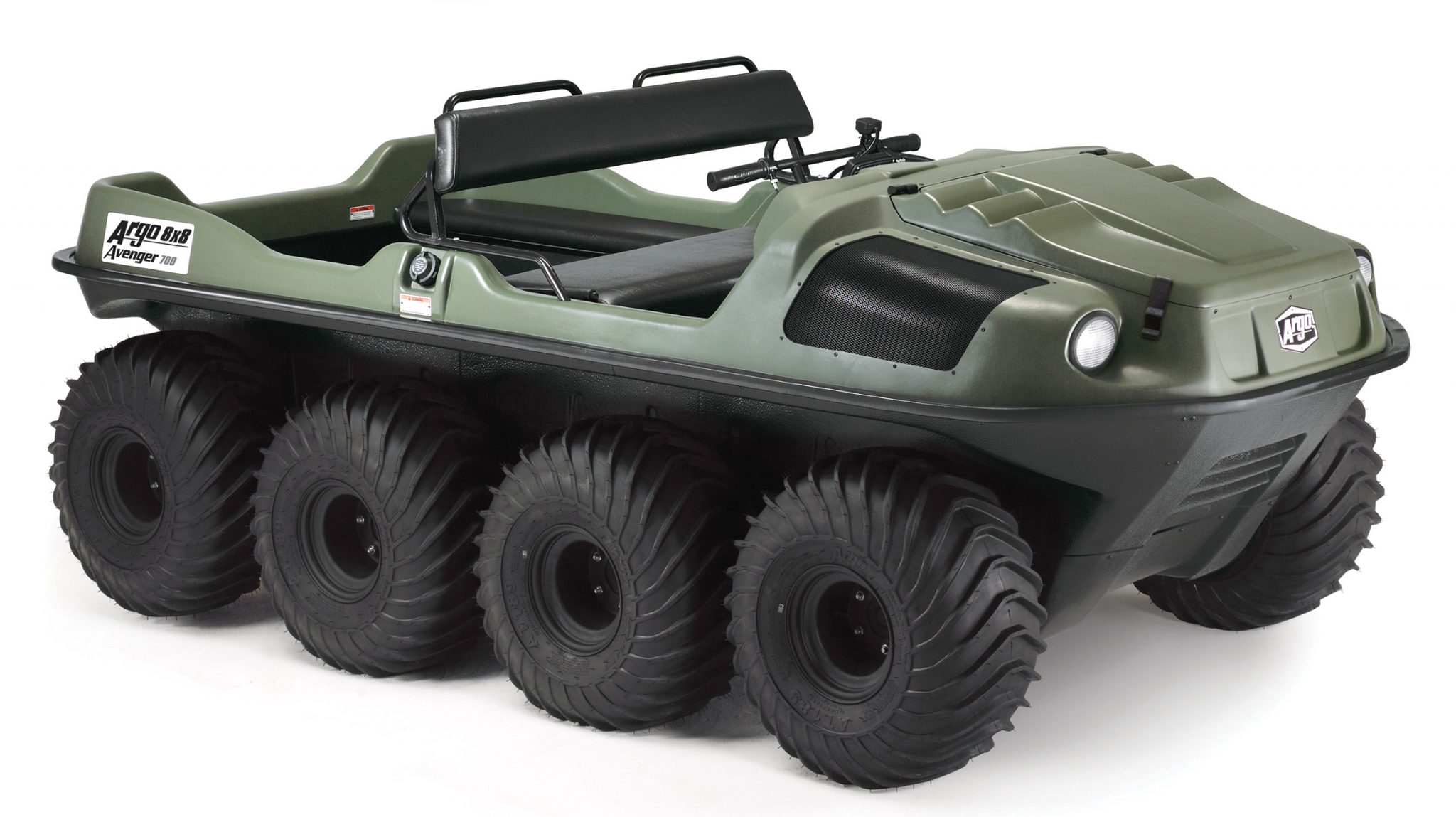

This 8-wheel drive amphibious off-road vehicle is powered by a 4-stroke OHV V-Twin liquid cooled 748cc, 30 hp (22 kW) Kohler Aegis LH 775 engine with electronic fuel injection. It has a load capacity of up to 1150 lb / 521 kg on land or 1000 lb / 454 kg on water, can transport 6 passengers on land, 4 on water and features a towing capacity of 1,800 lb.

8×8 750 EFI Overview

This is a great multipurpose vehicle for hunting, personal utility use and commercial applications. The large 25” (635 mm) wheels will take a full load over rocks and stumps with ease while providing extra stability and flotation in water. The powerful 30 hp (22 kW) liquid cooled engine will pull even the heaviest game out of the bush, or carry equipment and gear.  The engine starts at the turn of the key, even on the coldest morning, thanks to the electronic fuel injection.  Rubber tracks are available for better traction in soft terrain or snow.

8×8 750 EFI Colors

Colors_8x8_750_EFI

8×8 750 EFI Features

• Electronic Fuel Injection provides:
1. Better fuel economy
2. Reliable cold weather starting
3. Improved high altitude performance
4. On-board diagnostics

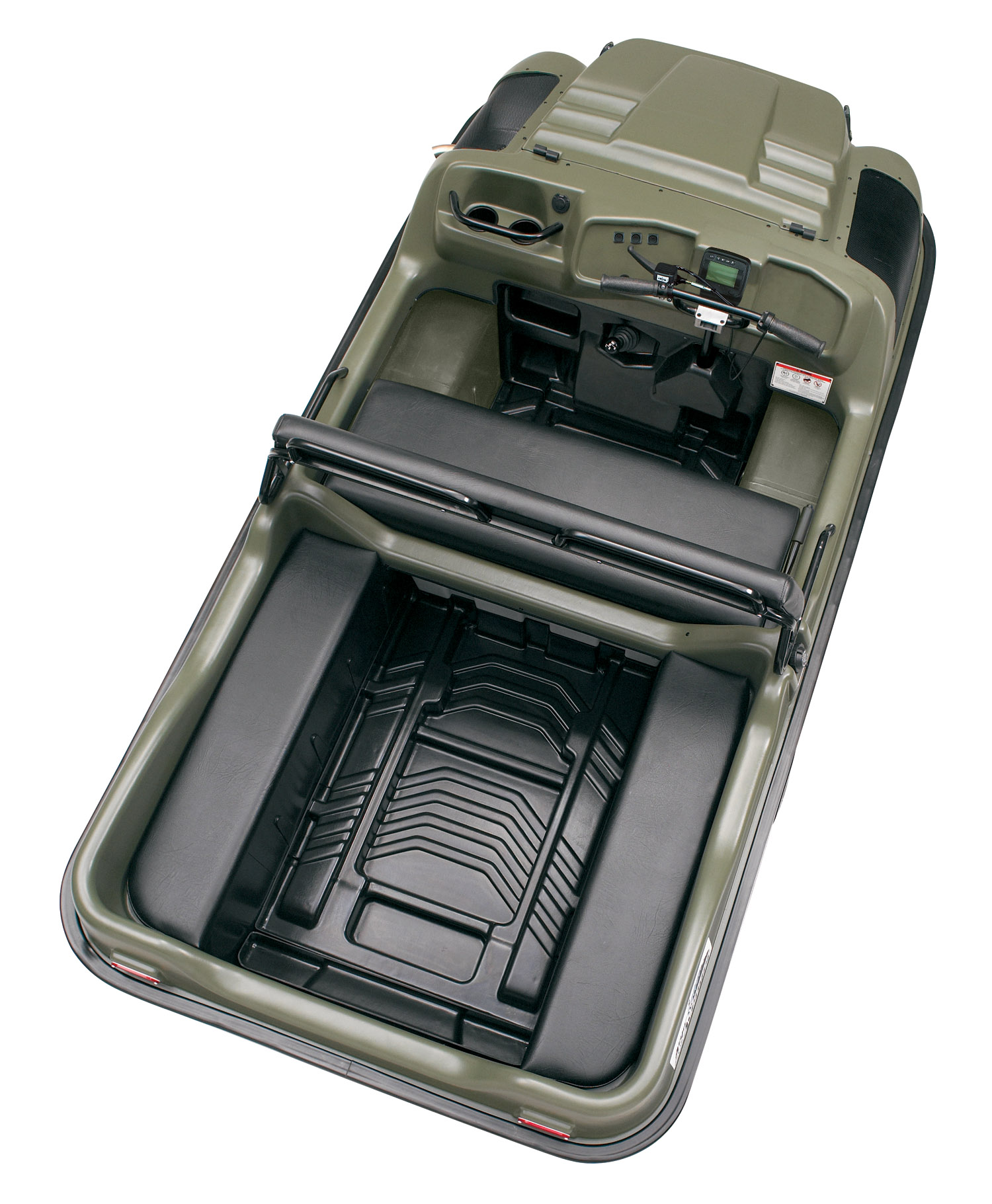

• Large rear cargo capacity
• Long wheel base for better ride comfort over rough terrain
• Large triple-sealed outer axle bearings
• Front and rear bearing extensions
• Full skid plate for lower body protection
• 8-wheel traction with low centre of gravity for extra stability
• Proven, state-of-the-art automatic continuously variable transmission with high and low range forward and reverse
• Optional high torque transmission for extreme terrain performance
• 25″ (635 mm) ARGO tires with proprietary tread design
• Electronic ignition
• Digital Gauge Cluster (speedometer, odometer, voltmeter, hour meter, tachometer, low oil pressure and parking brake reminder lights)
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• Three-year limited engine warranty

8×8 750 EFI Specs

Engine 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year warranty
Model Kohler Aegis LH 775
Horsepower 30
Displacement 748cc
Cooling Liquid Cooled
Starting Electric
Brakes Hydraulic

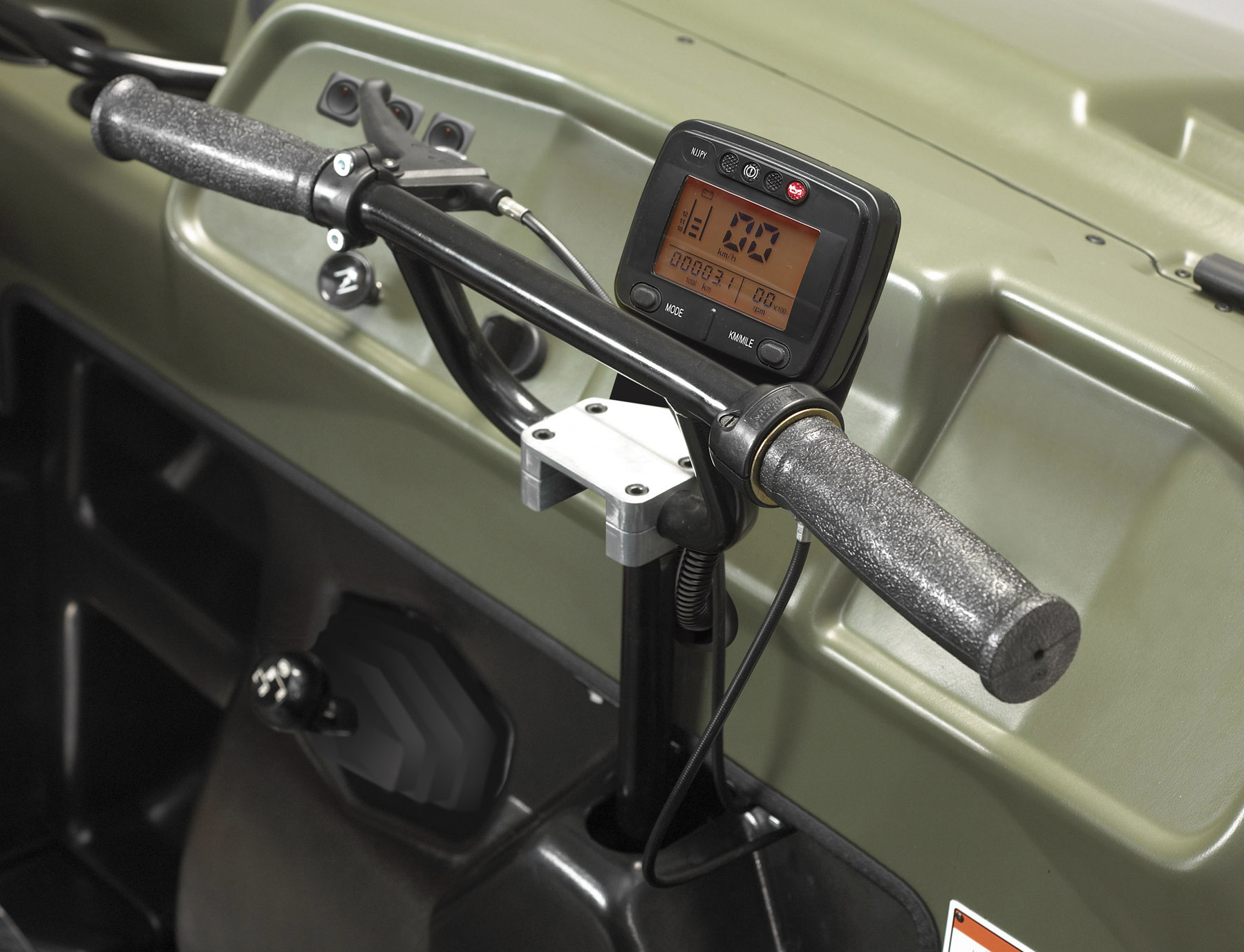

Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO two mode steering for increased efficiency and incresed agility.
Controls Right-hand twist grip throttle gripl. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission Planetary differential transmission with High and Low range; Forward, Neutral, Reverse.
Drive System Roller chains drive machined sprockets that are spline-fit onto 1 1/4″ diameter axles. Bearings are greaseable.
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Load Capacity – On Land 1150lbs / 521kg
Load Capacity – Rear Compartment No Restrictions
Load Capacity – On Water 1000 lbs / 454 kg total
Towing Capacity 1800 lbs / 818 kg
Seating Capacity  6 persons on land, 4 persons on water
Fuel Capacity 7.1 Us gallons (27 litres) See-through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 20 mph / 32 km per hour
Speed (on water) 2.5 mph / 4 per hour
Shipping Weight 1250 Ibs/570 kg
Axle Bearing Extensions Front – Standard Rear – Standard
LCD Digital Gauge Cluster Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Engine Coolant Temperature, Low Oil Pressure, Parking Brake Reminder lights and Check Engine Light.
Tires ARGO AT189 25×12.00-9 NHS
Ground Pressure 2.1 psi (14.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
