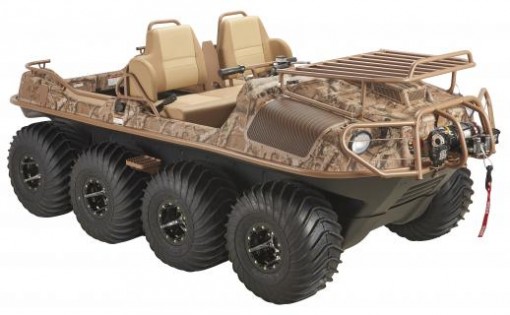

Avenger 8×8 Hunt Master R

Avenger 8×8 Hunt Master R

The Argo Avenger 8×8 Hunt Master R has everything you need to enjoy the great outdoors — especially if you’re a hunter or fisherman. It comes equipped with a Kohler Aegis ELH775 engine and can carry up to 910 lbs along with up to 6 people on land. You can take all of your gear to any location across mud, sand, swamps, even bodies of water. Just drive in and the Hunt Master R will float along using the tire treads as paddles. You can also add an outboard motor to cross water even faster. Grab your gear and your pals and hit the road.

Avenger 8×8 Hunt Master R Overview

• 30hp Kohler EFI Liquid-Cooled Engine
• 2 Gun Vertical Rack
• Bilge Pump Kit
• Brushguard
• Entry Step
• Front Hood Rack
• Front and Rear Bearing Extensions
• Heavy Duty Drive Belt
• High Powered LED Fog Lights
• Rear Brake Lights
• Rear Passenger Handrails
• Skid Plate
• USB / 12 Volt Outlet
• Upgraded High Back Seats and Trim
• Warn Provantage 3500 Cable Winch
• 1 3/8″ Forged Axles with 9in Steel Off-Set Rims
• Custom Desert Tan Paint / Infinity Camo Laminate

Avenger 8×8 Hunt Master R Colors

Infinity_Camo

Avenger 8×8 Hunt Master R Features

Hunt Master R

Avenger 8×8 Hunt Master R Specs

Avenger 8×8 Hunt Master R Specs

Engine Kohler Aegis ELH775
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 30
Displacement 747cc
Cooling Liquid Cooled
Alternator Optional
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Optional
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with independent  High and Low range; Forward, Neutral, Reverse.
Transmission Options STD or HT
Drive System Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings.
Final Drive RC50-2 and RC60 roller chain drive to all 8 axles
HD Drive Belt Standard
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Standard
Winch 3,500 lb Warn Winch & Rear Receiver Winch Kit
Bilge Pump Standard
Load Capacity – On Land 910 lb. /413 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water 760 lb. / 345 kg total
Towing Capacity 1800 lb. / 816 kg
Seating Capacity 6 persons on land, 4 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 20 mph / 32 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1490 lb. /676 kg
Axle Bearing Extensions Standard
Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Entry Step Dual Side Entry Steps
Tires ARGO AT189 25 x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

*subject to change without notice
