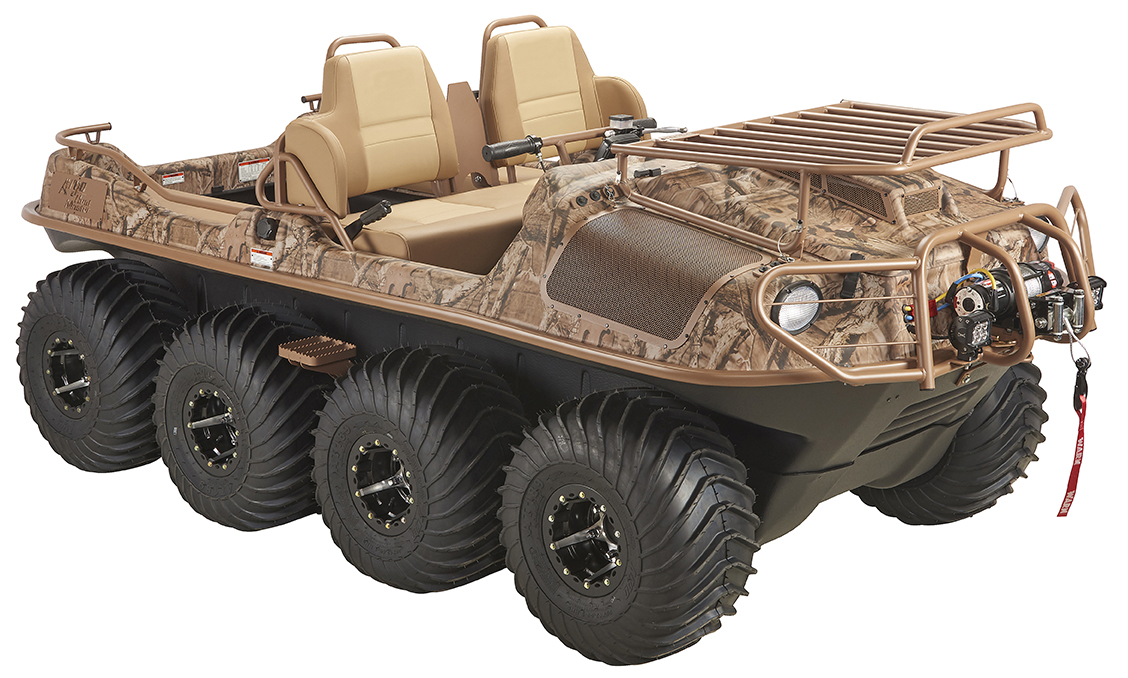

Avenger 8×8 Hunt Master X

Avenger 8×8 Hunt Master X

For the hunting enthusiast, it doesn’t get much better than the ARGO Avenger Hunt Master series. The Avenger 8×8 Hunt Master X holds up to 6 passengers on land and 4 on the water with a load capacity of 905 lb. It also features a detachable hood rack for transporting extra gear for longer trips or for bringing home your newest trophies.

Avenger 8×8 Hunt Master X Overview

• 30HP Kohler Liquid Cooled Engine
• 25” Aluminum Off-Set Bead Lock Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Dual Side Entry Steps
• 3500 lb Warn Winch
• Brushguard
• Brake Cooling Fan
• HD Drive Belt
• Hunt Master Package (Premium Seats, Front Rack & Gun Rack, Handrails, Rear Receiver Winch Wiring, Fog Lights, Brake/Tail Lights)
• Transmission Option: Admiral – HS (34-200-6.2)

Avenger 8×8 Hunt Master X Colors

Infinity_Camo

Avenger 8×8 Hunt Master X Features

hunt-master-x

Avenger 8×8 Hunt Master X Specs

Engine Kohler Aegis ELH775
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 30
Displacement 747cc
Cooling Liquid Cooled
Alternator Optional
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Standard
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with independent  High and Low range; Forward, Neutral, Reverse.
Transmission Options HS
Drive System Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings.
Final Drive RC50-2 and RC60 roller chain drive to all 8 axles
HD Drive Belt Standard
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Standard
Winch 3,500 lb Warn Winch & Rear Receiver Winch Kit
Bilge Pump Standard
Load Capacity – On Land 905 lb. /411 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water 755 lb. / 342 kg total
Towing Capacity 1800 lb. / 816 kg
Seating Capacity 6 persons on land, 4 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 25 mph / 40 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1495 lb. /678 kg
Axle Bearing Extensions Standard
Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Entry Step Dual Side Entry Steps
Tires ARGO AT189 25 x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

*subject to change without notice
