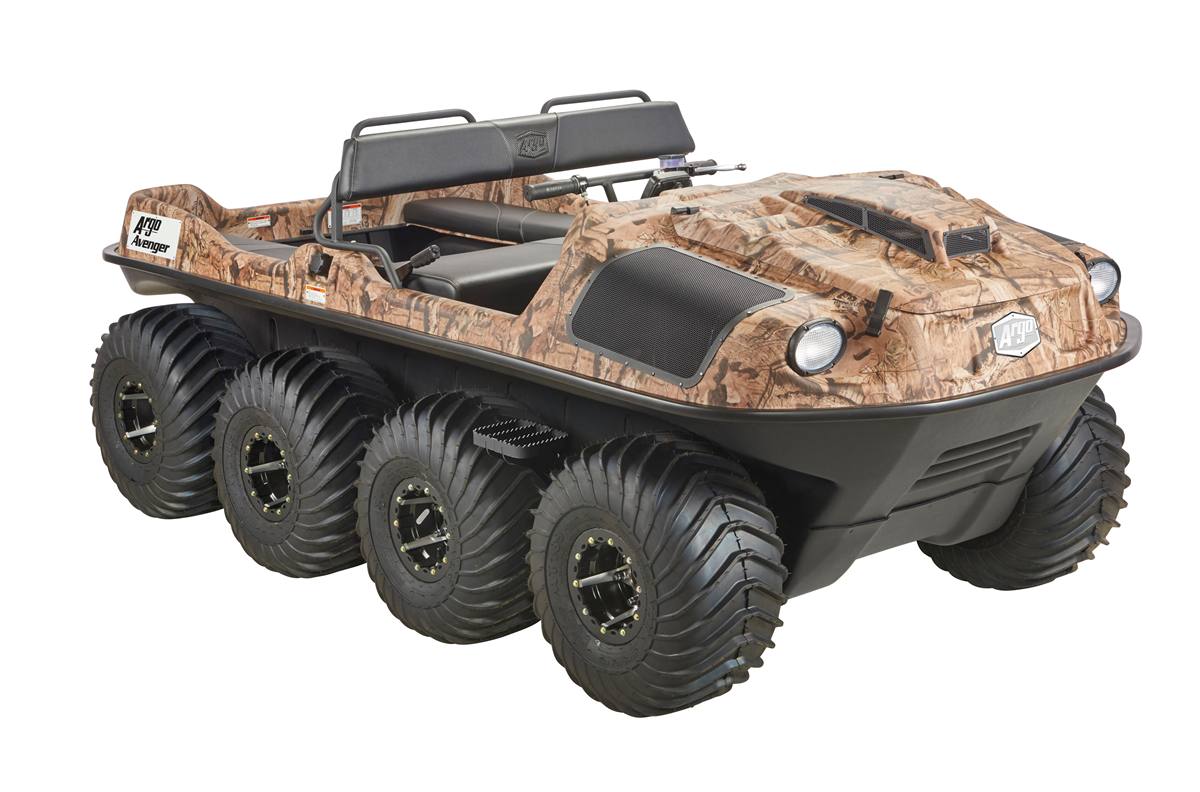

Avenger 8×8 STR

Avenger 8×8 STR

The Avenger 8×8 STR comes equipped with a 30 HP Kohler V-Twin engine, electronic ignition, and Admiral transmission. Don’t worry about bring too much gear — It can carry 1,045 lb. on land and up to 895 lb. on the water. Your entire crew (6 passengers on land and 4 on the water) will have nothing holding you back once you head out into the wild.

Avenger 8×8 STR Overview

• 30HP Kohler Liquid Cooled Engine
• 25″ Steel Off-Set Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Entry Step
• Transmission Options: Admiral – HT (34-200-8.1); Admiral – STD (34-200-6.2)

Avenger 8×8 STR Colors

Black_Green_Infinity_Camo

Avenger 8×8 STR Features

Avenger STR

Avenger 8×8 STR Specs

Avenger 8×8 STR Specs

Engine Kohler Aegis ELH775
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 30
Displacement 747cc
Cooling Liquid Cooled
Alternator Optional
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Optional
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with independent  High and Low range; Forward, Neutral, Reverse.
Transmission Options STD or HT
Drive System Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings.
Final Drive RC50-2 and RC60 roller chain drive to all 8 axles
HD Drive Belt Optional
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Optional
Winch Optional
Bilge Pump Standard
Load Capacity – On Land 1045 lb. /474 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water 895 lb. / 406 kg total
Towing Capacity 1800 lb. / 816 kg
Seating Capacity 6 persons on land, 4 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 20 mph / 32 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1355 lb. /615 kg
Axle Bearing Extensions Standard
Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Entry Step Standard
Tires ARGO AT189 25 x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

*subject to change without notice
