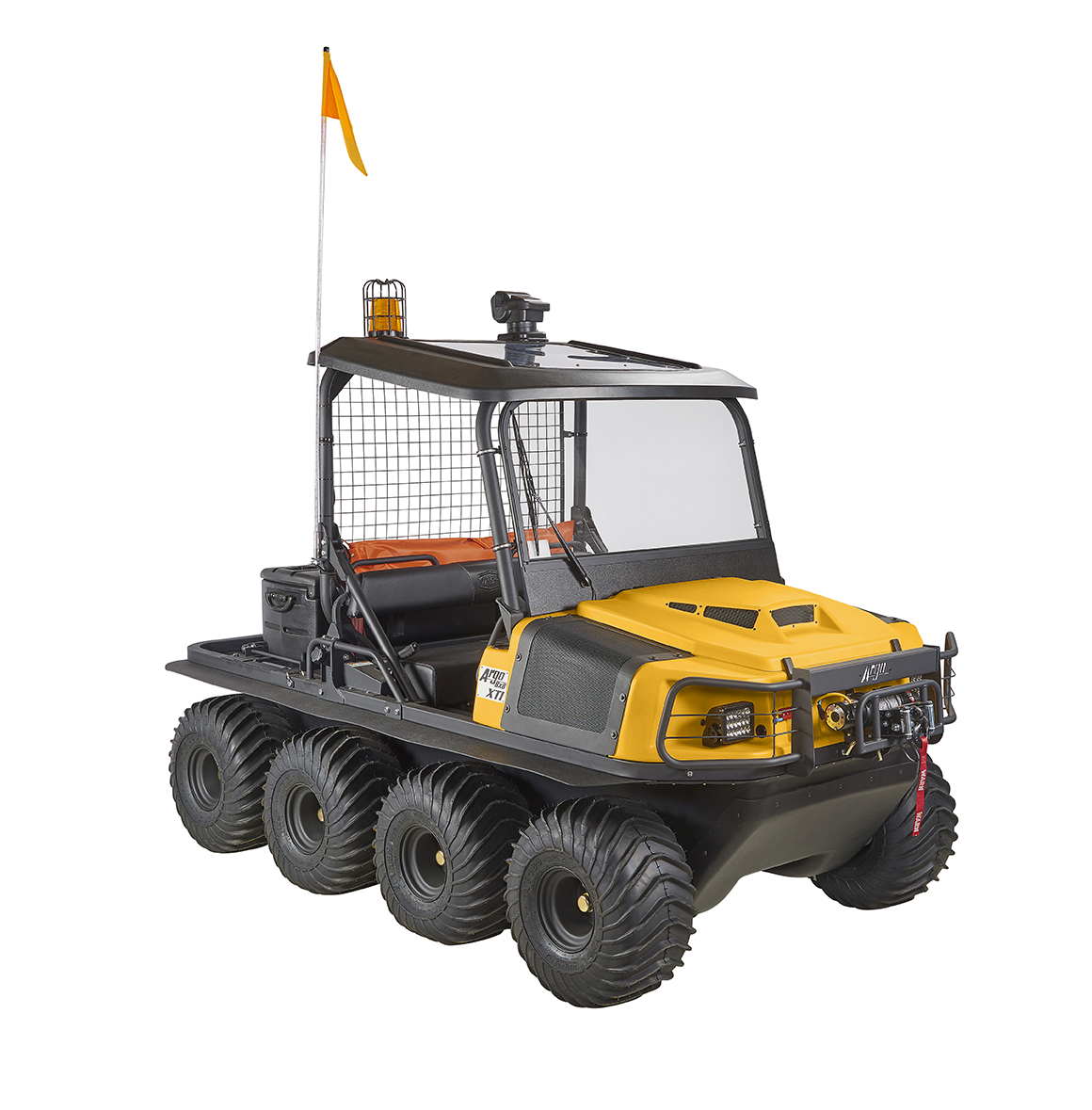

Conquest 8×8 Lineman XTi

Conquest 8×8 Lineman XTi

The Conquest 8×8 Lineman XTi has everything you need to get your job done as smoothly as possible. It’s powered by a 4-cycle OHV V-Twin gasoline EFI engine and can carry up to 1,000 lb. and 4 passengers. The 8X8 Lineman can tow up to 2,000 lb. and has an electronic ignition and liquid cooled Kohler Aegis LH 775 engine.

Conquest 8×8 Lineman XTi Overview

• 30HP Kohler Liquid Cooled Engine
• 25” Steel Rims
• Skid Plate
• Bilge Pump
• 4500lb Warn Winch
• Brushguard
• HD Drive Belt
• Alternator
• Rear Winch Receiver Wiring
• Auto Chain Lubrication System
• Lineman Package (Two-Person ROPS, Rear Mesh, Clear-View Roof, Windshield with Wiper, LED Headlights, Stretcher & Carry Bag, Spot Light, Flashing Light, Heated Hand Grips, Capstan Winch, Vice, Dry Storage Tote)
• Transmission Option: Admiral – STD (34-200-7.1)

Conquest 8×8 Lineman XTi Colors

Green_Yellow

Conquest 8×8 Lineman XTi Features

lineman

Conquest 8×8 Lineman XTi Specs

Engine Kohler Aegis ELH775
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 30
Displacement 747cc
Cooling Liquid Cooled
Alternator 60 amp
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Optional
Steering Multi-position, one-piece ergonomic handlebar steering control features hand brake. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with independent  High and Low range; Forward, Neutral, Reverse.
Transmission Options STD
Drive System Chains drive machined sprockets. 1 1/2″ diameter axle supported by dual tapper roller bearings in an aluminum housing. Axles are prefilled with gear oil for lubrication.
Final Drive RS60HT heavy duty roller chain with automatic, spring loaded tensioners.
HD Drive Belt Standard
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Standard
Winch 4,500 lb Warn Winch & Rear Receiver Winch Kit
Bilge Pump Standard
Load Capacity – On Land 1000 lb./454 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water Not Amphibious
Towing Capacity 2000 lb. / 907 kg
Seating Capacity 2 persons on land, 2 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 17 mph / 27 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 2100 lb. /953 kg
Axle Bearing Extensions Standard
Instrumentation Analog Gauge Cluster, Speedometer with digital odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure, fuel level guage, water temp. indicator and Parking Brake Reminder Lights, Check Engine Light
Entry Step
Tires ARGO AT189 25 x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9 inches – 230 mm
Ground Clearance Tracks 10 inches – 255 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

*subject to change without notice
