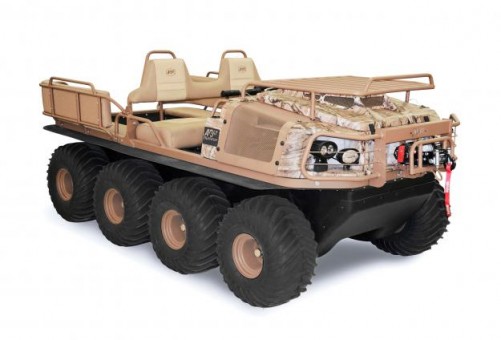

Designed to meet the specifications of hunt camp operators, lodge owners, and big game guides who traverse the world’s toughest terrain, the new ARGO Outfitter is a hunter’s dream come true.

8×8 Outfitter Overview

Bring along your friends, stack up your gear – the ARGO Outfitter lets you haul in heavy loads without leaving a heavy footprint. Big game hunters need big loading capacity to bring home their prize. The ARGO Outfitter will bring out animals of up to 1,000 lb (454 kg) so no matter what game is in season, the vehicle’s all-season mobility will get you there and back.

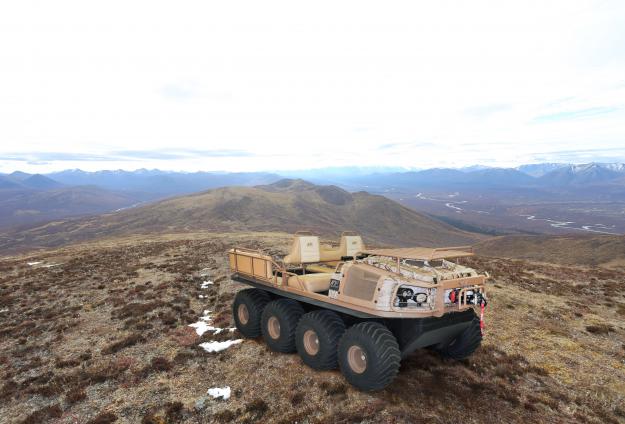

From the mountains and the marsh to the savanna and the tundra, explore new hunting grounds, secure in the knowledge that the ARGO Outfitter will get you and your trophies home safe.

8×8 Outfitter Colors

Infinity_Camo

8×8 Outfitter Features

Includes a number of unique features as standard equipment:
• 4,500 lb. WARN power winch

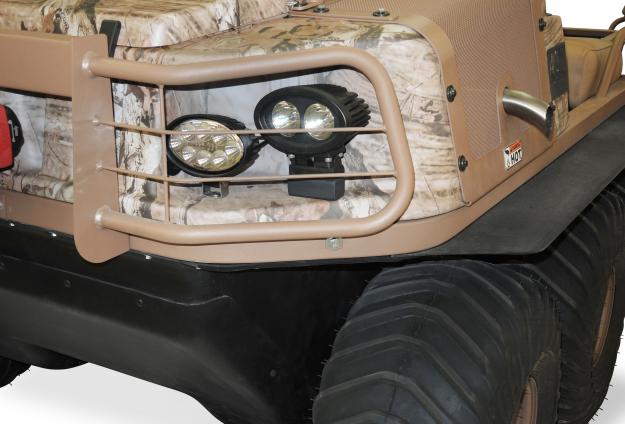

• Robust brush guard provides outstanding protection for the front end of the vehicle, absorbing impacts from off-road hazards such as brush, branches, and more
• Dual bilge pumps

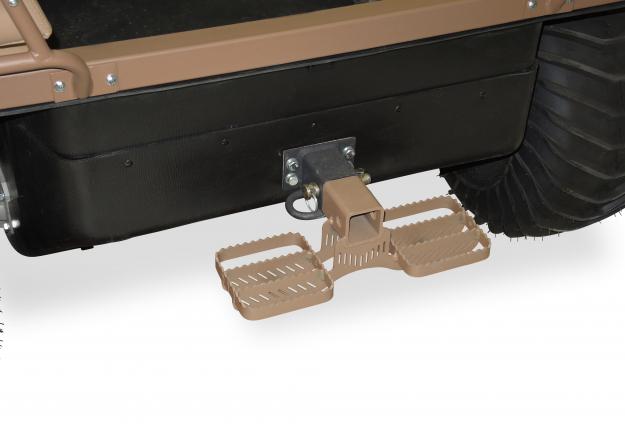

• Rear entry step to assist in vehicle entry and exit when loaded with gear, backpack and firearms
• Interior lighting package to illuminate front driving and passenger area and rear cargo area

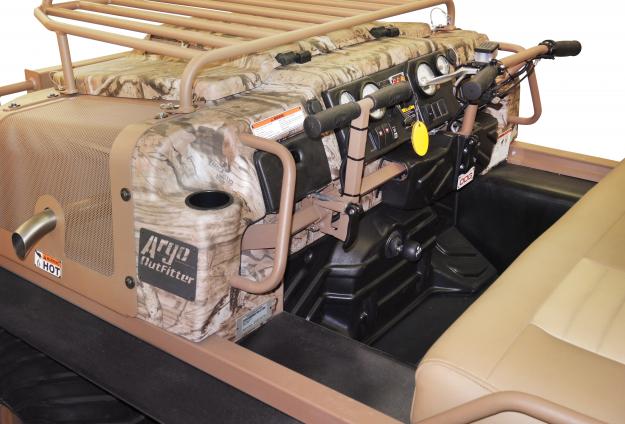

• Angle mounted four gun Sure Grip gun rack to ensure the safe transportation of firearms to the best hunting grounds
• 12V / Dual USB power outlet, for riders to charge their phones, play digital media and utilize their GPS

Includes a number of model specific accessories as part of the trim package:

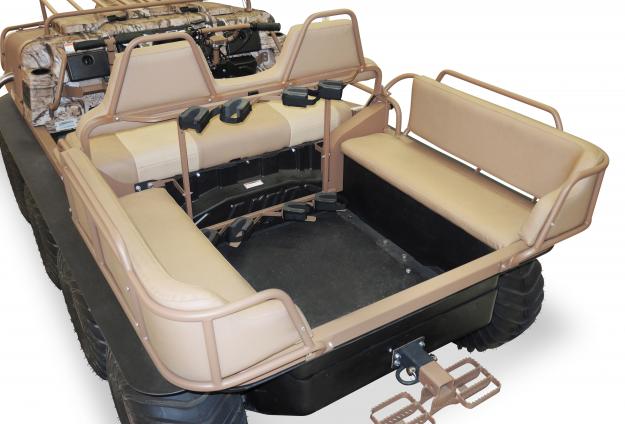

• Premium front and rear seat cushions as well as a front seat backrest pad featuring refined stitching and custom embossing of the ARGO logo

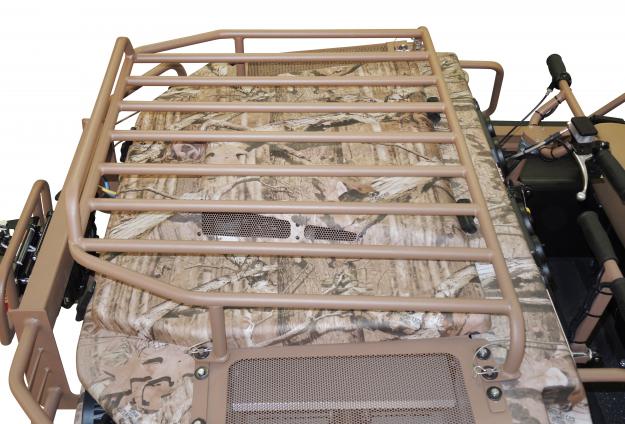

• Removable hood rack capable of carrying cargo and small game out of the bush
• Enhanced lighting package featuring dualhigh powered LED headlamps and floodlights
• Heated hand grips for both passenger and driver for those cold, longer days out in the bush
• High backrest for passenger comfort

All standard accessories compatible except:

• Windshield Wiper Kit (only able to secure in the fold down position when the hood rack is removed)
• ROPS-2 person, ROPS-4 person extension, Hard Top, Brakelights, Rear Bench Seat, Catwalk Mudflaps, Flatbed Platform
• Tire Holder and Gas Can Holder can be used if entry step and rear handrails are removed

8×8 Outfitter Specs

Engine  4 Cycle OHV V-Twin, petrol. 3 year engine warranty.
Model  Kohler Aegis LH 775
Horsepower  30 hp (23.1 kW)
Displacement  748cc
Cooling  Liquid cooled
Starting  Electric
Brakes  Hydraulically activated disc brakes
Steering  Multi-position, one-piece, ergonomic handlebar steering

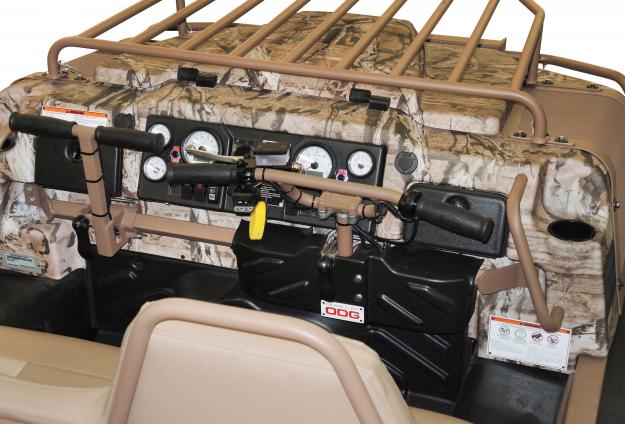

Controls  Centre mount, analog dash panel, tachometer with digital hour meter, speedometer with digital odometer, fuel gauge, volt meter, water temperature
Clutch  Continuously Variable Transmission (CVT) with heavy duty drive belt
Transmission  ADMIRAL triple differential steering transmission
Drive System  RS60HT heavy series roller chain connects 8 axles to the ADMIRAL transmission
Frame  Powder coated, 3″ tubular steel, welded construction
Body  Vacuum formed upper body, lower hull and skid plate formed from High Molecular Weight Polyethylene (HMWPE)
Full Skid Plate  Standard
Load Capacity – On Land  1275 lb. / 578 kg
Load Capacity – On Water  775 lb. / 351 kg
Towing Capacity  2000 lb. / 907 kg
Seating Capacity – On land   2 persons – 4 optional
Seating Capacity – On Water  2 persons
Fuel Capacity  9.5 US gallons (36 litres) providing 8 – 10 hours of operation
Speed (on land)  17 mph / 27 kph
Speed (on water)  3 mph / 5 kph
Shipping Weight  1,825 lb. / 828 kg
Axles  1.50″ (38 mm) diameter axles housed in an oil filled aluminum housing
Tires  ARGO AT189 25×12.00-9 NHS
Ground Pressure  Tires 7 psi (48.3 kPa) or less Optional 15″ track 1.82 psi (12.4 kPa) or less Optional 18″ track 1.0 psi (6.8 kPa) or less
Ground Clearance   9″ (228 mm) @ centre of vehicle
Operating Conditions  All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
