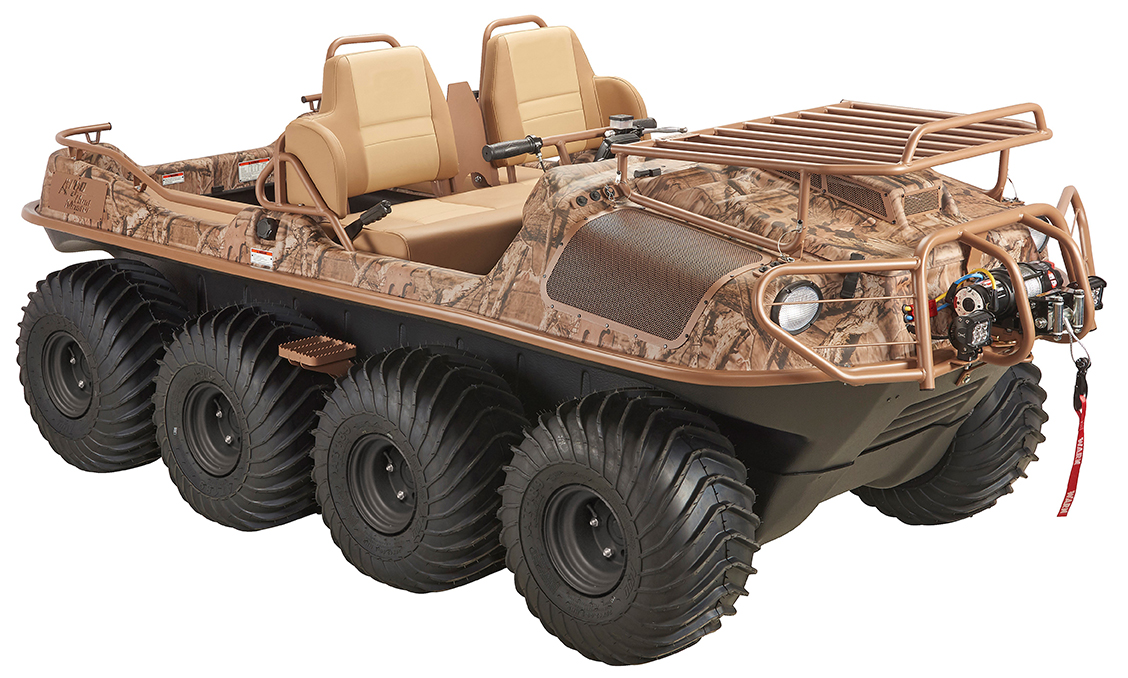

Avenger 8×8 Hunt Master

Avenger 8×8 Hunt Master

For the hunting enthusiast, it doesn’t get much better than the ARGO Avenger Hunt Master series. The Avenger 8×8 Hunt Master holds up to 6 passengers on land and 4 on the water with a load capacity of 935 lb. Powered by a liquid cooled 30 HP Kohler engine, the Avenger 8×8 Hunt Master also includes a brushguard to get you through underbrush and low branches.

Avenger 8×8 Hunt Master Overview

• 30HP Kohler Liquid Cooled Engine
• 25” Steel Off-Set Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Dual Side Entry Steps
• 3500 lb Warn Winch
• Brushguard
• HD Drive Belt
• Hunt Master Package (Premium Seats, Front Rack & Gun Rack, Handrails, Rear Receiver Winch Wiring, Fog Lights, Brake/Tail Lights)
• Transmission Options: Admiral – HT (34-200-8.1) and Admiral – STD (34-200-6.2)

Avenger 8×8 Hunt Master Colors

Infinity_Camo

Avenger 8×8 Hunt Master Features

hunt-master

Avenger 8×8 Hunt Master Specs

Engine Kohler Aegis ELH775
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 30
Displacement 747cc
Cooling Liquid Cooled
Alternator Optional
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Optional
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with independent  High and Low range; Forward, Neutral, Reverse.
Transmission Options STD or HT
Drive System Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings.
Final Drive RC50-2 and RC60 roller chain drive to all 8 axles
HD Drive Belt Standard
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Standard
Winch 3,500 lb Warn Winch & Rear Receiver Winch Kit
Bilge Pump Standard
Load Capacity – On Land 935 lb. /424 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water 785 lb. / 356 kg total
Towing Capacity 1800 lb. / 816 kg
Seating Capacity 6 persons on land, 4 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 20 mph / 32 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1465 lb. /665 kg
Axle Bearing Extensions Standard
Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Entry Step Dual Side Entry Steps
Tires ARGO AT189 25 x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

*subject to change without notice
