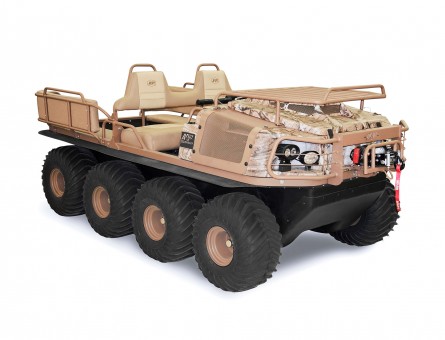

Conquest 8×8 Outfitter XTi-Z

Conquest 8×8 Outfitter XTi-Z

Powered by a 4-cycle OHV V-Twin gasoline EFI engine, the Conquest 8×8 Outfitter XTi-Z amphibious XTV is perfect for hunting on all terrain. It can carry up to 6 passengers on land with a load capacity of 1,190 lb. 2 can travel together on water and carry up to 690 lb. The Conquest 8×8 Outfitter XTi-Z has an electronic ignition, and its liquid cooled Kohler Aegis LH 775 engine has a towing capacity of 2,000 lb.

Conquest 8×8 Outfitter XTi-Z Overview

• 30HP Kohler Liquid Cooled Engine
• 25” Steel Rims
• Skid Plate
• Bilge Pump
• Entry Step
• 4500 lb Warn Winch
• Brushguard
• HD Drive Belt
• Alternator & Heater
• Auto Chain Lubrication System
• Outfitter Package (Premium Seats, Front Rack & Gun Rack, Rear Receiver Winch Wiring, LED Headlights, Heated Driver and Passenger Hand Grips)
• Transmission Option: Admiral – STD (34-200-7.1)

Conquest 8×8 Outfitter XTi-Z Colors

Infinity_Camo

Conquest 8×8 Outfitter XTi-Z Features

outfitter-xti-z

Conquest 8×8 Outfitter XTi-Z Specs

Engine Kohler Aegis ELH775
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 30
Displacement 747cc
Cooling Liquid Cooled
Alternator 60 amp
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Optional
Steering Multi-position, one-piece ergonomic handlebar steering control features hand brake. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with independent  High and Low range; Forward, Neutral, Reverse.
Transmission Options STD
Drive System Chains drive machined sprockets. 1 1/2″ diameter axle supported by dual tapper roller bearings in an aluminum housing. Axles are prefilled with gear oil for lubrication.
Final Drive RS60HT heavy duty roller chain with automatic, spring loaded tensioners.
HD Drive Belt Standard
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Standard
Winch 4,500 lb Warn Winch & Rear Receiver Winch Kit
Bilge Pump Standard
Load Capacity – On Land 1190 lb./540 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water 690 lb. / 313 kg total
Towing Capacity 2000 lb. / 907 kg
Seating Capacity 6 persons on land, 2 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 17 mph / 27 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1910 lb. /866 kg
Axle Bearing Extensions Standard
Instrumentation Analog Gauge Cluster, Speedometer with digital odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure, fuel level guage, water temp. indicator and Parking Brake Reminder Lights, Check Engine Light
Entry Step Optional
Tires ARGO AT189 25 x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9 inches – 230 mm
Ground Clearance Tracks 10 inches – 255 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

*subject to change without notice
