The Frontier 8×8 Responder S is built for search and rescue missions and emergency situations. It can seat up to 3 with the stretcher and 6 without. The 8×8 Responder S is powered by a 26 HP Kohler V-Twin engine and has a maximum load capacity of 790 lb.

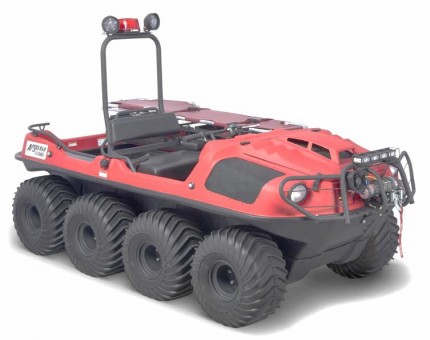

*Picture does not represent actual vehicle

Frontier 8×8 Responder S Overview

• 26HP Kohler Air Cooled Engine
• 25” Steel Off-Set Rims
• Skid Plate
• Bearing extensions
• Bilge Pump
• Entry Step
• 3500 lb Warn Winch
• Brushguard
• Brake Cooling Fan
• HD Drive Belt
• 1ST Responder Package (Rear Receiver Winch Kit, Brake/Tail Lights, Folding Seat, Stretcher Frame)
• Transmission Options: HT (34-100-3.3) and STD (34-100)

Frontier 8×8 Responder S Colors

Red_Orange

Frontier 8×8 Responder S Features

frontier-8x8-responder-s

Frontier 8×8 Responder S Specs

Engine Kohler Command Pro
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 26
Displacement 747cc
Cooling Air cooled
Service Brakes Mechanical
Steering Brakes Hydraulic
Brake Cooling Fan Standard
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission CLASSIC with High and Low range; Forward, Neutral, Reverse.
Transmission Options STD or HT
Drive System Chains drive machined sprockets. 1 1/4″ diameter axles with triple sealed greaseable outer bearings.
Final Drive RC50-2 and RC60 roller chain drive to all 8 axles
HD Drive Belt Standard
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Standard
Winch 3,500 lb Warn Winch
Bilge Pump Standard
Load Capacity – On Land 790 lb. /358 kg total
Load Capacity – Rear Compartment
Load Capacity – On Water 790 lb. / 358 kg total
Towing Capacity 1400 lb. / 544 kg
Seating Capacity 6 persons on land, 4 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 19 mph / 30 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1260 lb. / 572 kg
Axle Bearing Extensions Standard
Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Entry Step Standard
Tires ARGO AT189 25x 12.00-9NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C
Dimensions

*subject to change without notice
