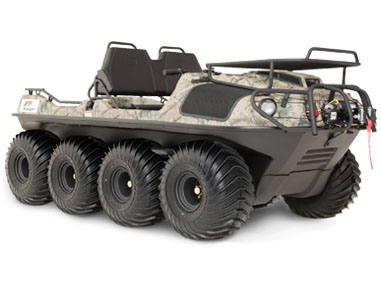

2018 Avenger 8×8 Huntmaster

2018 Avenger 8×8 Huntmaster

As part of Argo’s Wilderness series, this vehicle is equipped with everything you need for hunting and fishing including a brushguard, front cargo rack, gun rack and a body painted in Mossy Oak’s Break-Up Country or Shadow Grass Blades camouflage. A 30 HP Kohler Aegis V-twin, an Admiral transmission and either standard or high torque gearing, give the Huntmaster the power to tackle anything from mud bogs to mountains while carrying up to 935 lbs., towing up to 1,800 lbs. and carrying up to 6 passengers. This model is equipped with aluminum beadlock rims and a front-mounted 3,500 lb. Warn winch.

2018 Avenger 8×8 Huntmaster Overview

  • Engine – Kohler V-Twin, liquid cooled
    30 HP
  • Transmission (CLASSIC)
    N/A
  • Transmission (ADMIRAL)
    STD or HT
  • Tires – diameter (steel off-set rims)
    25″
  • Load capacity
    935 lb (424 kg)
  • Seating (on land/on water)
    6 / 4
  • Warn 3,500 lb. winch (front mounted)
    STD
  • Brushguard
    STD
  • Skid plate (full length)
    STD
  • Bilge pump
    STD
  • Entry step (single)
    STD
  • Brake cooling fan
    OPT-DLR
  • Axle Bearing Extensions
    STD

2018 Avenger 8×8 Huntmaster Colors

  • Camouflage
  • Camouflage

2018 Avenger 8×8 Huntmaster Specs

  • Engine
    Kohler Aegis
  • Engine Warranty
    3 year
  • Engine Type
    4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
  • Horsepower
    30
  • Displacement
    747 cc
  • Cooling
    Liquid Cooled
  • Alternator
    Optional
  • Service Brakes
    Hydraulic
  • Steering Brakes
    Hydraulic
  • Brake Cooling Fan
    Optional
  • Steering
    One-piece, ergonomic handlebar. Steering control features hand brake. For safety and ease of handling, the Argo steering transmission provides continuous torque to all axels.
  • Controls
    Right-hand twist grip throttle. Dash mounted light and ignition switch.
  • Clutch
    Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Transmission
    Admiral
  • Transmission Option
    STD or HT
  • Drive System
    Chain drive to machined sprockets. 1 3/8” diameter axles with triple sealed greaseable outer bearings
  • Final Drive
    RC50-2 and RC60 roller chain drive to all 8 axles
  • HD Drive Belt
    Standard
  • Frame
    Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
  • Body
    Vacuum formed High Molecular Weight Polyethylene (HMWPE) one-piece lower body.
  • Full Skid Plate
    Standard
  • Brushguard
    Standard
  • Winch
    3,500 lb. Warn Winch
  • Bilge Pump
    Standard
  • Load Capacity – Land
    935 lb. (424 kg)
  • Load Capacity – Rear Compartment
    —–
  • Load Capacity – Water
    785 lb. (356 kg)
  • Towing Capacity
    1,800 lb. (816 kg)
  • Seating Capacity – Land
    6
  • Seating Capacity – Water
    4
  • Fuel Capacity
    7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
  • Speed – Land
    20 mph (32 km/h)
  • Speed – Water
    3 mph (5 km/h)
  • Shipping Weight
    1,465 lb. (665 kg)
  • Length
    124 in (3,150 mm)
  • Width
    60 in (1,524 mm)
  • Height
    52 in (1,321 mm)
  • Axle Bearing Extensions
    Standard
  • Instrumentation
    LCD Digital Gauge Cluster: Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer. Low Oil Pressure, Check Engine and Parking Brake Reminder Lights
  • Entry Step
    Dual Side Entry Steps
  • Tires
    Argo AT189 25×12.00-9 NHS
  • Ground Pressure
    2.5 psi (17.2 kPa) using tires
  • Ground Clearance (Tires)
    9.5 in (241 mm)
  • Ground Clearance (Tracks)
    10.5 in (267 mm)
  • Operating Conditions
    All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
  • Warranty
    1 Year
