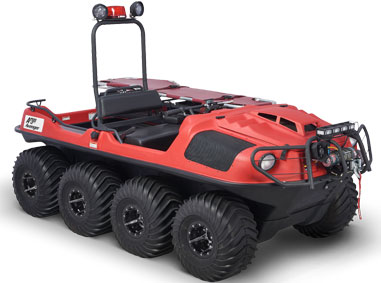

2018 Avenger 8×8 Responder

2018 Avenger 8×8 Responder

Designed to be used primarily by emergency services, this model is equipped with a rear-loading stretcher mount and options for additional medical equipment for first response and search and rescue operations or a fire suppression system for fighting fires in remote areas. This model has a maximum payload of 950 lbs. and can carry up to 6 people with the stretcher folded, or three people with the stretcher in use. It’s equipped with an Admiral transmission paired with a standard final drive for flat terrain or high torque final drive for climbing steep terrain. The 3,500 lb. Warn winch can be attached to the front or rear of the XTV to help extract equipment and victims, while cargo capacity can be expanded by taking advantage of its 1,800 lb. towing capacity.

2018 Avenger 8×8 Responder Overview

  • Engine – Kohler V-Twin, liquid cooled
    30 HP
  • Transmission (CLASSIC)
    N/A
  • Transmission (ADMIRAL)
    STD or HT
  • Tires – diameter (steel off-set rims)
    25″
  • Load capacity
    950 lb. (431 kg)
  • Seating (on land/on water)
    6 / 4
  • Warn 3,500 lb. winch (front mounted)
    STD
  • Brushguard
    STD
  • Skid plate (full length)
    STD
  • Bilge pump
    STD
  • Entry step (single)
    STD
  • Brake cooling fan
    OPT-DLR
  • Axle Bearing Extensions
    STD

2018 Avenger 8×8 Responder Colors

  • Red

2018 Avenger 8×8 Responder Specs

  • Engine
    Kohler Aegis
  • Engine Warranty
    3 year
  • Engine Type
    4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
  • Horsepower
    30
  • Displacement
    747 cc
  • Cooling
    Liquid Cooled
  • Alternator
    Standard
  • Service Brakes
    Hydraulic
  • Steering Brakes
    Hydraulic
  • Brake Cooling Fan
    Optional
  • Steering
    Multi position, One-piece.
  • Controls
    Right-hand twist grip throttle. Dash mounted light and ignition switch.
  • Clutch
    Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Transmission
    Admiral
  • Transmission Option
    STD or HT
  • Drive System
    Chain drive to machined sprockets. 1 3/8” diameter axles with triple sealed greaseable outer bearings.
  • Final Drive
    RC50-2 and RC60 roller chain drive to all 8 axles
  • HD Drive Belt
    Standard
  • Frame
    Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
  • Body
    Vacuum formed High Molecular Weight Polyethylene (HMWPE) one-piece lower body.
  • Full Skid Plate
    Standard
  • Brushguard
    Standard
  • Winch
    3,500 lb. Warn Winch & Rear Receiver Winch Kit
  • Bilge Pump
    Standard
  • Load Capacity – Land
    950 lb. (431 kg)
  • Load Capacity – Rear Compartment
    —–
  • Load Capacity – Water
    800 lb. (363 kg)
  • Towing Capacity
    1,800 lb. (816 kg)
  • Seating Capacity – Land
    6
  • Seating Capacity – Water
    4
  • Fuel Capacity
    7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
  • Speed – Land
    20 mph (32 km/h)
  • Speed – Water
    3 mph (5 km/h)
  • Shipping Weight
    1,450 lb. (658 kg)
  • Length
    124 in (3,150 mm)
  • Width
    60 in (1,524 mm)
  • Height
    46 in (1,169 mm)
  • Axle Bearing Extensions
    Standard
  • Instrumentation
    LCD Digital Gauge Cluster: Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer. Low Oil Pressure, Check Engine and Parking Brake Reminder Lights
  • Entry Step
    Standard
  • Tires
    Argo AT189 25×12.00-9 NHS
  • Ground Pressure
    2.5 psi (17.2 kPa) using tires
  • Ground Clearance (Tires)
    9.5 in (241 mm)
  • Ground Clearance (Tracks)
    10.5 in (267 mm)
  • Operating Conditions
    All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
  • Warranty
    1 Year
