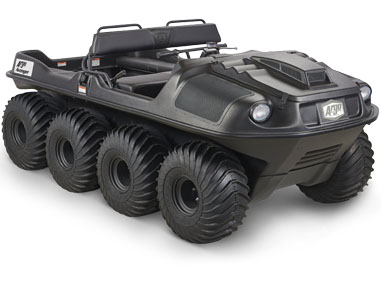

2018 Avenger 8×8 ST

2018 Avenger 8×8 ST

This entry in the Avenger line comes with minimal equipment to provide maximum cargo capacity: it can carry up to 1,070 lbs., tow up to 1,800 lbs. and seat up to 6 people. It’s powered by a 30 HP water-cooled Kohler Aegis V-twin coupled to an Admiral transmission, offering brake steering that provides precise steering control while maintaining a turning radius that’s the length of the vehicle. It can be equipped with either a standard final drive gear for a higher top speed or high torque final drive to provide more power for climbing steep terrain and carrying heavy loads. The ST model is available in green or black.

2018 Avenger 8×8 ST Overview

  • Engine – Kohler V-Twin, liquid cooled
    30 HP
  • Transmission (CLASSIC)
    N/A
  • Transmission (ADMIRAL)
    STD or HT
  • Tires – diameter (steel off-set rims)
    25″
  • Load capacity
    1070 lb (485 kg)
  • Seating (on land/on water)
    6 / 4
  • Warn 3,500 lb. winch (front mounted)
    STD
  • Brushguard
    OPT-DLR
  • Skid plate (full length)
    STD
  • Bilge pump
    STD
  • Entry step (single)
    STD
  • Brake cooling fan
    OPT-DLR
  • Axle Bearing Extensions
    STD

2018 Avenger 8×8 ST Colors

  • Black
  • Green

2018 Avenger 8×8 ST Specs

  • Engine
    Kohler Aegis
  • Engine Warranty
    3 year
  • Engine Type
    4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
  • Horsepower
    30
  • Displacement
    747 cc
  • Cooling
    Liquid Cooled
  • Alternator
    Optional
  • Service Brakes
    Hydraulic
  • Steering Brakes
    Hydraulic
  • Brake Cooling Fan
    Optional
  • Steering
    One-piece, ergonomic handlebar. Steering control features hand brake. For safety and ease of handling, the Argo steering transmission provides continuous torque to all axels.
  • Controls
    Right-hand twist grip throttle. Dash mounted light and ignition switch.
  • Clutch
    Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Transmission
    Admiral
  • Transmission Option
    STD or HT
  • Drive System
    Chain drive to machined sprockets. 1 3/8” diameter axles with triple sealed greaseable outer bearings
  • Final Drive
    RC50-2 and RC60 roller chain drive to all 8 axles
  • HD Drive Belt
    Optional
  • Frame
    Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
  • Body
    Vacuum formed High Molecular Weight Polyethylene (HMWPE) one-piece lower body.
  • Full Skid Plate
    Standard
  • Brushguard
    Optional
  • Winch
    Optional
  • Bilge Pump
    Standard
  • Load Capacity – Land
    1,070 lb. (485 kg)
  • Load Capacity – Rear Compartment
    —–
  • Load Capacity – Water
    920 lb. (417 kg)
  • Towing Capacity
    1,800 lb. (816 kg)
  • Seating Capacity – Land
    6
  • Seating Capacity – Water
    4
  • Fuel Capacity
    7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
  • Speed – Land
    20 mph (32 km/h)
  • Speed – Water
    3 mph (5 km/h)
  • Shipping Weight
    1,330 lb. (603 kg)
  • Length
    119 in (3,023 mm)
  • Width
    60 in (1,524 mm)
  • Height
    46 in (1,169 mm)
  • Axle Bearing Extensions
    Standard
  • Instrumentation
    LCD Digital Gauge Cluster: Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer. Low Oil Pressure, Check Engine and Parking Brake Reminder Lights
  • Entry Step
    Standard
  • Tires
    Argo AT189 25×12.00-9 NHS
  • Ground Pressure
    2.5 psi (17.2 kPa) using tires
  • Ground Clearance (Tires)
    9.5 in (241 mm)
  • Ground Clearance (Tracks)
    10.5 in (267 mm)
  • Operating Conditions
    All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
  • Warranty
    1 Year
