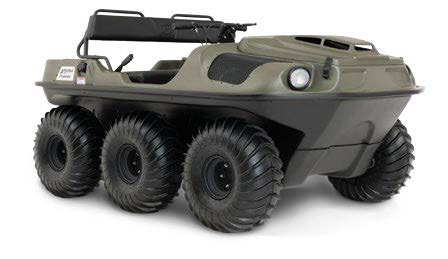

2018 Frontier 6×6 SE

2018 Frontier 6×6 SE

Argo’s base model XTV has been updated this year, adding a full-length skid plate, axle extensions and bilge pump as standard equipment. It comes with a fuel-injected 23 HP Kohler Command Pro V-twin that sends power to all six wheels all the time for maximum off-road traction. Maximum payload for the SE is 640 lbs., towing capacity is 1,200 lbs. and there’s seating for up to four people. This model is available in green or black.

2018 Frontier 6×6 SE Overview

  • Engine – Kohler V-Twin, liquid cooled
    23 HP
  • Transmission (CLASSIC)
    STD
  • Transmission (ADMIRAL)
    N/A
  • Tires – diameter (steel off-set rims)
    24”
  • Load capacity
    640lb (290 kg)
  • Seating (on land/on water)
    4 / 2
  • Warn 3,500 lb. winch (front mounted)
    OPT-DLR
  • Brushguard
    OPT-DLR
  • Skid plate (full length)
    STD
  • Bilge pump
    OPT-DLR
  • Entry step (single)
    OPT-DLR
  • Brake cooling fan
    OPT-DLR
  • Axle Bearing Extensions
    STD

2018 Frontier 6×6 SE Colors

  • Green
  • Black

2018 Frontier 6×6 SE Specs

  • Engine
    Kohler Command Pro
  • Engine Warranty
    3 year
  • Engine Type
    4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
  • Horsepower
    23
  • Displacement
    747 cc
  • Cooling
    Air Cooled
  • Alternator
    —–
  • Service Brakes
    Mechanical
  • Steering Brakes
    Hydraulic
  • Brake Cooling Fan
    Optional
  • Steering
    One-piece, ergonomic handlebar. Steering control features hand brake. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axels.
  • Controls
    Right-hand twist grip throttle. Dash mounted light and ignition switch.
  • Clutch
    Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Transmission
    Classic
  • Transmission Option
    STD
  • Drive System
    Chain drive to machined sprockets. 1 1/4” diameter axles with triple sealed greaseable outer bearings.
  • Final Drive
    RC60 roller chain drive to all 6 axles.
  • HD Drive Belt
    Optional
  • Frame
    Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
  • Body
    Vacuum formed High Molecular Weight Polyethylene (HMWPE) on-piece lower body.
  • Full Skid Plate
    Standard
  • Brushguard
    Optional
  • Winch
    Optional
  • Bilge Pump
    Standard
  • Load Capacity – Land
    640 lb. (290 kg)
  • Load Capacity – Rear Compartment
    140 lb. (64 kg)
  • Load Capacity – Water
    440 lb. (200 kg)
  • Towing Capacity
    1,200 lb. (544 kg)
  • Seating Capacity – Land
    4
  • Seating Capacity – Water
    2
  • Fuel Capacity
    7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
  • Speed – Land
    22 mph (35 km/h)
  • Speed – Water
    3 mph (5 km/h)
  • Shipping Weight
    910 lb. (413 kg)
  • Length
    95 in (2,413 mm)
  • Width
    58 in (1,473 mm)
  • Height
    45.8 in (1,163 mm)
  • Axle Bearing Extensions
    Standard
  • Instrumentation
    LCD digital gauge cluster: speedometer, odometer, voltmeter, hour meter, tachometer, low oil pressure, parking brake reminder lights and check engine light.
  • Entry Step
    Standard
  • Tires
    Argo AT189 24×10.0-8 NHS
  • Ground Pressure
    2.5 psi (17.2 kPa) using tires
  • Ground Clearance (Tires)
    9.5 in (241 mm)
  • Ground Clearance (Tracks)
    10.5 in (267 mm)
  • Operating Conditions
    All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
  • Warranty
    1 Year
