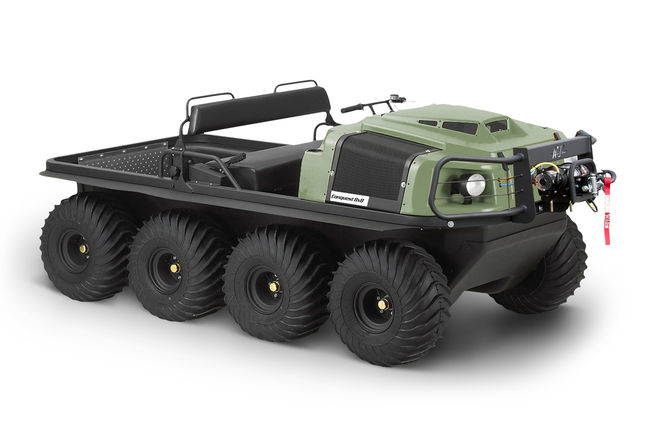

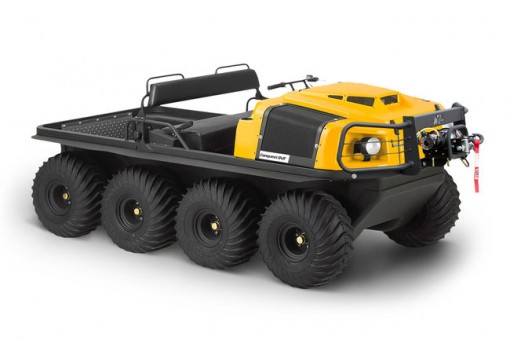

2019 Conquest Pro 1050 XT-D

2019 Conquest Pro 1050 XT-D

This model is powered by a 24 hp three cylinder liquid-cooled diesel, providing maximum torque and simplifying fuel logistics when working in remote areas. An Admiral HT transmission comes standard, giving the XT-D a top speed of 17 mph. This two seater can carry up to 1,350 lbs. on land and 715 lbs. on water. Maximum towing payload is 2,000 lbs. Standard equipment includes a 4,500 lb. Warn winch, steel beadlock rims, a brush guard and a front cargo rack. This model is available in industrial yellow and green.

2019 Conquest Pro 1050 XT-D Overview

  • 24HP Three Cylinder Liquid Cooled Diesel
  • Admiral Standard Torque Transmission
  • Steel Bead Lock Rims with 25” tires
  • 4500 lb. winch with steel cable
  • Front Brushguard
  • Auto chain lubrication
  • Colors: Industrial Yellow or Green

2019 Conquest Pro 1050 XT-D Colors

swatch-yellow swatch-tundra-green

2019 Conquest Pro 1050 XT-D Specs

HORSEPOWER 24HP
CYLINDER TRIPLE
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 65 AMP
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
TRANSMISSION ADMIRAL
TRANSMISSION OPTION HT
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH – FRONT 4,500 LB. WARN WINCH
WINCH – REAR RECEIVER KIT STANDARD
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 1,350 LB. (612 KG)
LOAD CAPACITY – WATER 715 LB. (324 KG)
TOWING CAPACITY 2,000 LB. (907 KG)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER 2
FUEL CAPACITY 9.5 US GALLONS 36 LITRES)
SPEED – LAND 17 MPH (27 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1,885 LB. (855 KG)
LENGTH 132 IN (3,353 MM)
WIDTH 65 IN (1,651 MM)
HEIGHT 53 IN (1,245 MM)
AXLE BEARING EXTENSIONS STANDARD
TIRES ARGO XT 117 25X12-9
RIMS STEEL BEAD LOCK
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.0 IN (229 MM)
GROUND CLEARANCE (TRACKS) 10.0 IN (254 MM)
WARRANTY 1 YEAR
COLORS INDUSTRIAL YELLOW/GREEN
