2021 CONQUEST 800 OUTFITTER 8X8

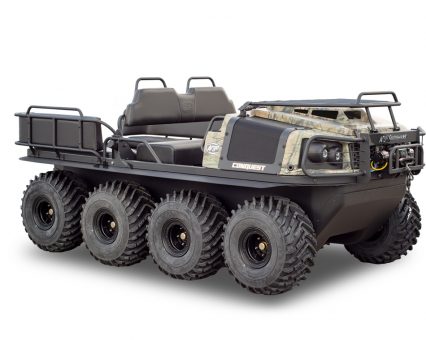

Argo Conquest Pro Outfitter 800 8x8 Camo

2021 CONQUEST 800 OUTFITTER 8X8

Want to be thoroughly outfitted for adventure in the wilderness? With this Argo Conquest 800 Outfitter, you’ll be outfitted alright. You can check out all the professional-grade specs in the info tabs below, but we’ll point out a few here just because they’re so outstanding. A powerful 30 HP V-twin EFI liquid-cooled engine. High-torque Argo Admiral transmission. Steel AirLock rims. Eight big tires (of course). A hefty brushguard mounted on the front, along with a 4,500 lb. winch. Elegant camo body styling for entering the authentic wilderness authentically. A new dash with a premium multi-functional guage. And lots and lots of Argo go-anywhere capability.

2021 CONQUEST 800 OUTFITTER 8X8 Overview

  • 800 Series (30HP EFI liquid-cooled) V-Twin Engine
  • Admiral High Torque Transmission
  • New 25" XT119 Tires
  • 9" AirLock™ Steel Rims
  • Rear Side Seats
  • Front Flat Floor
  • Auto Chain Lubrication
  • New Dual Hi/Low Projector Beam Headlights
  • New Dash with Multi-Functional Gauge
  • Brushguard with 4500 lb Winch
  • Front Rack
  • Premium HDPE Body Plastics
  • Camo designs: Shadow Grass or Breakup Country

2021 CONQUEST 800 OUTFITTER 8X8 Colors

  • Shadow Grass Camo
  • Breakup Country Camo

2021 CONQUEST 800 OUTFITTER 8X8 Specs

DISPLACEMENT 747 cc
CYLINDER V-Twin
FUEL SYSTEM EFI
COOLING Liquid Cooled
ALTERNATOR OUTPUT (MAX) 60 amp
HP 30HP
RIMS Steel AirLock
TIRES Argo XT119 25×12-9
GROUND PRESSURE – TIRES 1.7 psi (13.5 kPa)
GROUND PRESSURE – TRACKS 1.06 psi (7.3 kPa)
GROUND CLEARANCE – TIRES 10.0 in (254mm)
GROUND CLEARANCE – TRACKS 11.0 in (279 mm)
TRANSMISSION Admiral
TRANSMISSION OPTION ST
HD DRIVE BELT Standard
SERVICE BRAKES Hydraulic
STEERING BRAKES Hydraulic
AUTO CHAIN LIUBRICATION Standard
LENGTH 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 53 in (1,346 mm)
LOAD CAPACITY – LAND 1,163 lb. (528 kg)
LOAD CAPACITY WATER 463 lb. (210 kg)
TOWING CAPACITY 2,000 lb. (907 kg)
WEIGHT 1,923 lb. (872 kg)
FUEL CAPACITY 9.5 US gallons (36 litres)
SEAT CAPACITY 6 Land / 2 Water
FRONT RACK Standard
SPEED ON LAND (HT) 17 mph (27 km/h)
SPEED ON WATER 3 mph (5 km/h)
BRUSHGUARD Standard
WINCH 4,500 lb. WARN Winch
SKID PLATE Standard
BILGE PUMP Standard
AXLE BEARING EXTENSIONS Standard
ENTRY STEP Dual Rear Entry Steps
OPERATING CONDITIONS All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
AVAILABLE COLORS Breakup Country Camo / Shadow Grass Camo
