2023 Aurora 800

2023 Aurora 800

The Aurora 800 XTV can hardly be overstated. The Aurora series is the premium Argo platform. This is Argo brains and brawn all in one dazzling machine. The Aurora 800 is powered by a liquid-cooled KX 800 V-Twin engine and glides on eight low-pressure 25″ tires. Agility of movement is controlled through the Argo Admiral Transmission. Do not overlook the fact that this Argo is amphibious operation-ready. For help with not overlooking or understating anything, get in touch with someone from our friendly Shanks Argo team today!

2023 Aurora 800 Overview

  • KX 800 V-Twin Engine
  • ODG Admiral Transmission
  • ARGO Progressive Steering (APS)
  • Instant Torque Clutch (ITC)
  • 25″ Tires
  • 9″ AirLock™ Steel Rims
  • Side Seats
  • Front & Rear Flat Floor with Rubber Mats
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Hi-Vis LED Taillights
  • Heat-Reflective Firewall
  • Premium HDPE Body Plastics
  • Colors: Green, Black, Orange

2023 Aurora 800 Colors

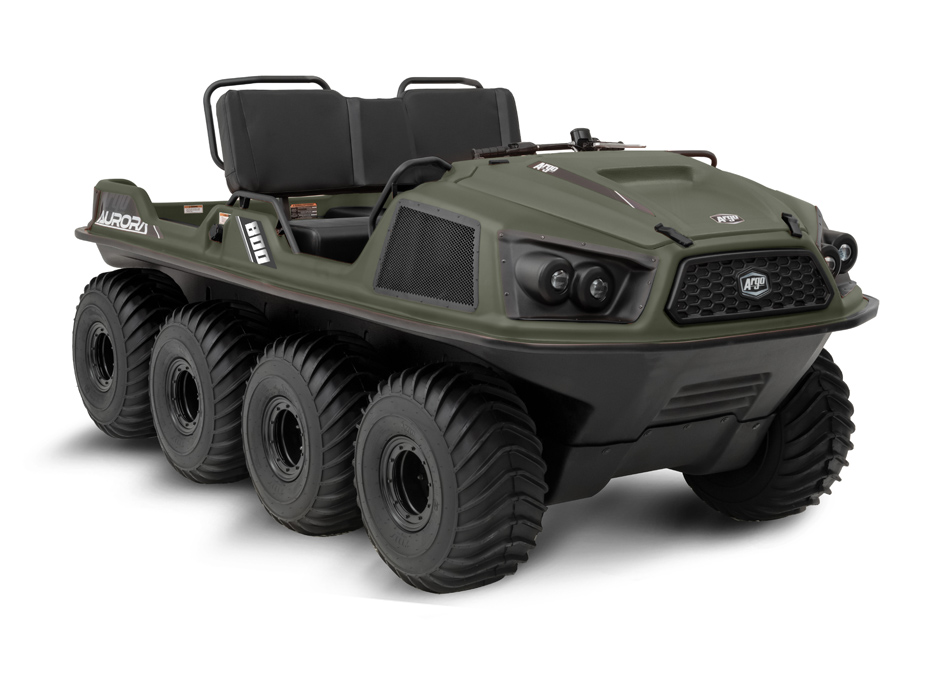

  • Green
  • Black

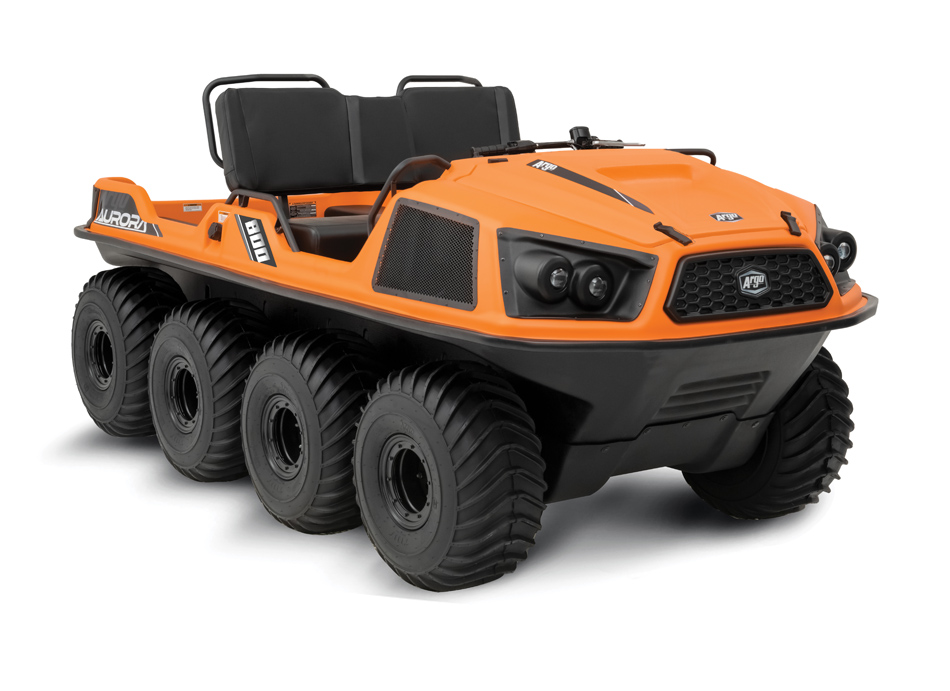

  • Orange

2023 Aurora 800 Specs

ENGINE KX 800
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 40 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION ACCESSORY
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL W/APS
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD ACCESSORY
WINCH ACCESSORY
FRONT RACK ACCESSORY
CARGO BOX ACCESSORY
BILGE PUMP STANDARD
ROPS ACCESSORY
STRETCHER FRAME ACCESSORY
REAR MESH N/A
ROOF N/A
POWER DUMP BOX N/A
LOAD CAPACITY – LAND 1,010 lb (458 kg)
LOAD CAPACITY – WATER 810 lb (367 kg)
TOWING CAPACITY 1,800 lb (816 kg)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 16 mph (26 Km/h)
SPEED – WATER 3 mph (5 Km/h)
WEIGHT 1,540 lb (699 kg)
LENGTH (includes winch when standard) 119 in (3,023 mm)
WIDTH 60 in (1,524 mm)
HEIGHT 51 in (1,295 mm)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP ACCESSORY
TIRES ARGO XT117 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 0.88 psi (6.1 kPa)
GROUND CLEARANCE (TIRES) 10 in (254 mm)
GROUND CLEARANCE (TRACKS) 11 in (279 mm)
WARRANTY 1 YEAR
COLORS GREEN, BLACK, ORANGE
