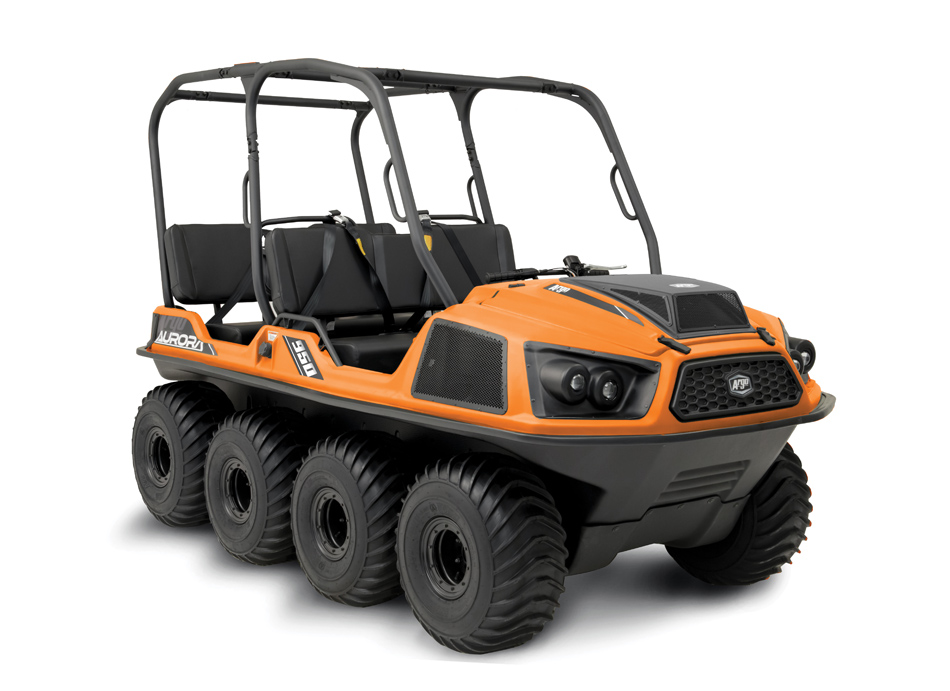

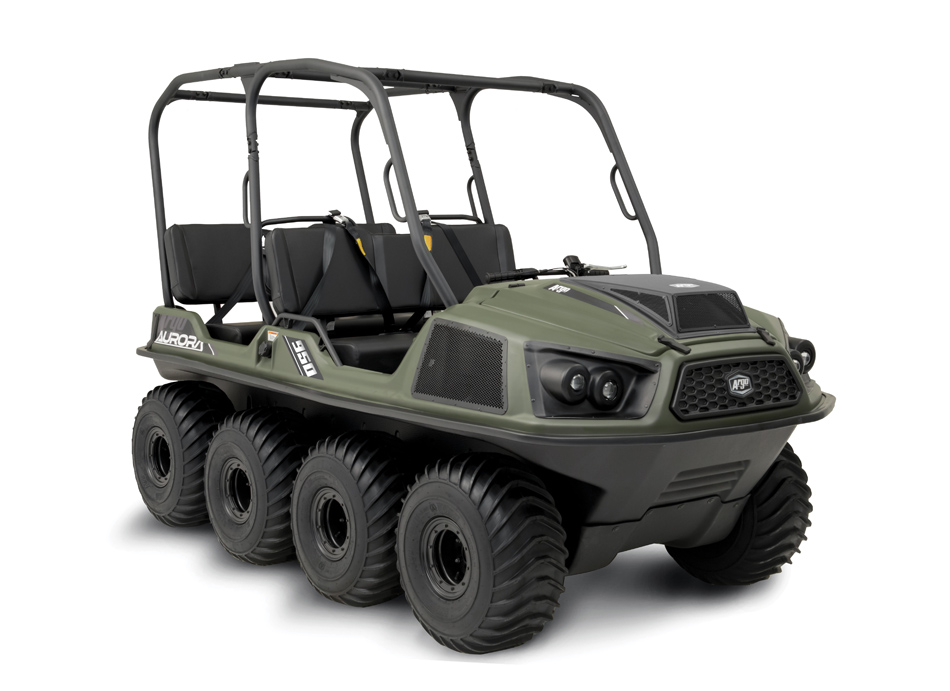

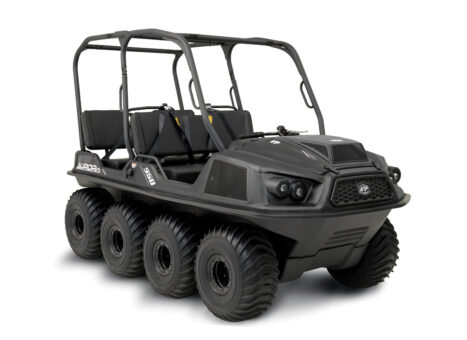

2023 Aurora 950 R

2023 Aurora 950 R

This Argo XTV is identical to the Aurora 950, except that it features an overhead Roll-Over Protective Structure for added safety. The big VX 950 engine is the same, the smooth-maneuvering Admiral Transmission (with APS) is the same, the big 25 inch tires are the same, and the outstanding amphibious body design is the same. As part of the magnificent Argo family, even the name is the same! Check out additional specs below.

2023 Aurora 950 R Overview

  • VX 950 V-Twin Engine
  • ODG Admiral Transmission
  • ARGO Progressive Steering (APS)
  • Instant Torque Clutch (ITC)
  • 25″ Tires
  • 9″ AirLock™ Steel Rims
  • Side Seats
  • Front & Rear Flat Floor with Rubber Mats
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Hi-Vis LED Taillights
  • Heat-Reflective Firewall
  • Roll-Over Protection Structure (ROPS)
  • Premium HDPE Body Plastics
  • Colors: Green, Black, Orange

2023 Aurora 950 R Colors

  • Green
  • Black
  • Orange

2023 Aurora 950 R Specs

ENGINE VX 950
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 50 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION ACCESSORY
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL W/APS
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD ACCESSORY
WINCH ACCESSORY
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME ACCESSORY
REAR MESH N/A
ROOF N/A
POWER DUMP BOX N/A
LOAD CAPACITY – LAND 850 lb (386 kg)
LOAD CAPACITY – WATER 650 lb (295 kg)
TOWING CAPACITY 1,800 lb (816 kg)
SEATING CAPACITY – LAND 4
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 25 mph (40 Km/h)
SPEED – WATER N/A
WEIGHT 1,700 lb (771 kg)
LENGTH (includes winch when standard) 119 in (3,023 mm)
WIDTH 60 in (1,524 mm)
HEIGHT 77 in (1,956 mm)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP ACCESSORY
TIRES ARGO XT117 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 0.88 psi (6.1 kPa)
GROUND CLEARANCE (TIRES) 10 in (254 mm)
GROUND CLEARANCE (TRACKS) 11 in (279 mm)
WARRANTY 1 YEAR
COLORS GREEN, BLACK, ORANGE
