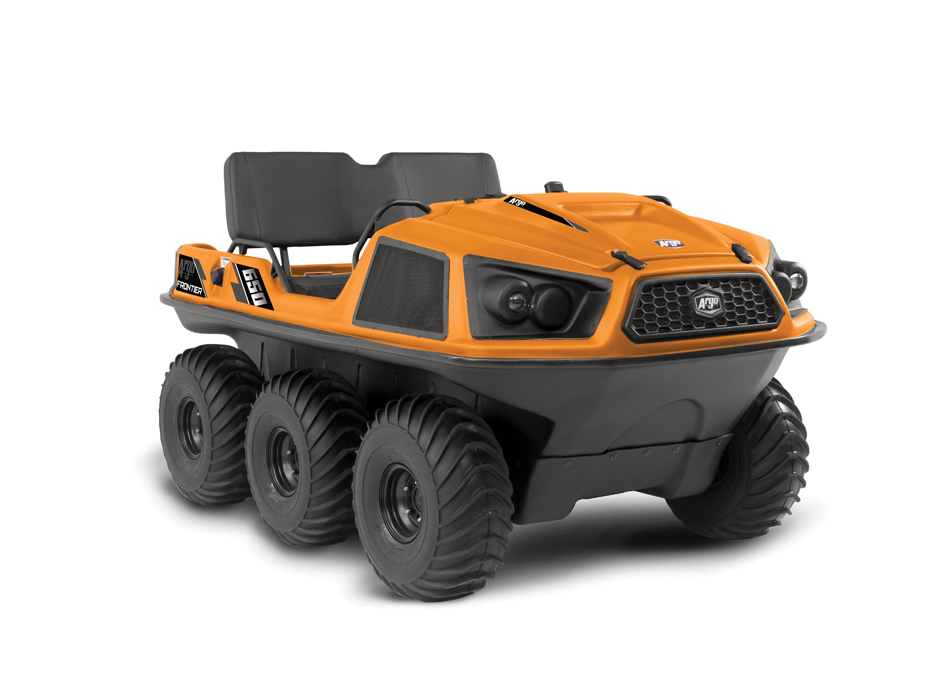

This Argo belongs to the compact Frontier series. Yet although it rolls on 6 wheels rather than 8 like some of its bigger brothers, this is one daring XTV. Built with a full underbody skid plate, bilge pump, and everything else that a fully amphibious vehicle needs, this Frontier 6×6 throbs with a heart of Argo yet is priced to fit every budget. Check out all the details and specs below, or get in touch with the friendly guys at Shank’s Argo to learn more!
| ENGINE | VX 650 |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | CARBURETOR |
| COOLING | FAN COOLED |
| ALTERNATOR OUTPUT (MAX) | 16 AMPS |
| SERVICE BRAKES | HYDRAULIC |
| STEERING BRAKES | HYDRAULIC |
| AUTO CHAIN LUBRICATION | NA |
| BRAKE COOLING FAN | ACCESSORY |
| TRANSMISSION | ODG CLASSIC W/APS |
| DRIVE BELT | STANDARD |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | ACCESSORY |
| WINCH | ACCESSORY |
| FRONT RACK | ACCESSORY |
| CARGO BOX | N/A |
| BILGE PUMP | STANDARD |
| ROPS | N/A |
| STRETCHER FRAME | N/A |
| REAR MESH | N/A |
| ROOF | N/A |
| POWER DUMP BOX | N/A |
| LOAD CAPACITY – LAND | 570 lb (258 kg) |
| LOAD CAPACITY – WATER | 370 lb (168 kg) |
| TOWING CAPACITY | 1,200 lb (544 kg) |
| SEATING CAPACITY – LAND | 4 |
| SEATING CAPACITY – WATER | 2 |
| FUEL CAPACITY | 8.5 gal (32 L) |
| SPEED – LAND | 22 mph (35 Km/h) |
| SPEED – WATER | 3 mph (5 Km/h) |
| WEIGHT | 970 lb (440 kg) |
| LENGTH (includes winch when standard) | 96 in (2,439 mm) |
| WIDTH | 58 in (1,473 mm) |
| HEIGHT | 51 in (1,295 mm) |
| AXLE BEARING EXTENSIONS | N/A |
| ENTRY STEP | ACCESSORY |
| TIRES | ARGO XT115 24X10-8 |
| WHEEL | STEEL OFFSET |
| GROUND PRESSURE (18″ RUBBER TRACKS) | 0.73 psi (5 kPa) |
| GROUND CLEARANCE (TIRES) | 10 in (254 mm) |
| GROUND CLEARANCE (TRACKS) | 11 in (279 mm) |
| WARRANTY | 1 YEAR |
| COLORS | GREEN, BLACK, ORANGE |
