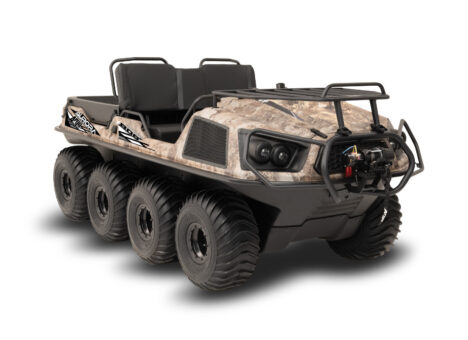

Master of the hunt it is. The Argo Aurora Huntmaster is an invaluable companion on any hunting or fishing trip. Beautifully disguised in TrueTimber Prairie Camo styling, powered by a mighty LX 800 V-Twin engine, and equipped with wilderness-ready features like a heavy-duty brushguard and 3,500 lb. winch, there is no reason not to anticipate true adventure when you drive this XTV into the wilderness!
| ENGINE | KX 800 |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | EFI |
| COOLING | LIQUID-COOLED |
| ALTERNATOR OUTPUT (MAX) | 60 AMPS |
| CHASSIS | 8X8 |
| SERVICE BRAKES | HYDRAULIC |
| STEERING BRAKES | HYDRAULIC |
| AUTO CHAIN LUBRICATION | ACCESSORY |
| EASY ACCESS GREASE SYSTEM (EAGS) | STANDARD |
| BRAKE COOLING FAN | ACCESSORY |
| TRANSMISSION | ADMIRAL W/APS |
| DRIVE BELT | STANDARD |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | STANDARD |
| WINCH | 3,500 lb |
| FRONT RACK | STANDARD |
| CARGO BOX | STANDARD |
| BILGE PUMP | STANDARD |
| ROPS | ACCESSORY/W NO CARGO LINER |
| STRETCHER FRAME | N/A |
| REAR MESH | N/A |
| ROOF | ACCESSORY W/ROPS |
| POWER DUMP BOX | N/A |
| LOAD CAPACITY – LAND | 990 lb (449 kg) |
| LOAD CAPACITY – WATER | 790 lb (358 kg) |
| TOWING CAPACITY | 1,800 lb (816 kg) |
| SEATING CAPACITY – LAND | 6 |
| SEATING CAPACITY – WATER | 4 |
| FUEL CAPACITY | 8.5 gal (32 L) |
| SPEED – LAND | 25 mph (40 Km/h) |
| SPEED – WATER | 3 mph (5 Km/h) |
| WEIGHT | 1,560 lb (708 kg) |
| LENGTH (includes winch when standard) | 126 in (3,200 mm) |
| WIDTH | 60 in (1,524 mm) |
| HEIGHT | 51 in (1,295 mm) |
| AXLE BEARING EXTENSIONS | STANDARD |
| ENTRY STEP | ACCESSORY |
| TIRES | ARGO XT117 25X12-9 |
| WHEEL | STEEL BEADLOCK |
| GROUND PRESSURE (18″ RUBBER TRACKS) | 0.88 psi (6.1 kPa) |
| GROUND CLEARANCE (TIRES) | 10 in (254 mm) |
| GROUND CLEARANCE (TRACKS) | 11 in (279 mm) |
| WARRANTY | 1 YEAR |
| COLORS | TRUETIMBER PRAIRIE CAMO |
