2024 CONQUEST PRO 800 XT-L 8×8

2024 CONQUEST PRO 800 XT-L 8×8

Big, powerful, and extreme-terrain ready. This is the Argo Conquest Pro 800 XT-L. Eight drive wheels, a protective ROPS with a hard roof and rear safety mesh, a powerful KX 800 EFI liquid-cooled engine, rear-mounted toolbox and the ability to tow up to 2,200 pounds. A true PRO among the pros.

2024 CONQUEST PRO 800 XT-L 8×8 Overview

  • KX 800 EFI Liquid-Cooled V-Twin Engine
  • Automatic Admiral Transmission with Triple Differentials
  • Instant Torque Drive System (ITDS)
  • XT119 25×12-9 Mud Tires
  • Steel Beadlock Wheels
  • Heavy-Duty Front Brushguard
  • 4,500 lb. Winch with Synthetic Rope
  • Heavy-duty Oil Bath Axles
  • Automatic Chain Lubrication System
  • Easy-Access Grease System
  • 2″ Receiver Hitch
  • 2,000 lb. Towing Capacity
  • High-Density Polyethylene (HDPE) Body
  • Certified Roll-Over Protection Structure (ROPS)
  • Rear-Mounted Toolbox
  • Colors: Yellow or Black

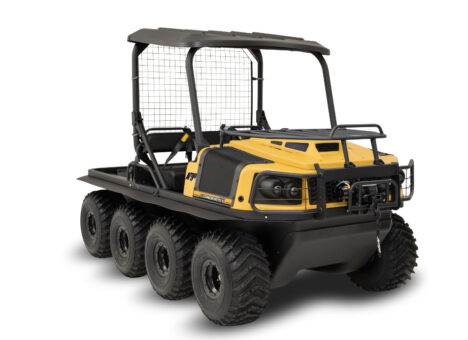

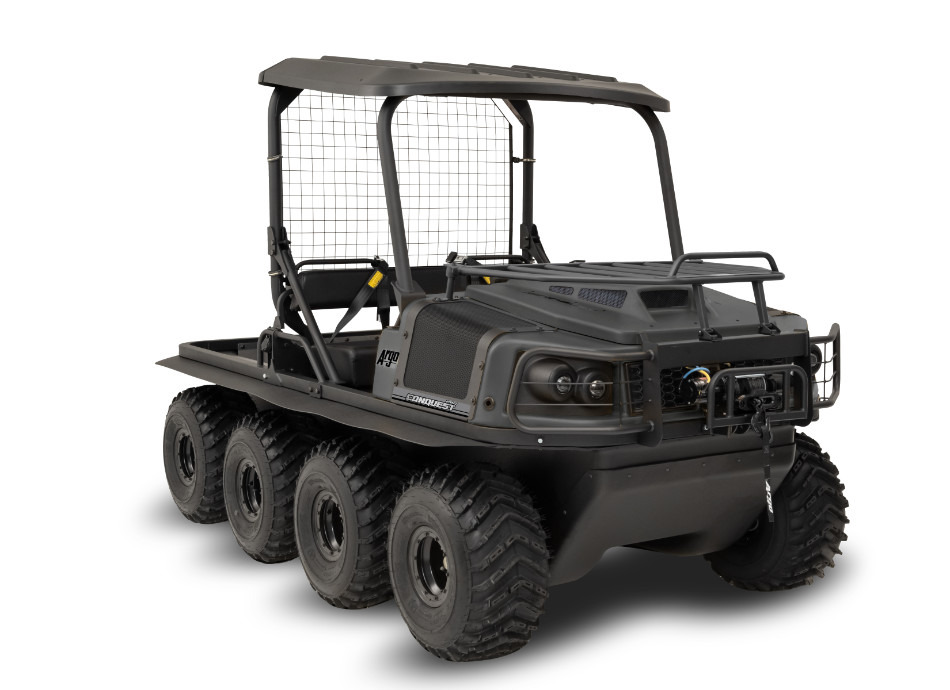

2024 CONQUEST PRO 800 XT-L 8×8 Colors

  • Black
  • Industrial Yellow

2024 CONQUEST PRO 800 XT-L 8×8 Specs

ENGINE KX 800
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMPS
CHASSIS 8X8
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING KIT N/A
TRANSMISSION ADMIRAL
DRIVE BELT HEAVY DUTY
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 lb. w/SYNTHETIC ROPE
FRONT RACK STANDARD
REAR RACK N/A
BILGE PUMP STANDARD
ROPS STANDARD
REAR MESH STANDARD
ROOF STANDARD
POWER DUMP BOX ACCESSORY
LOAD CAPACITY – LAND 981 lb (445 kg)
LOAD CAPACITY – WATER 281 lb. (128 kg)
TOWING CAPACITY 2,000 lb. (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
WATER CAPABILITY WATER FORDING
WEIGHT 2,119 lb. (961 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 80.5 in (2,045 mm)
AXLE BEARING EXTENSIONS N/A
TIRES ARGO XT119 25X12-9
WHEEL STEEL BEADLOCK
GROUND CLEARANCE (TIRES) 9 in (229 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
COLORS YELLOW, BLACK
