8×8 XTD

8×8 XTD

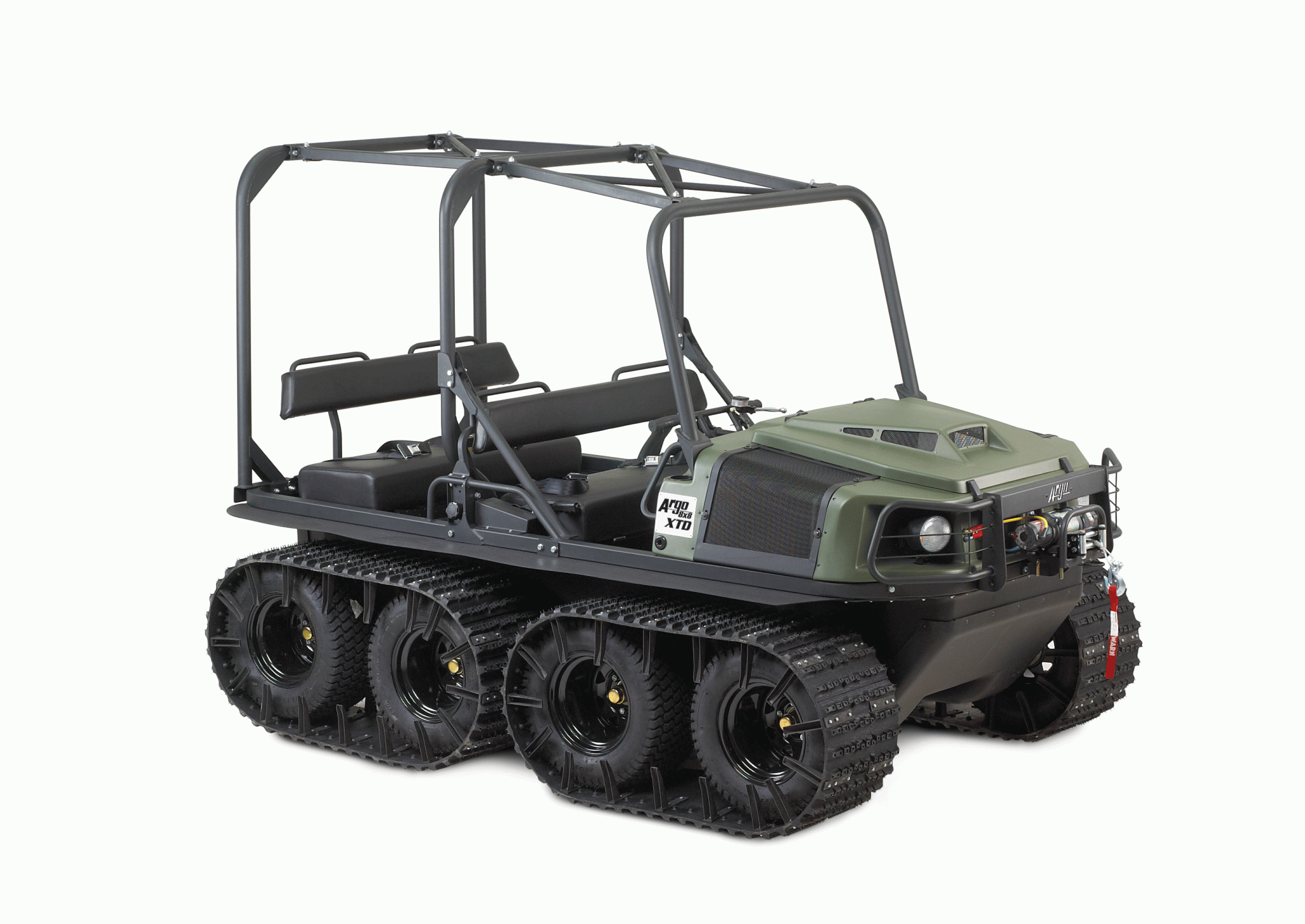

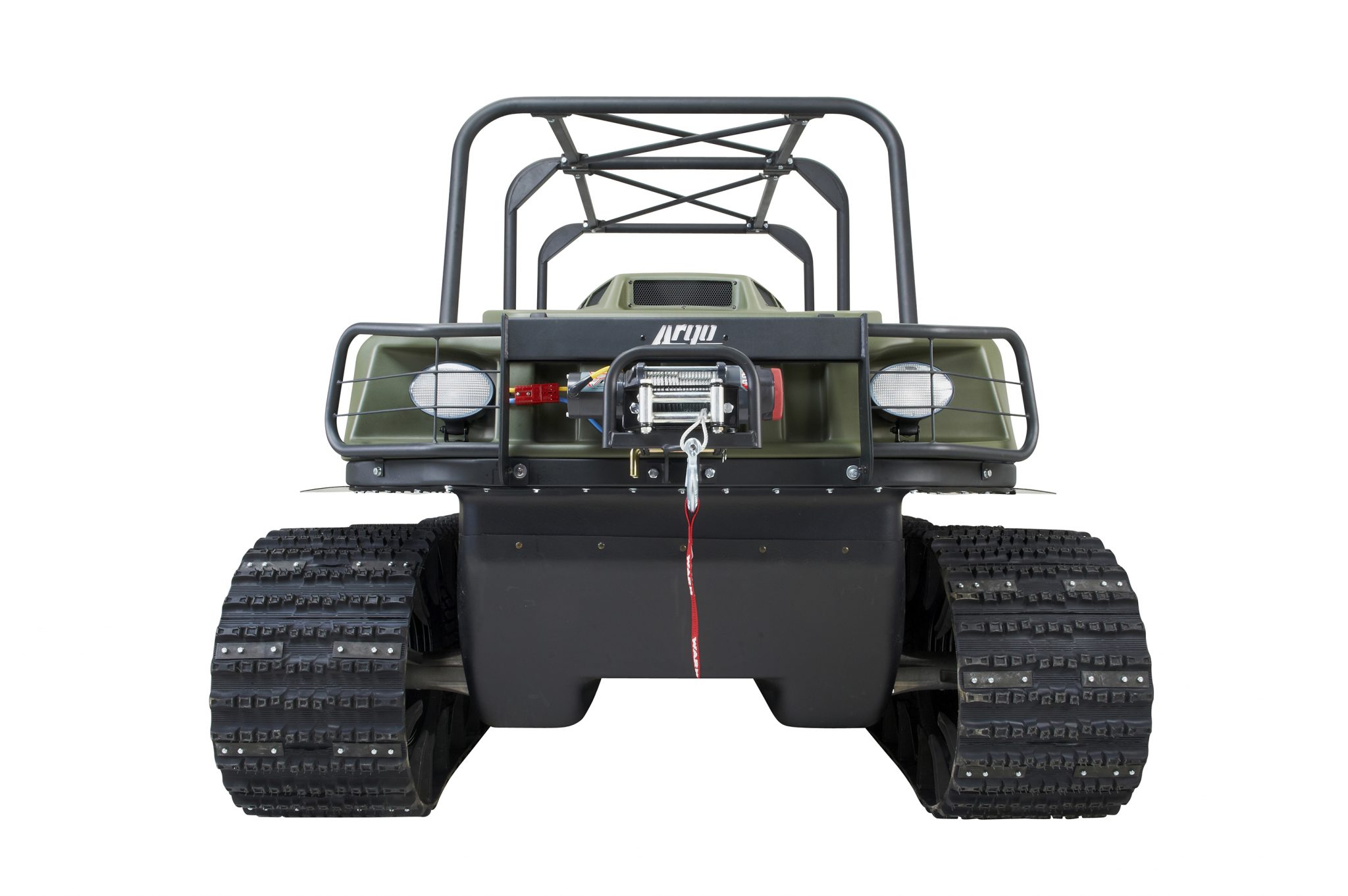

This 8-wheel-drive amphibious off-road vehicle is powered by a 1028 cc (62.7 cu. In.) liquid-cooled, 3 cylinder Kohler Lombardini naturally aspirated diesel engine. The engine provides 24 hp (17.6 kW) and 36.9 lbs ft of torque to the ADMIRAL two-speed transmission. It has a load capacity of up to 1,340 lb. / 608 kg on land or 840 lb. / 381 kg on water. Can transport up to 4 passengers on land and 2 on water and features a towing capacity of 2,000 lb. / 907 kg. Available in tracked or non-tracked configurations.

8×8 XTD Overview

The 8×8 XTD is the ultimate all-terrain machine for those who require a durable, robust and dependable job site transporter. Designed for demanding commercial uses, the XTD has what people need to get their job done; large payload capacity, tubular steel frame, sealed axles and comfort for staff. The low operational weight, coupled with the efficient ADMIRAL steering transmission, makes this the ideal vehicle to transport people and equipment through the harshest terrain. With integrated frame mounting locations and universal mounting accessory, adding tools or equipment to the rear of the vehicle is convenient, simple and quick. Adding rubber tracks makes this the best-in-class vehicle when the task takes you off the beaten path.

8×8 XTD Colors


8×8 XTD Features

• Innovative triple-differential ADMIRAL transmission with independent steering brakes
• Increased steering efficiency for more and constant power to the wheels
• Common rail fuel injection provides:
• Better fuel economy
1. Reliable cold weather starting

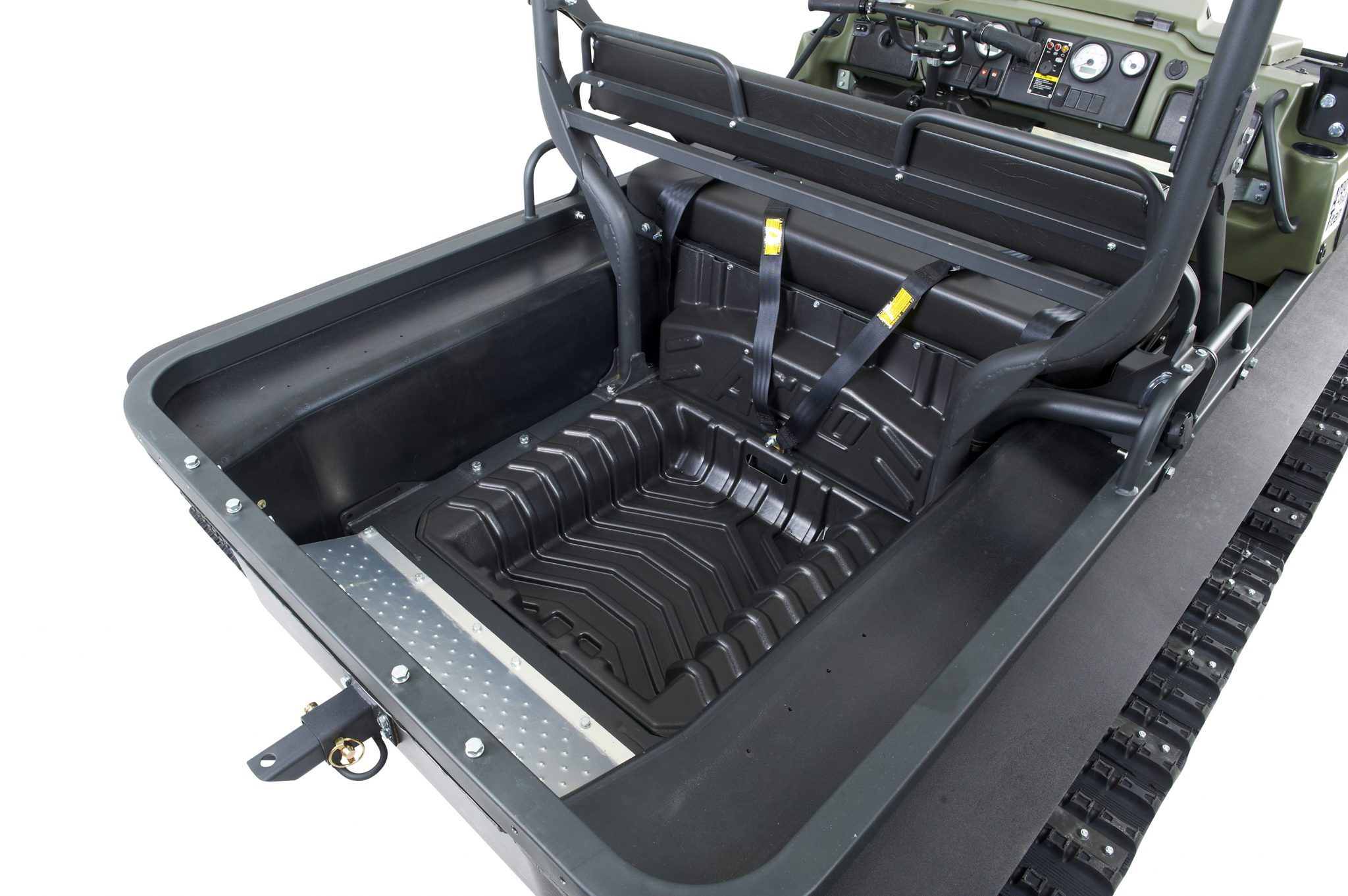

2. Large rear cargo capacity
• Modular accessory designs for quick and easy change-over
• Large engine compartment with quick detach body panels
• Long wheel base for increased ride comfort over rough terrain
• Wide, 65”, wheel base for superior stability
• Oil-bath drive axles supported by taper roller bearings
• Full skid plate for lower body protection
• 8-wheel traction with low center of gravity for extra stability
• 25″ (63.5 cm) ARGO tires with proprietary tread design
• Analogue Gauge (speedometer with digital odometer, tachometer with digital hour meter, fuel level, voltmeter, engine coolant temperature, warning lights; low oil pressure, parking brake on and glow plug on)
• Multi-position handlebars, Left, Right or Center
• Dual 12V outlets and Glove Boxes
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• 3-year limited engine warranty

8×8 XTD Specs

Engine  In-line 3 cylinder diesel. 3 year engine warranty.
Model  Kohler/Lombardine KDW1003
Horsepower  24  (17 kW)
Displacement  1028cc
Cooling  Liquid cooled
Starting  Electric
Brakes  Hydraulically activated disc brakes
Steering  One-piece handlebar steering. Multi-position left, center and right
Controls  Centre mount, analog dash panel, tachometer with digital hour meter, speedometer with digital odometer, fuel gauge, volt meter, water temperature
Clutch  Continuously Variable Transmission (CVT) with heavy duty drive belt
Transmission  ADMIRAL triple differential steering transmission
Drive System  RS60HT heavy series roller chain connects 8 axles to the ADMIRAL transmission
Frame  Powder coated, 3″ tubular steel, welded construction
Body  Vacuum formed upper body, lower hull and skid plate formed from High Molecular Weight Polyethylene (HMWPE)
Full Skid Plate  Standard
Load Capacity – On Land  1340 lb. / 608 kg
Load Capacity – On Water  840 lb. / 381 kg
Towing Capacity  2000 lb. / 907 kg
Seating Capacity – On land   2 persons – 4 optional
Seating Capacity – On Water  2 persons
Fuel Capacity  9.5 US gallons (36 litres) providing 8 – 10 hours of operation
Speed (on land)  17 mph (27 km/h)
Speed (on water)  3 mph  (5 km/h)
Shipping Weight  1750 lb. / 794 kg
Axles  1.50″ (38 mm) diameter axles housed in an oil filled aluminum housing
Tires  ARGO AT189 25×12.00-9 NHS
Ground Pressure  Tires 7 psi (48.3 kPa) or less Optional 15″ track 1.82 psi (12.4 kPa) or less Optional 18″ track 1.0 psi (6.8 kPa) or less
Ground Clearance   9″ (228 mm) @ centre of vehicle
Operating Conditions  All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
