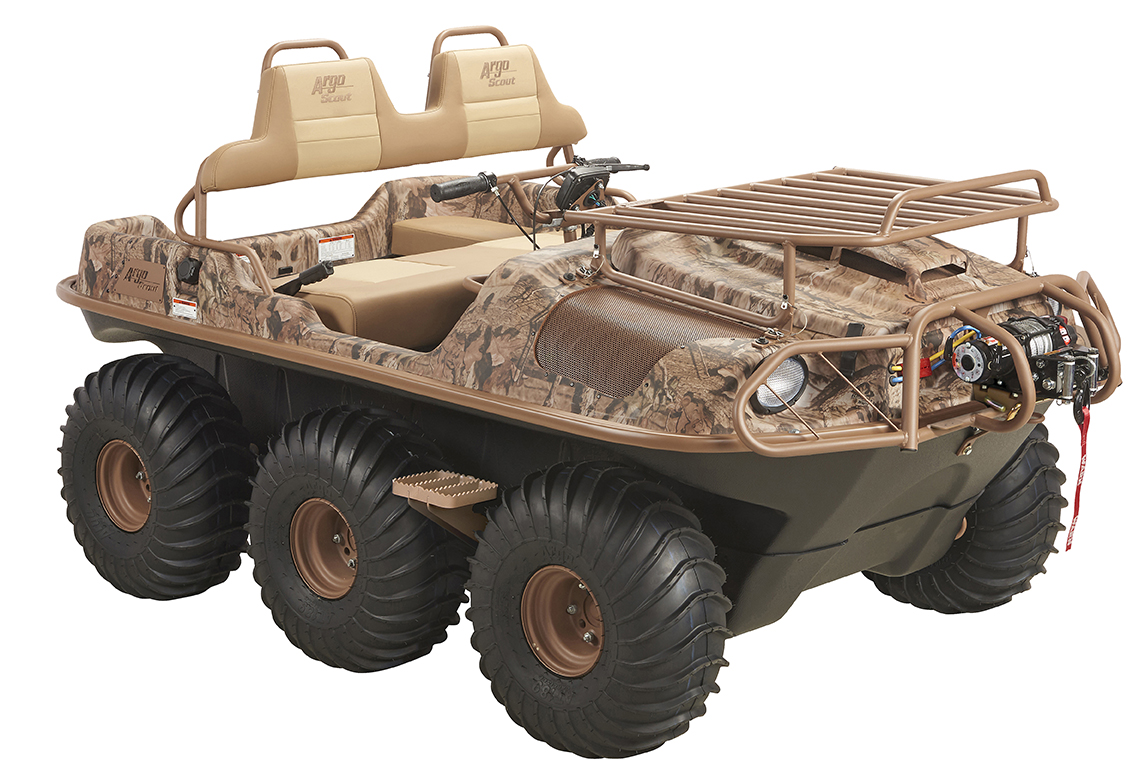

The Frontier 6×6 Scout S comes with an air cooled, 23 HP Kohler V-Twin engine. It can carry 4 passengers on land and two on the water while carrying up to 560 lb. With its upgraded seating and front-mounted brushguard, the Frontier 6×6 Scout S makes for a smooth expedition.
• 23HP Kohler Air Cooled Engine
• 24” Steel Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Entry Step
• 3500 lb Warn Winch
• Brushguard
• Ducting for the Brake Fan Cooling
• Scout Package (Premium Seats, Front Rack, Brake/Tail Lights)
• Transmission Options: HT (34-100-3.3) and STD (34-100)
| Engine | Kohler Command Pro |
| Engine Warranty | 3 Year |
| Type | 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders |
| Horsepower* | 23 |
| Displacement | 747cc |
| Cooling | Air cooled |
| Service Brakes | Mechanical |
| Steering Brakes | Hydraulic |
| Brake Cooling Fan | Optional |
| Steering | One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | CLASSIC with Hi & Low and Forward, Neutral & Reverse |
| Transmission Options | STD or HT |
| Drive System | Chains drive machined sprockets. 1 1/4″ diameter axles with triple sealed greaseable outer bearings. |
| Final Drive | RC60 roller chain drive to all 6 axles |
| HD Drive Belt | Optional |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene |
| Full Skid Plate | Standard |
| Brushguard | Standard |
| Winch | 3,500 lb. Warn Winch |
| Bilge Pump | Standard |
| Load Capacity – On Land | 560 lb. / 254 kg total |
| Load Capacity – Rear Compartment | 140 lb. / 64 kg max. |
| Load Capacity – On Water | 360 lb. / 163 kg total |
| Towing Capacity | 1200 lb. / 544 kg |
| Seating Capacity | 4 persons on land, 2 persons on water |
| Fuel Capacity | 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) | 22 mph / 35 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 990 lb. / 449 kg |
| Axle Bearing Extensions | Standard |
| Instrumentation | LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light |
| Entry Step | Standard |
| Tires | ARGO AT189 24 x 10.00-8NHS |
| Ground Pressure | 2.5 psi (17.2 kPa) using tires |
| Ground Clearance Tires | 9.5 inches – 240 mm |
| Ground Clearance Tracks | 10.5 inches – 265 mm |
| Operating Conditions | All weather,all-terrain,-40°C to +40°C |
| Dimensions |  |
*subject to change without notice
