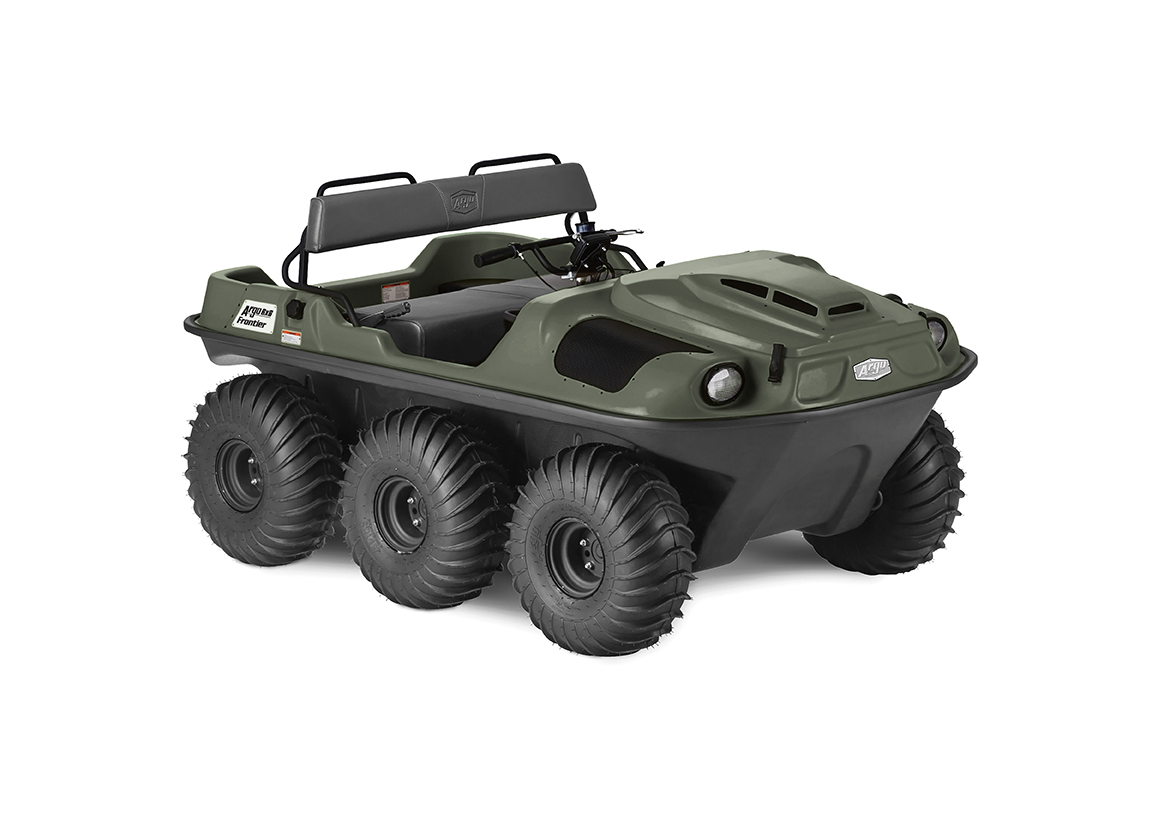

Frontier 6×6 ST

Frontier 6×6 ST

The Frontier 6×6 ST can carry 4 passengers on land and 2 on the water with a maximum load capacity of 630 lb. It’s powered by a 23 HP, air cooled, Kohler V-Twin engine and comes with the ADMIRAL Easy Steer™ transmission that offers the perfect balance between smooth steering and constant traction.

Frontier 6×6 ST Overview

• 23HP Kohler Air Cooled Engine
• 24” Steel Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Entry Step
• Transmission Option: Admiral – STD (34-200-7)

Frontier 6×6 ST Colors


Frontier 6×6 ST Features


Frontier 6×6 ST Specs

Engine Kohler Command Pro
Engine Warranty 3 Year
Type 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders
Horsepower* 23
Displacement 747cc
Cooling Air cooled
Service Brakes Hydraulic
Steering Brakes Hydraulic
Brake Cooling Fan Optional
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL with triple differential steering transmission with independent Hi & Low and Forward, Neutral & Reverse
Transmission Options STD
Drive System Chains drive machined sprockets. 1 1/4″ diameter axles with triple sealed greaseable outer bearings.
Final Drive RC60 roller chain drive to all 6 axles
HD Drive Belt Optional
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene
Full Skid Plate Standard
Brushguard Optional
Winch Optional
Bilge Pump Standard
Load Capacity – On Land 630 lb. / 286 kg total
Load Capacity – Rear Compartment 140 lb. / 64 kg max.
Load Capacity – On Water 430 lb. / 195 kg total
Towing Capacity 1200 lb. / 544 kg
Seating Capacity 4 persons on land, 2 persons on water
Fuel Capacity 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 22 mph / 35 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 910 lb. / 413 kg
Axle Bearing Extensions Standard
Instrumentation LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light
Entry Step Standard
Tires ARGO AT189 24 x 10.00-8NHS
Ground Pressure 2.5 psi (17.2 kPa) using tires
Ground Clearance Tires 9.5 inches – 240 mm
Ground Clearance Tracks 10.5 inches – 265 mm
Operating Conditions All weather,all-terrain,-40°C to +40°C

*subject to change without notice
