Name: Shank's Argo
Price range: $$$

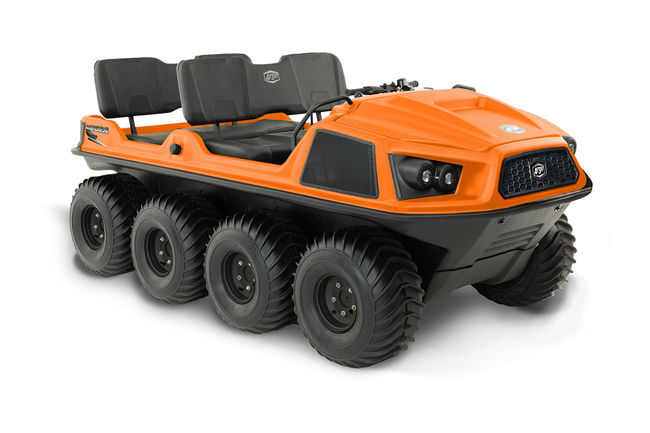

The all new Aurora has a progressive steering system that feels like driving an ATV and forward-facing seats for up to four people on land and water. The 800 is powered by a 30 hp liquid cooled V-twin paired with an Admiral transmission. ST gearing gives this XTV a 20 mph top speed, while HT gearing tops out at 17 mph, but offers more torque. It can carry up to 1,070 lbs. on land and 920 lbs. on water. Maximum towing payload is 1,800 lbs. Available colors include green and orange.

Overview
Colors
Specs
Downloads

2019 Aurora 800 Overview

30HP V-Twin EFI Liquid Cooled Engine
Admiral High Torque or Standard Transmission
ARGO Progressive Steering (APS)
Steel Offset Rims with 25” tires
Color: Green or Orange

2019 Aurora 800 Colors

swatch-orange swatch-tundra-green

2019 Aurora 800 Specs

HORSEPOWER	30HP
CYLINDER	V-TWIN
FUEL SYSTEM	EFI
COOLING	LIQUID COOLED
ALTERNATOR OUTPUT (MAX)	40 AMPS
SERVICE BRAKES	HYDRAULIC
STEERING BRAKES	HYDRAULIC
BRAKE COOLING FAN	—–
TRANSMISSION	ADMIRAL W/APS
TRANSMISSION OPTION	ST OR HT
HD DRIVE BELT	STANDARD
FULL SKID PLATE	STANDARD
BRUSHGUARD	—–
FRONT RACK	—–
WINCH	—–
BILGE PUMP	STANDARD
LOAD CAPACITY – LAND	1,070 LB. (485 KG)
LOAD CAPACITY – WATER	920 LB. (417 KG)
TOWING CAPACITY	1,800 LB. (816 KG)
SEATING CAPACITY – LAND	4
SEATING CAPACITY – WATER	4
FUEL CAPACITY	7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION)	20 MPH (32 KM/H)
SPEED – LAND (HT TRANSMISSION)	17 MPH (27 KM’H)
SPEED – WATER	3 MPH (5 KM/H)
WEIGHT	1,330 LB. (603 KG)
LENGTH	119 IN (3,023 MM)
WIDTH	60 IN (1,524 MM)
HEIGHT	50 IN (1,271 MM)
AXLE BEARING EXTENSIONS	STANDARD
ENTRY STEP	—–
TIRES	ARGO XT117 25X12-9
RIMS	STEEL OFF-SET
GROUND PRESSURE (TIRES)	1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS)	0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES)	9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS)	11.0 IN (279 MM)
WARRANTY	1 YEAR
COLORS	GREEN/ORANGE

2019 Aurora 800 Downloads

Download

2019 Argo Aurora Series Brochure 1.08 MB 187 downloads
...
