2019 Conquest Pro 800 XT-L

2019 Conquest Pro 800 XT-L

Built for electric line work, the XT-L comes with a rolling tool tote and vise for remote work as well as a stretcher to evacuate injured personnel. Other standard equipment includes a 4,500 lb. Warn winch, steel beadlock rims, a brush guard, a front cargo rack, and a ROPS with roof, windshield, rear mesh screen and wiper. It’s powered by a 30 hp liquid-cooled V-twin connected to an Admiral HT transmission. This two seater isn’t amphibious due to its high center of gravity, but it can carry up to 1,190 lbs. on land and tow up to 2,000 lbs.

2019 Conquest Pro 800 XT-L Overview

  • 30 HP V-Twin Liquid Cooled EFI
  • Standard Admiral Transmission
  • Steel Bead Lock Rims with 25” tires
  • 4500 lb. Winch with steel cable
  • Front Brush Guard
  • Auto chain lubrication
  • Adjustable Steering
  • Rollover Protective Structure with roof, windshield and wiper
  • Stretcher and carry bag
  • Dry Storage Tote
  • Vice
  • Spot and Flashing Light
  • Colors: Industrial Yellow or Green

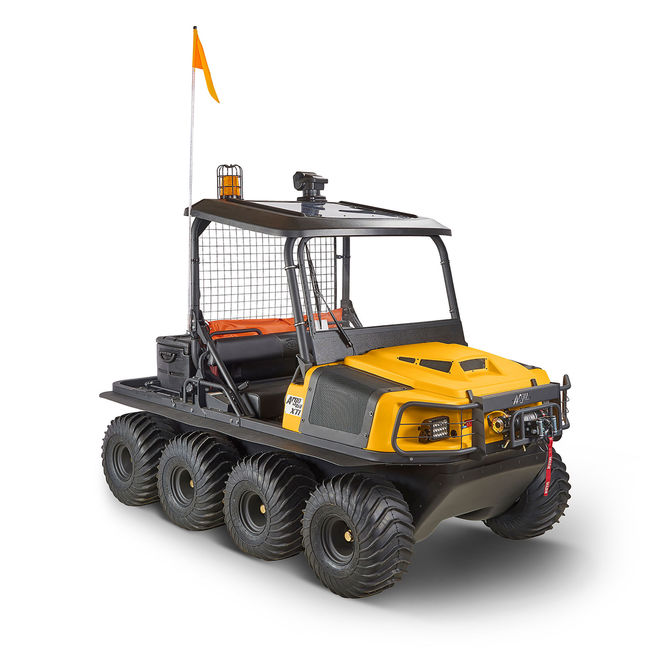

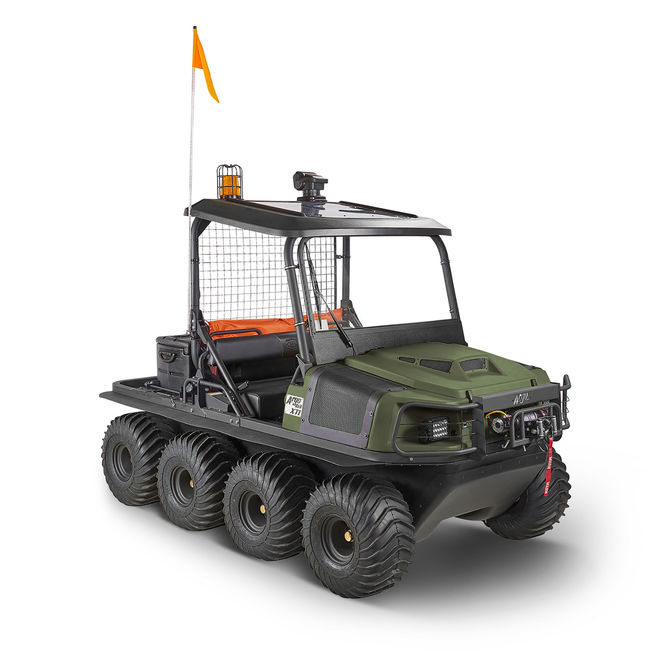

2019 Conquest Pro 800 XT-L Colors

swatch-yellow swatch-tundra-green

2019 Conquest Pro 800 XT-L Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMP
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
TRANSMISSION ADMIRAL
TRANSMISSION OPTION HT
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH – FRONT 4,500 LB. WARN WINCH
WINCH – REAR RECEIVER KIT STANDARD
FRONT RACK —–
ROLLOVER PROTECTION STRUCTURE STANDARD
REAR MESH STANDARD
ROOF STANDARD
WINDSHIELD WITH WIPER STANDARD
POWER DUMP BOX —–
STRETCHER, VICE, SPOT AND FLASHING LIGHT STANDARD
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 1,190 LB. (540 KG)
LOAD CAPACITY – WATER NOT AMPHIBIOUS
TOWING CAPACITY 2,000 LB. (907 KG)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER —–
FUEL CAPACITY 9.5 US GALLONS (36 LITRES)
SPEED – LAND 17 MPH (27 KM/H)
WEIGHT 2,045 LB. (928 KG)
LENGTH 125 IN (3,175 MM)
WIDTH 65 IN (1,651 MM)
HEIGHT 79 IN (2,007 MM)
AXLE BEARING EXTENSIONS STANDARD
TIRES ARGO XT 117 25X12-9
RIMS STEEL BEAD LOCK
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.0 IN (229 MM)
GROUND CLEARANCE (TRACKS) 10.0 IN (254 MM)
WARRANTY 1 YEAR
COLORS INDUSTRIAL YELLOW/GREEN
