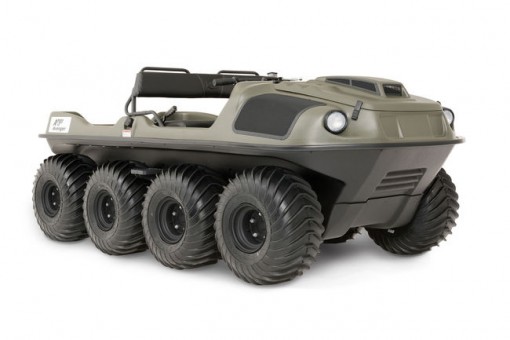

2019 Avenger 800

2019 Avenger 800

The Avenger is similar in size to the Conquest, but adds more payload capacity: the 800 can carry up to 1,070 lbs. and 6 people on land and 920 lbs. with up to four people on water. Maximum towing payload is 1,800 lbs. The 30 hp liquid cooled V-twin is paired with an Admiral transmission available with ST gearing for a 20 mph top speed or HT gearing for a 17 mph top speed and more torque. This model is available in green and black.

2019 Avenger 800 Overview

  • 30 HP V-Twin Liquid Cooled EFI Engine
  • Admiral High Torque or Standard Transmission
  • Steel Offset Rims with 25” tires
  • Colors: Green or Black

2019 Avenger 800 Colors

swatch-tundra-green swatch-black

2019 Avenger 800 Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION ADMIRAL
TRANSMISSION OPTION ST OR HT
HD DRIVE BELT —–
FULL SKID PLATE STANDARD
BRUSHGUARD —–
WINCH —–
FRONT RACK —–
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 1,070 LB. (485 KG)
LOAD CAPACITY – WATER 920 LB. (417 KG)
TOWING CAPACITY 1,800 LB. (816 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 20 MPH (32 KM/H)
SPEED – LAND (HT TRANSMISSION) 17 MPH (27 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1,330 LB. (603 KG)
LENGTH 119 IN (3,023 MM)
WIDTH 60 IN (1,524 MM)
HEIGHT 46 IN (1,169 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES ARGO AT189 25X12-9
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 11.0 IN (279 MM)
WARRANTY 1 YEAR
COLORS GREEN/BLACK

2019 Avenger 800 Downloads

2019 Argo Avenger Series Brochure 681.42 KB 21 downloads

...
