2019 Bigfoot 800 MX8

2019 Bigfoot 800 MX8

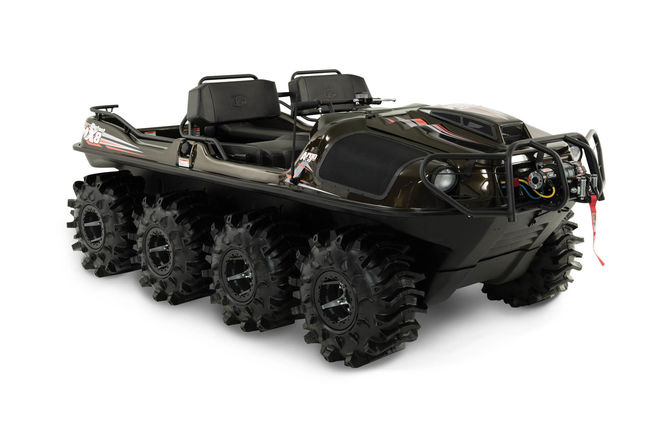

This 8×8 comes with Argo’s new 25-inch mud tires with aluminum beadlock rims. While they aren’t the best choice for swimming in open water, these new tires give the Bigfoot unparalleled traction on muddy, slippery terrain. This model can carry up to 1,045 lbs. and six people, and it tows up to 1,800 lbs. It’s powered by a 30 hp liquid-cooled V-twin is paired with an Admiral transmission with ST gearing for a top speed of 20 mph. Standard equipment includes a 3,500 lb. Warn winch, a brush guard and an all weather Jensen stereo. The MX8 is painted black gold.

2019 Bigfoot 800 MX8 Overview

  • 30HP V-Twin EFI Liquid-Cooled
  • Admiral Transmission
  • Aluminum Bead Lock wheels with 25” Mud Tires
  • 3500 lb. winch with steel cable
  • Tail Lights
  • Premium Jensen® Stereo
  • Color: Black Gold

2019 Bigfoot 800 MX8 Colors

swatch-blackgold

2019 Bigfoot 800 MX8 Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 40 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION ADMIRAL
TRANSMISSION OPTION ST
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
FRONT RACK —–
WINCH 3,500 LB. WARN WINCH
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 1,045 LB. (474 KG)
LOAD CAPACITY – WATER —–
TOWING CAPACITY 1,800 LB. (816 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER —–
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 20 MPH (32 KM/H)
SPEED – LAND (HT TRANSMISSION) —–
SPEED – WATER —–
WEIGHT 1,510 LB. (685 KG)
LENGTH 119 IN (3,023 MM)
WIDTH 60 IN (1,524 MM)
HEIGHT 46 IN (1,169 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES MT 25X12-9
RIMS ALUMINUM BEAD LOCK
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) —–
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) —–
WARRANTY 1 YEAR
COLORS BLACK GOLD

2019 Bigfoot 800 MX8 Downloads

2019 Argo Bigfoot Series Brochure 748.48 KB 22 downloads

...
