2019 Avenger Pro 800 XT Responder

2019 Avenger Pro 800 XT Responder

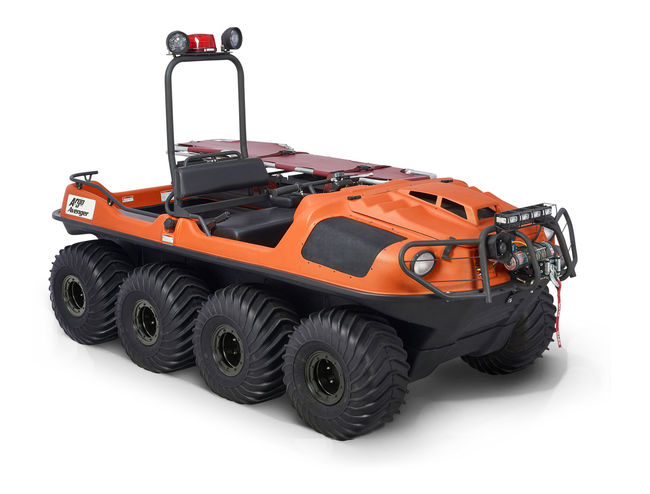

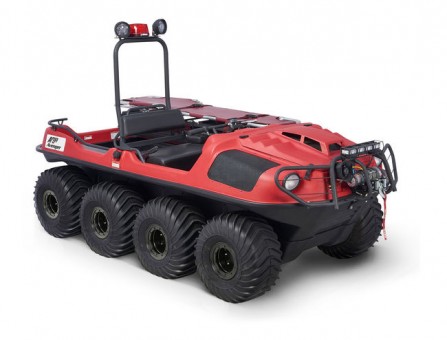

This model is built for the needs of search and rescue operations in remote areas. Standard equipment includes a 3,500 lb. Warn winch, a stretcher that mounts over the left side of the vehicle, and a folding light bar with work lights and a strobe light. It’s powered by a 30 hp liquid cooled V-twin mated to an Admiral transmission with ST gearing for a top speed of 20 mph. The Responder can carry up to 840 lbs. and 690 lbs. on water. Maximum towing payload is 1,800 lbs. This vehicle is available in red and orange.

2019 Avenger Pro 800 XT Responder Overview

  • 30HP V-Twin EFI Liquid Cooled Engine
  • Admiral Standard Torque Transmission
  • Steel Rims with 25” tires
  • 3500 lb. Winch with steel cable
  • Front Brushguard
  • Brake cooling fan
  • Folding Seat
  • Folding Light Bar
  • Colors: Orange or Red

2019 Avenger Pro 800 XT Responder Colors

swatch-responder-red swatch-orange

2019 Avenger Pro 800 XT Responder Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 40 AMP
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
TRANSMISSION ADMIRAL
TRANSMISSION OPTION ST
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH – FRONT 3,500 LB. WARN WINCH
WINCH – REAR RECEIVER KIT —–
FRONT RACK —–
ROLLOVER PROTECTION STRUCTURE —–
REAR MESH —–
ROOF —–
WINDSHIELD WITH WIPER —–
POWER DUMP BOX —–
STRETCHER, VICE, SPOT AND FLASHING LIGHT —–
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 840 LB. (381 KG)
LOAD CAPACITY – WATER 690 LB. (313 KG)
TOWING CAPACITY 1,800 LB. (816 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND 20 MPH (32 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1,560 LB. (708 KG)
LENGTH 124 IN (3,150 MM)
WIDTH 60 IN (1,524 MM)
HEIGHT 46 IN (1,169 MM)
AXLE BEARING EXTENSIONS STANDARD
TIRES ARGO AT 189 25X12-9
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.0 IN (229 MM)
GROUND CLEARANCE (TRACKS) 10.0 IN (254 MM)
WARRANTY 1 YEAR
COLORS RED/ORANGE

2019 Avenger Pro 800 XT Responder Downloads

2019 Argo Commercial Series Brochure 796.43 KB 16 downloads

...
