2019 Avenger Pro 800 XT

2019 Avenger Pro 800 XT

The XT is aimed at businesses that need to transport personnel. It’s powered by a 30 hp liquid cooled V-twin paired with an Admiral transmission available with ST gearing for a 20 mph top speed or HT gearing for a 17 mph top speed and more torque. The XT can carry up to 860 lbs. and 6 people on land and 710 lbs. with up to four people on water. Maximum towing payload is 1,800 lbs. Standard equipment includes a 3,500 lb. Warn winch, a brush guard and a front cargo rack. Available colors include industrial yellow and green.

2019 Avenger Pro 800 XT Overview

  • 30HP V-Twin EFI Liquid Cooled Engine
  • Admiral Standard Torque or High Torque Transmission
  • Steel Off set Rims with 25” tires
  • 3500 lb. Winch with steel cable
  • Front Brushguard
  • Brake cooling fan
  • Auto chain lubrication
  • Removable bedliner

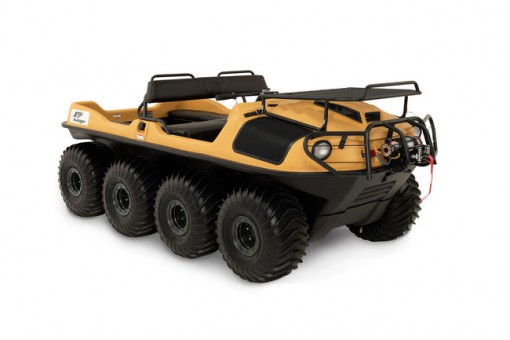

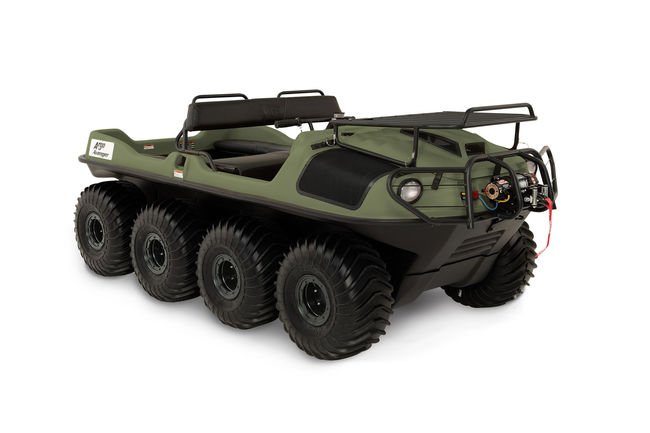

  • Colors: Industrial Yellow or Green

2019 Avenger Pro 800 XT Colors

swatch-yellow swatch-tundra-green

2019 Avenger Pro 800 XT Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 40 AMP
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
TRANSMISSION ADMIRAL
TRANSMISSION OPTION ST OR HT
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH – FRONT 3,500 LB. WARN WINCH
WINCH – REAR RECEIVER KIT —–
FRONT RACK STANDARD
ROLLOVER PROTECTION STRUCTURE —–
REAR MESH —–
ROOF —–
WINDSHIELD WITH WIPER —–
POWER DUMP BOX —–
STRETCHER, VICE, SPOT AND FLASHING LIGHT —–
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 860 LB. (390 KG)
LOAD CAPACITY – WATER 710 LB. (322 KG)
TOWING CAPACITY 1,800 LB. (816 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND 20 MPH (32 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1,540 LB. (699 KG)
LENGTH 124 IN (3,150 MM)
WIDTH 60 IN (1,524 MM)
HEIGHT 46 IN (1,169 MM)
AXLE BEARING EXTENSIONS STANDARD
TIRES ARGO AT 189 25X12-9
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.0 IN (229 MM)
GROUND CLEARANCE (TRACKS) 10.0 IN (254 MM)
WARRANTY 1 YEAR
COLORS INDUSTRIAL YELLOW/GREEN

2019 Avenger Pro 800 XT Downloads

2019 Argo Commercial Series Brochure 796.43 KB 16 downloads

...
