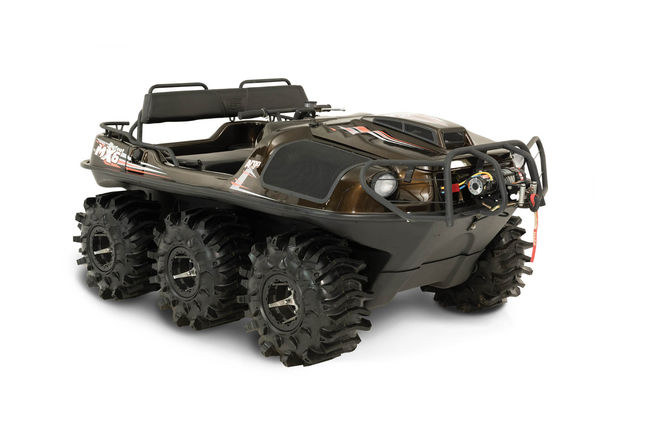

2019 Bigfoot 800 MX6

2019 Bigfoot 800 MX6

This 6×6 comes with Argo’s new 25-inch mud tires with aluminum beadlock rims. While they aren’t the best choice for swimming in open water, these new tires give the Bigfoot unparalleled traction on muddy, slippery terrain. The MX6 can carry up to 380 lbs. and four people, and it tows up to 1,200 lbs. It’s powered by a 30 hp liquid-cooled V-twin is paired with an Admiral transmission with ST gearing for a top speed of 20 mph. Standard equipment includes a 3,500 lb. Warn winch, a brush guard and an all weather Jensen stereo. This model is painted black gold.

2019 Bigfoot 800 MX6 Overview

  • 30HP V-Twin EFI Liquid Cooled
  • Admiral Transmission
  • Aluminum Bead Lock wheels with 25” Mud Tires
  • 3500 lb. winch with steel cable
  • Tail Lights
  • Premium Jensen® Stereo
  • Color: Black Gold

2019 Bigfoot 800 MX6 Colors

swatch-blackgold

2019 Bigfoot 800 MX6 Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 40 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION ADMIRAL
TRANSMISSION OPTION ST
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
FRONT RACK —–
WINCH 3,500 LB. WARN WINCH
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 380 LB. (172 KG)
LOAD CAPACITY – WATER —–
TOWING CAPACITY 1,200 LB. (544 KG)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER —–
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 20 MPH (32 KM/H)
SPEED – LAND (HT TRANSMISSION) —–
SPEED – WATER —–
WEIGHT 950 LB. (431 KG)
LENGTH 95 IN (2,413 MM)
WIDTH 60 IN (1,524 MM)
HEIGHT 46 IN (1,169 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES MT 25X12-9
RIMS ALUMINUM BEAD LOCK
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) —–
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) —–
WARRANTY 1 YEAR
COLORS BLACK GOLD

2019 Bigfoot 800 MX6 Downloads

2019 Argo Bigfoot Series Brochure 748.48 KB 22 downloads

...
