2019 Conquest 800 Outfitter

2019 Conquest 800 Outfitter

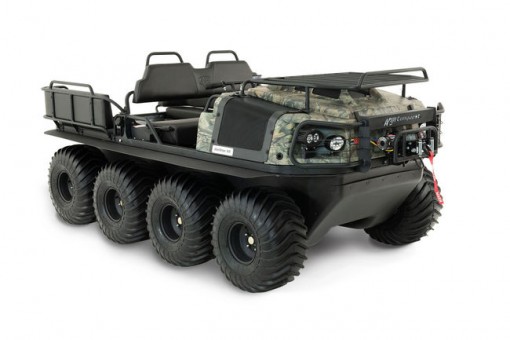

Hunting equipment and massive payload capacity make the Outfitter the perfect choice for hunting big game. This model comes with a 30 hp liquid-cooled V-twin and an Admiral HT transmission for a top speed of 17 mph. Standard equipment includes a 4,500 lb. Warn winch, steel beadlock rims, a brush guard and a front cargo rack. The Outfitter can carry up to 1,420 lbs. on land and 785 lbs. on water. Maximum towing payload is 2,000 lbs. Argo offers this model in Mossy Oak’s Breakup Country and Shadow Grass Blades camouflage patterns.

2019 Conquest 800 Outfitter Overview

  • 30HP V-Twin EFI Liquid-Cooled Engine
  • Admiral Transmission
  • Steel Bead Lock Rims with 25” tires
  • 4500 lb. winch with steel cable
  • Brushguard
  • Front Rack
  • Colors: Breakup Country Camo or Shadow Grass Blades Camo

2019 Conquest 800 Outfitter Colors

swatch-breakup

2019 Conquest 800 Outfitter Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMP
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
TRANSMISSION ADMIRAL
TRANSMISSION OPTION HT
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4,500 LB. WARN WINCH
FRONT RACK STANDARD
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 1,420 LB. (644 KG)
LOAD CAPACITY – WATER 785 LB. (356 KG)
TOWING CAPACITY 2,000 LB. (907 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 2
FUEL CAPACITY 9.5 US GALLONS (36 LITRES)
SPEED – LAND (ST TRANSMISSION) —–
SPEED – LAND (HT TRANSMISSION) 17 MPH (27 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1,815 LB. (823 KG)
LENGTH 128 IN (3,251 MM)
WIDTH 65 IN (1,651 MM)
HEIGHT 53 IN (1,346 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP DUAL REAR ENTRY STEPS
TIRES ARGO XT117 25X12-9
RIMS STEEL BEAD LOCK
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.0 IN (229 MM)
GROUND CLEARANCE (TRACKS) 10.0 IN (254 MM)
WARRANTY 1 YEAR
COLORS BREAKUP COUNTRY CAMO/SHADOW GRASS CAMO

2019 Conquest 800 Outfitter Downloads

2019 Argo Conquest Series Brochure 659.30 KB 98 downloads

...
