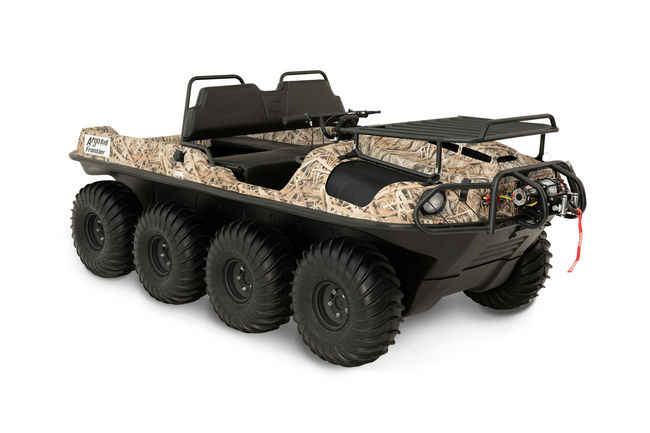

2019 Frontier 750 Scout 8×8

2019 Frontier 750 Scout 8×8

This hunting XTV combines a 26 hp Vanguard EFI V-twin with ST gearing for a 22 mph top speed or HT gearing for a 19 mph top speed and more torque. Argo offers this model in Mossy Oak’s Breakup Country and Shadow Grass camo patterns. A 3,500 lb. Warn winch, brush guard and front cargo rack come standard. This XTV can carry up to 755 lbs. and 6 people on land, 655 lbs. and four people on water. It can also tow up to 1,200 lbs.

2019 Frontier 750 Scout 8×8 Overview

  • 26HP V-Twin EFI Fan Cooled Engine
  • Classic High Torque or Standard Transmission
  • Steel Offset Rims with 24” tires
  • 3500 lb. winch with steel cable
  • Brushguard
  • Front Rack
  • Tail Lights
  • Breakup Country Camo or Shadow Grass Blades Camo

2019 Frontier 750 Scout 8×8 Colors

swatch-shadowgrass

2019 Frontier 750 Scout 8×8 Specs

HORSEPOWER 26HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES MECHANICAL
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN STANDARD
TRANSMISSION CLASSIC
TRANSMISSION OPTION ST OR HT
HD DRIVE BELT —–
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 3,500 LB. WARN WINCH
FRONT RACK STANDARD
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 755 LB. (343 KG)
LOAD CAPACITY – WATER 655 LB. (297 KG)
TOWING CAPACITY 1,200 LB. (544 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 22 MPH (35 KM/H)
SPEED – LAND (HT TRANSMISSION) 19 MPH (30 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1295 LB. (587 KG)
LENGTH 102 IN (2,591 MM)
WIDTH 58 IN (1,473 MM)
HEIGHT 52.5 IN (1,334 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES ARGO AT189 24X10-8
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 2.5 PSI (17.2 KPA)
GROUND PRESSURE (TRACKS)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 10.5 IN (267 MM)
WARRANTY 1 YEAR
COLORS BREAKUP COUNTRY CAMO/SHADOW GRASS CAMO

2019 Frontier 750 Scout 8×8 Downloads

2019 Argo Frontier Series Brochure 1.02 MB 14 downloads

...
