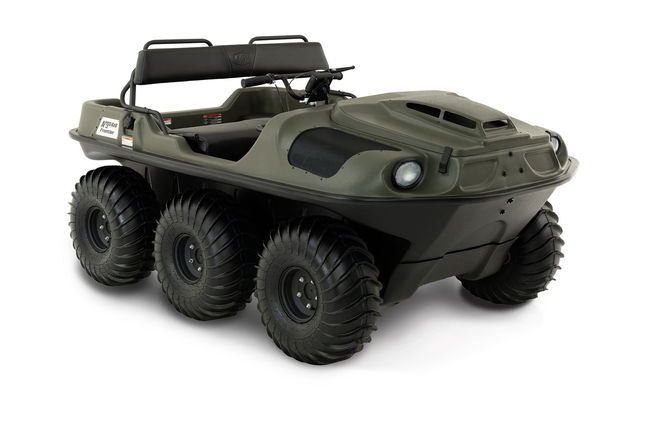

2019 Frontier 600 6×6

Argo Frontier-600-6x6-tundra

2019 Frontier 600 6×6

The 600 may be Argo’s most basic model, but it still delivers the full XTV experience. This model comes with a carburetor-fed 18 hp Vanguard V-Twin and can reach a top speed of 22 mph on land and 3 mph in water. It can carry up to 650 lbs. and four people on land and up to 450 lbs. and two people on water. It can also tow up to 1,200 lbs. This year, a bilge pump is included as standard equipment.

2019 Frontier 600 6×6 Overview

  • 18HP V-Twin Carbed Fan Cooled Engine
  • Classic Standard Transmission
  • Steel Offset Rims with 24” tires
  • Color: Green

2019 Frontier 600 6×6 Colors

swatch-tundra-green

2019 Frontier 600 6×6 Specs

HORSEPOWER 18HP
CYLINDER V-TWIN
FUEL SYSTEM CARBURETOR
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES MECHANICAL
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION CLASSIC
TRANSMISSION OPTION ST
HD DRIVE BELT —–
FULL SKID PLATE STANDARD
BRUSHGUARD —–
WINCH —–
FRONT RACK —–
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 650 LB. (295 KG) W/ MAX 140 LB. (64 KG) IN REAR
LOAD CAPACITY – WATER 450 LB. (204 KG)
TOWING CAPACITY 1,200 LB. (544 KG)
SEATING CAPACITY – LAND 4
SEATING CAPACITY – WATER 2
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 22 MPH (35 KM/H)
SPEED – LAND (HT TRANSMISSION) 19 MPH (30 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 900 LB. (408 KG)
LENGTH 95 IN (2,413 MM)
WIDTH 58 IN (1,473 MM)
HEIGHT 45.8 IN (1,163 MM)
AXLE BEARING EXTENSIONS —–
ENTRY STEP —–
TIRES ARGO AT189 24X10-8
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 10.5 IN (267 MM)
WARRANTY 1 YEAR
COLORS GREEN

2019 Frontier 600 6×6 Downloads

2019 Argo Frontier Series Brochure 1.02 MB 14 downloads

...
