2019 Frontier 700 6×6

2019 Frontier 700 6×6

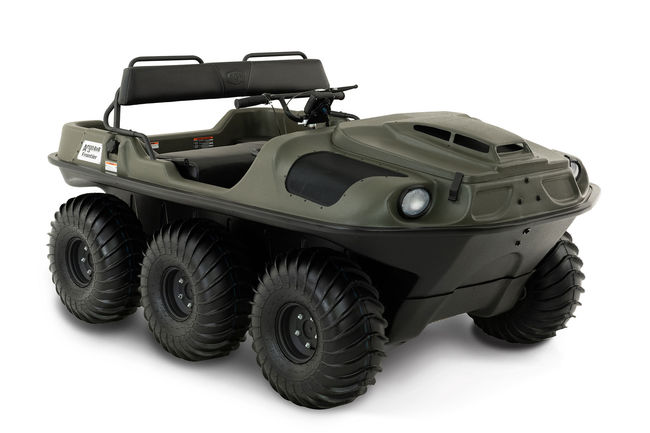

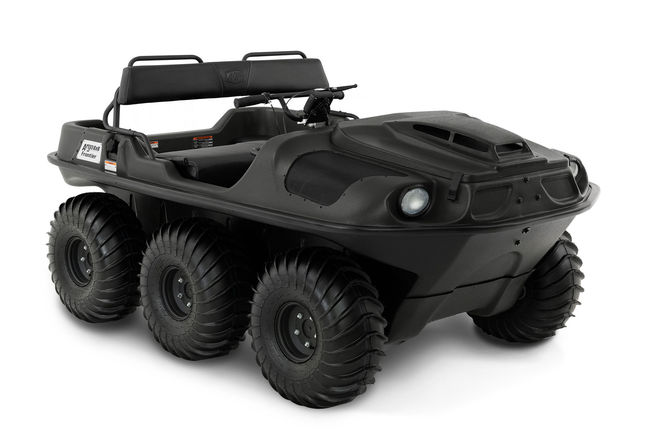

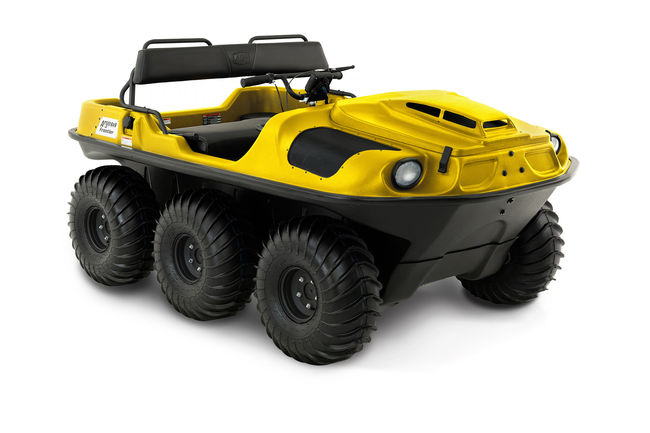

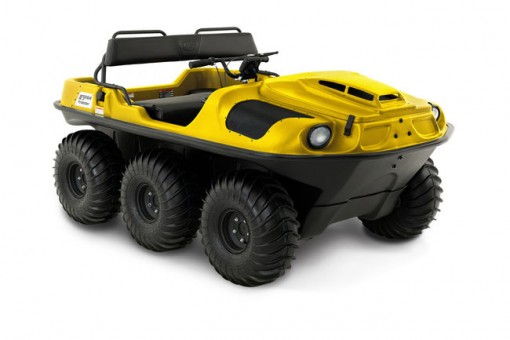

A 23 hp fuel-injected Vanguard V-twin provides easy starting in all weather conditions, while the classic transmission and ST gearing lets the 700 reach 22 mph on land and 3 mph in water. This XTV can carry up to 635 lbs. and four people on land and 435 lbs. with two people on water. Towing capacity is 1,200 lbs. Argo offers the 700 in green, black, blue and yellow.

2019 Frontier 700 6×6 Overview

  • 23HP V-Twin EFI Fan Cooled Engine
  • Classic Standard Transmission
  • Steel Offset Rims with 24” tires
  • Colors: Green, Black, Yellow or Blue

2019 Frontier 700 6×6 Colors

swatch-black swatch-blue swatch-tundra-green swatch-yellow

2019 Frontier 700 6×6 Specs

HORSEPOWER 23HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES MECHANICAL
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION CLASSIC
TRANSMISSION OPTION ST
HD DRIVE BELT —–
FULL SKID PLATE STANDARD
BRUSHGUARD —–
WINCH —–
FRONT RACK —–
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 635 LB. (288 KG) W/ MAX 140 LB. (64 KG) IN REAR
LOAD CAPACITY – WATER 435 LB. (197 KG)
TOWING CAPACITY 1,200 LB. (544 KG)
SEATING CAPACITY – LAND 4
SEATING CAPACITY – WATER 2
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 22 MPH (35 KM/H)
SPEED – LAND (HT TRANSMISSION) 19 MPH (30 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 915 LB. (415 KG)
LENGTH 95 IN (2,413 MM)
WIDTH 58 IN (1,473 MM)
HEIGHT 45.8 IN (1,163 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES ARGO AT189 24X10-8
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 10.5 IN (267 MM)
WARRANTY 1 YEAR
COLORS GREEN/BLACK/BLUE/YELLOW

2019 Frontier 700 6×6 Downloads

2019 Argo Frontier Series Brochure 1.02 MB 14 downloads

...
