2022 CONQUEST PRO 800 XT-L

2022 CONQUEST PRO 800 XT-L

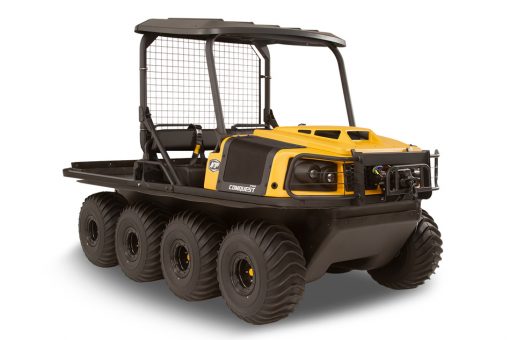

The Argo Conquest Pro 800 XT-L is identical to the 800 XT, but includes the extra security of a roll over protection structure (ROPS). Not only that, but the ROPS features a hard-top roof to keep the rain off your head and a tough wire mesh down the back to protect you when equipment slides around back there. Everything about the Conquest Pro is both professional/commercial-grade and conquest ready. It features the Argo Admiral transmission with triple differential, a new instant torque clutch, the Argo 800 series 30 horsepower engine which is electronic fuel injected (EFI) and liquid cooled. The 25″ all terrain tires are mounted on 9″ AirLock steel rims and mounted on oil bath hubs. This Argo is designed for a crew of 2, with the power and space to haul all their tools and gear too. A new fuel level display is included on the premium control guage so you know how to best plan the rest of the workday. A 4,500 lb. Warn winch and brushguard come mounted to the front as standard necessities. A powered dump box is an accessory that can be easily added to the 800 XT-L, if work demands it. This Argo comes in either a tough green color or industrial yellow.

2022 CONQUEST PRO 800 XT-L Overview

  • 800 Series (30HP EFI Liquid Cooled)
  • 60 AMP Max Output Alternator
  • Admiral Transmission with Triple Differential
  • New Instant Torque Clutch (ITC)
  • New Quieter Muffler
  • 25″ Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • New 8.5 gal Steel Fuel Tank
  • New Fuel Level Display on Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Roll Over Protection Structure (ROPS)
  • Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics

2022 CONQUEST PRO 800 XT-L Colors

  • Green
  • Industrial Yellow

2022 CONQUEST PRO 800 XT-L Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ADMIRAL
DRIVE BELT HEAVY DUTY
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4,500 LB. WARN WINCH
FRONT RACK ACCESSORY
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME N/A
REAR MESH STANDARD
ROOF STANDARD
POWER DUMP BOX ACCESSORY
LOAD CAPACITY – LAND 1,048 lb (475 kg)
LOAD CAPACITY – WATER NOT AMPHIBIOUS
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER N/A
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 17 mph (27 Km/h)
SPEED – WATER N/A
WEIGHT 2,052 lb (931 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 80.5 in (2,045 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT1 19 25X12-9
RIMS STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN/INDUSTRIAL YELLOW
