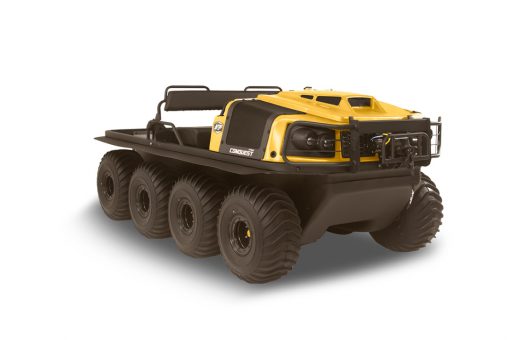

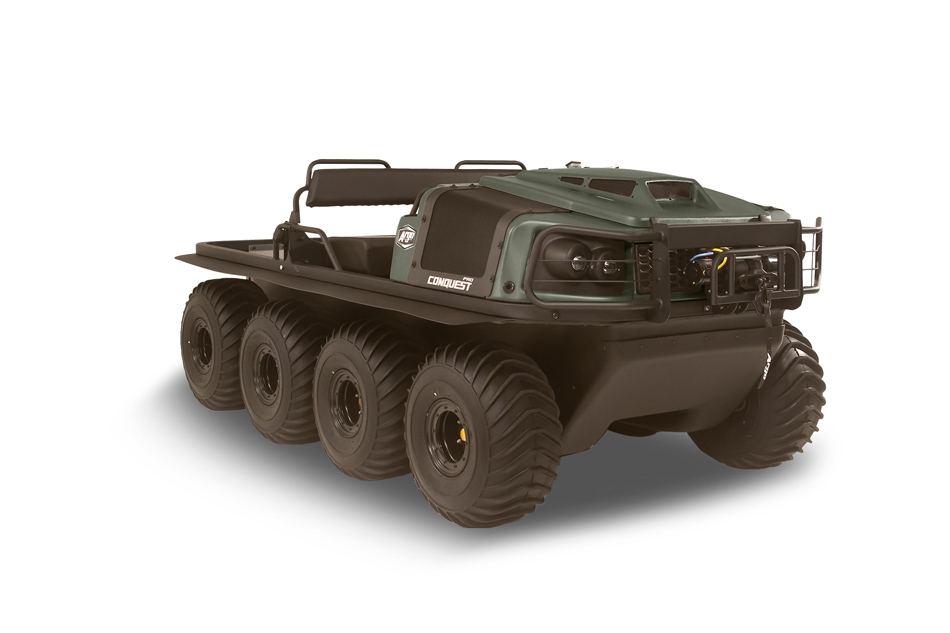

2022 CONQUEST PRO 800 XT

2022 CONQUEST PRO 800 XT

The Argo Conquest Pro 800 XT is thoroughly designed for hard work in extreme situations. Everything about the Conquest Pro is both professional/commercial-grade and conquest ready. It features the Argo Admiral transmission with triple differential, a new instant torque clutch, the Argo 800 series 30 horsepower engine which is electronic fuel injected (EFI) and liquid cooled. The 25″ all terrain tires are mounted on 9″ AirLock steel rims and mounted on oil bath hubs. This Argo is designed for a crew of 2, with the power and space to haul all their tools and gear too. A new fuel level display is included on the premium control guage so you know how to best plan the rest of the workday. A 4,500 lb. Warn winch and brushguard come mounted to the front as standard necessities. A powered dump box is an accessory that can be easily added to the 800 XT, if work demands it. This Argo comes in either a tough green color or industrial yellow.

2022 CONQUEST PRO 800 XT Overview

  • 800 Series (30HP EFI Liquid Cooled)
  • 60 AMP Max Output Alternator
  • Admiral Transmission with Triple Differential
  • New Instant Torque Clutch (ITC)
  • New Quieter Muffler
  • 25″ Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • New 8.5 gal Steel Fuel Tank
  • New Fuel Level Display on Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics

2022 CONQUEST PRO 800 XT Colors

  • Green
  • Industrial Yellow

2022 CONQUEST PRO 800 XT Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ADMIRAL
DRIVE BELT HEAVY DUTY
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4,500 LB. WARN WINCH
FRONT RACK ACCESSORY
BILGE PUMP STANDARD
ROPS ACCESSORY
STRETCHER FRAME N/A
REAR MESH ACCESSORY
ROOF ACCESSORY
POWER DUMP BOX ACCESSORY
LOAD CAPACITY – LAND 1,210 lb (549 kg)
LOAD CAPACITY – WATER 510 lb (231 kg)
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 17 mph (27 Km/h)
SPEED – WATER N/A
WEIGHT 1,890 lb (857 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 49 in (1,245 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT1 19 25X1 2-9
RIMS STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN/BLACK/INDUSTRIAL YELLOW
