Name: Shank's Argo
Price range: $$$

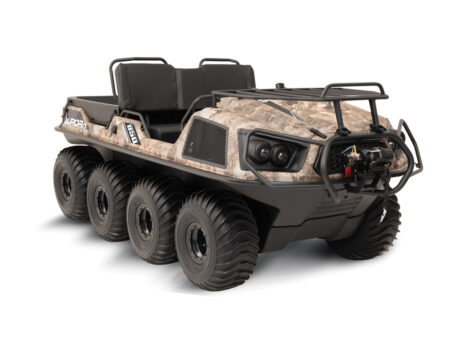

The Argo Aurora Huntmaster comes with 3 different engine options. This one has the torquey new LX 850 V-Twin engine. As master of the hunt (and all other wilderness adventure) the Huntmaster features TrueTimber Prairie Camo styling. A 3,500 lb. winch comes as a standard accessory on this beast for whatever pulling and positioning you may need in the wilderness. Ask our friendly team at Shank’s Argo for more information about this Argo. They’ll be happy to answer any questions you may have.

Overview
Colors
Specs
Downloads

2023 Aurora 850 Huntmaster Overview

LX 850 V-Twin Engine
ODG Admiral Transmission
ARGO Progressive Steering (APS)
Instant Torque Clutch (ITC)
25″ Low Pressure Tires
9″ AirLock™ Steel Rims
Heavy-Duty Front Brushguard
Heavy_Duty Steel Front Rack
Steel Fuel Tank
Premium Gauge
Dual Hi/Low Projector Beam Headlights
Hi-Vis LED Taillights
Rear Cargo Box
3,500 lb Winch
Premium HDPE Body Plastics
Color: TrueTimber® Prairie Camo

2023 Aurora 850 Huntmaster Colors

TrueTimber Prairie Camo

2023 Aurora 850 Huntmaster Specs

ENGINE	LX 850
CYLINDER	V-TWIN
FUEL SYSTEM	CARBURETOR
COOLING	FAN COOLED
ALTERNATOR OUTPUT (MAX)	20 AMPS
SERVICE BRAKES	HYDRAULIC
STEERING BRAKES	HYDRAULIC
AUTO CHAIN LUBRICATION	ACCESSORY
BRAKE COOLING FAN	ACCESSORY
TRANSMISSION	ODG ADMIRAL W/APS
DRIVE BELT	STANDARD
FULL SKID PLATE	STANDARD
BRUSHGUARD	STANDARD
WINCH	3,500 LB
FRONT RACK	STANDARD
CARGO BOX	STANDARD
BILGE PUMP	STANDARD
ROPS	NA
STRETCHER FRAME	ACCESSORY
REAR MESH	N/A
ROOF	N/A
POWER DUMP BOX	N/A
LOAD CAPACITY – LAND	990 lb (449 kg)
LOAD CAPACITY – WATER	790 lb (358 kg)
TOWING CAPACITY	1,800 lb (816 kg)
SEATING CAPACITY – LAND	6
SEATING CAPACITY – WATER	4
FUEL CAPACITY	8.5 gal (32 L)
SPEED – LAND	25 mph (40 Km/h)
SPEED – WATER	3 mph (5 Km/h)
WEIGHT	1,560 lb (708 kg)
LENGTH (includes winch when standard)	126 in (3,200 mm)
WIDTH	60 in (1,524 mm)
HEIGHT	51 in (1,295 mm)
AXLE BEARING EXTENSIONS	STANDARD
ENTRY STEP	ACCESSORY
TIRES	ARGO XT117 25X12-9
WHEEL	STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS)	0.88 psi (6.1 kPa)
GROUND CLEARANCE (TIRES)	10 in (254 mm)
GROUND CLEARANCE (TRACKS)	11 in (279 mm)
WARRANTY	1 YEAR
COLORS	TRUETIMBER PRAIRIE CAMO

2023 Aurora 850 Huntmaster Downloads

Download

2023 Aurora 850 Huntmaster Specification Brochure 338.62 KB 7 downloads
...
