2023 Aurora 850 R

2023 Aurora 850 R

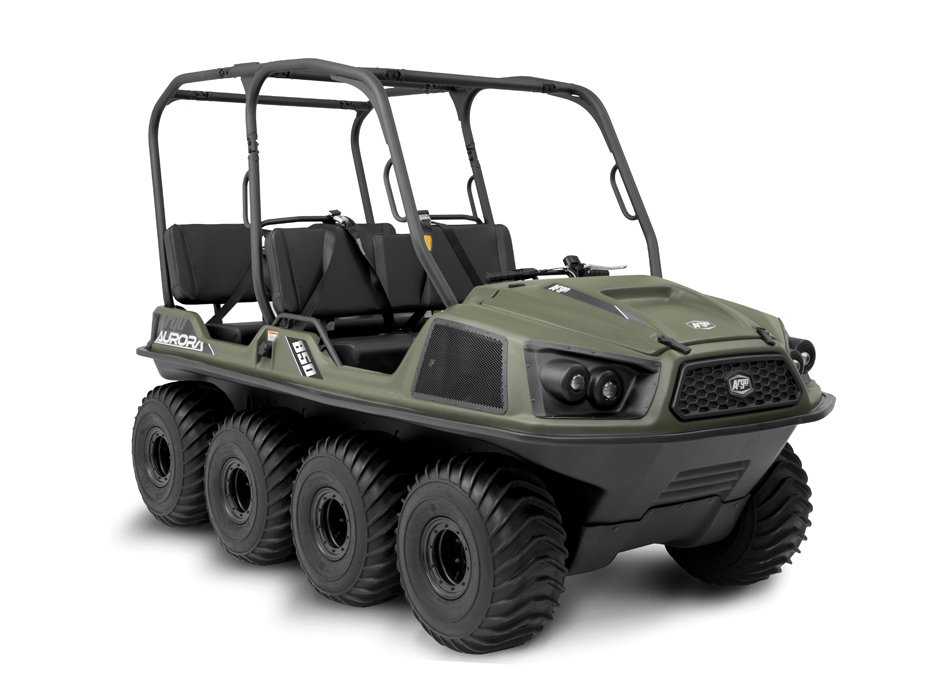

The Aurora 850 R is a go anywhere Argo with a rollover protective structure for extra protection overhead. Boasting the newly designed Argo LX 850 V-Twin engine and the Argo Admiral Transmission with APS, very little stands in the way of true adventure. Like the other Auroras, this one rolls on eight low-pressure tires that provide mobility on land, or in the water, mud or snow.

2023 Aurora 850 R Overview

  • LX 850 V-Twin Engine
  • ODG Admiral Transmission
  • ARGO Progressive Steering (APS)
  • Instant Torque Clutch (ITC)
  • 25″ Tires
  • 9″ AirLock™ Steel Rims
  • Side Seats
  • Front & Rear Flat Floor with Rubber Mats
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Hi-Vis LED Taillights
  • Heat-Reflective Firewall
  • Roll-Over Protection Structure (ROPS)
  • Premium HDPE Body Plastics
  • Color: Green, Black, Orange

2023 Aurora 850 R Colors

  • Green
  • Black
  • Orange

2023 Aurora 850 R Specs

ENGINE LX 850
CYLINDER V-TWIN
FUEL SYSTEM CARBURETOR
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION ACCESSORY
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL W/APS
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD ACCESSORY
WINCH ACCESSORY
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME ACCESSORY
REAR MESH N/A
ROOF N/A
POWER DUMP BOX N/A
LOAD CAPACITY – LAND 870 lb (395 kg)
LOAD CAPACITY – WATER 670 lb (304 kg)
TOWING CAPACITY 1,800 lb (816 kg)
SEATING CAPACITY – LAND 4
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 25 mph (40 Km/h)
SPEED – WATER N/A
WEIGHT 1,680 lb (762 kg)
LENGTH (includes winch when standard) 119 in (3,023 mm)
WIDTH 60 in (1,524 mm)
HEIGHT 77 in (1,956 mm)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP ACCESSORY
TIRES ARGO XT117 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 0.88 psi (6.1 kPa)
GROUND CLEARANCE (TIRES) 10 in (254 mm)
GROUND CLEARANCE (TRACKS) 11 in (279 mm)
WARRANTY 1 YEAR
COLORS GREEN, BLACK, ORANGE
