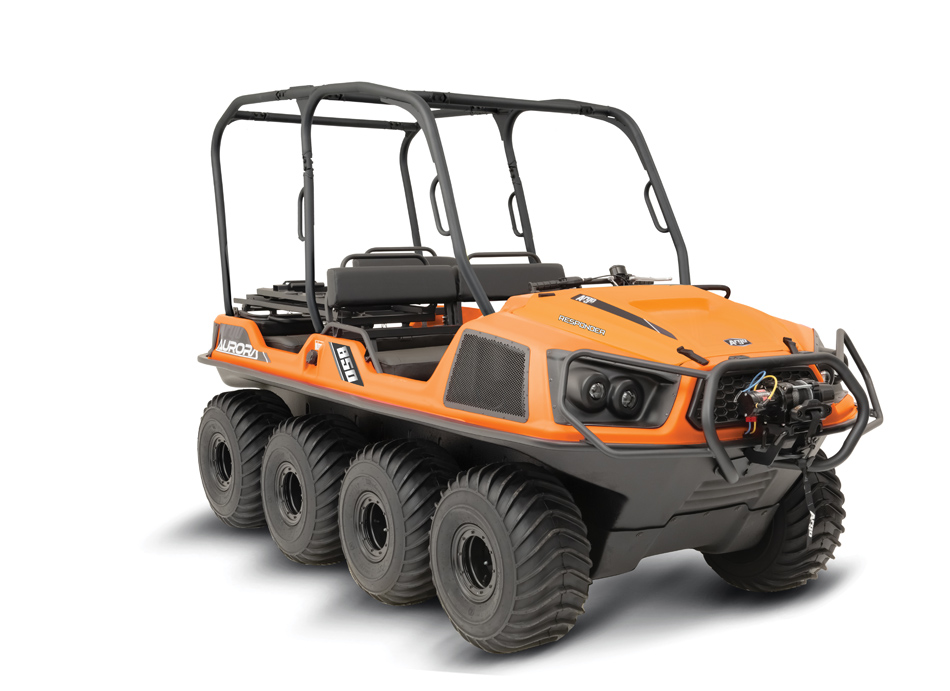

2023 Aurora 850 Responder R

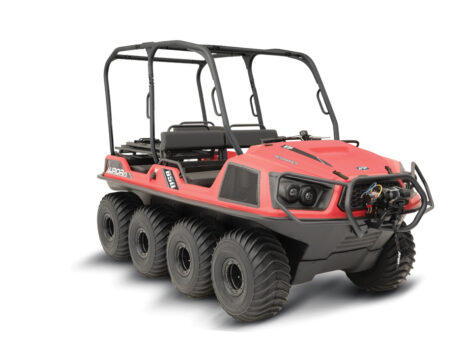

2023 Aurora 850R Responder red
2023 Aurora 850R Responder orange

2023 Aurora 850 Responder R

This premium first-responder vehicle enables EMS teams perform rescues in very difficult to reach areas: swamps, lakes, mountains, etc. It comes with a split seat configuration that allows flexible seating arrangements and space for the stretcher mount that comes with the vehicle. A powerful front winch can be used for moving equipment or debris out of the way. Overhead, a Rollover Protective Structure (ROPS) provides extra hand holds for the team as well as extra protection in case of vehicle instability.

Contact Us

2023 Aurora 850 Responder R Overview

  • LX 850 V-Twin Engine
  • ODG Admiral Transmission
  • ARGO Progressive Steering (APS)
  • Instant Torque Clutch (ITC)
  • 25″ Tires
  • 9″ AirLock™ Steel Rims
  • Split Seats
  • Front & Rear Flat Floor with Rubber Mats
  • Steel Fuel Tank
  • Premium Gauge
  • Heavy-Duty Front Brushguard
  • Dual Hi/Low Projector Beam Headlights
  • Hi-Vis LED Taillights
  • Stretcher Mount
  • Heat-Reflective Firewall
  • 3,500 lb Winch
  • Roll-Over Protection Structure (ROPS)
  • Premium HDPE Body Plastics
  • Color: Red, Orange

2023 Aurora 850 Responder R Colors

  • Orange
  • Red

2023 Aurora 850 Responder R Specs

ENGINE LX 850
CYLINDER V-TWIN
FUEL SYSTEM CARBURETOR
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION ACCESSORY
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL W/APS
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 3,500 LB
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME STANDARD
REAR MESH N/A
ROOF N/A
POWER DUMP BOX N/A
LOAD CAPACITY – LAND 730 lb (395 kg)
LOAD CAPACITY – WATER 530 lb (304 kg)
TOWING CAPACITY 1,800 lb (816 kg)
SEATING CAPACITY – LAND 4
SEATING CAPACITY – WATER 3
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 25 mph (40 Km/h)
SPEED – WATER N/A
WEIGHT 1,820 lb (762 kg)
LENGTH (includes winch when standard) 126 in (3,200 mm)
WIDTH 60 in (1,524 mm)
HEIGHT 77 in (1,956 mm)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP ACCESSORY
TIRES ARGO XT117 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 0.88 psi (6.1 kPa)
GROUND CLEARANCE (TIRES) 10 in (254 mm)
GROUND CLEARANCE (TRACKS) 11 in (279 mm)
WARRANTY 1 YEAR
COLORS Red, ORANGE

2023 Aurora 850 Responder R Downloads

Download

2023 Aurora 850 Responder R Specification Brochure 472.18 KB 12 downloads

...
