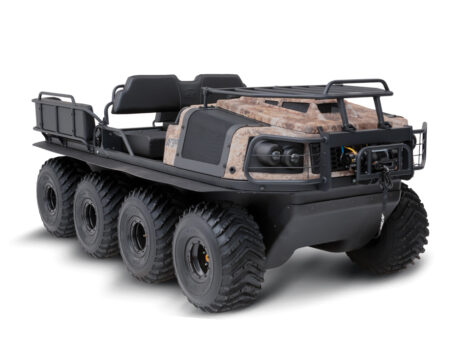

2023 Conquest 800 Outfitter

2023 Conquest 800 Outfitter

2023 Conquest 800 Outfitter

Hunters, fishermen, lodge owners, and wilderness guides all love the Argo Conquest Outfitter. It’s the perfect XTV for wilderness mobility and transport. Two engine options are available for the Outfitter; this particular model features the KX 800 V-Twin Liquid-Cooled engine. Paired with an Argo Instant Torque Clutch and Admiral Transmission, this beast has it all when it comes to an adventuresome spirit. A heavy-duty steel rack allows you to haul more gear, and the big 4,500 lb. winch is there if you need to drag debris, equipment, or big game anywhere. Other features include Argo-exclusive mud tires, a fully amphibious body, and TrueTimber Prairie Camo styling.

2023 Conquest 800 Outfitter Overview

  • KX 800 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Rear Side Seats
  • Front Flat Floor
  • Heavy-Duty Front Brushguard
  • Heavy-Duty Steel Front Rack
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Axles
  • 4,500 lb. Winch
  • Color: TrueTimber® Prairie Camo

2023 Conquest 800 Outfitter Colors

  • TrueTimber Prairie Camo

2023 Conquest 800 Outfitter Specs

ENGINE KX 800
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK STANDARD
CARGO BOX NA
BILGE PUMP STANDARD
ROPS N/A
STRETCHER FRAME N/A
REAR MESH N/A
ROOF N/A
POWER DUMP BOX N/A
LOAD CAPACITY – LAND 1,170 lb (531 kg)
LOAD CAPACITY – WATER 470 lb (213 kg)
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 12 mph (19 Km/h)
SPEED – WATER N/A
WEIGHT 1,930 lb (875 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 53 in (1,346 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP DUAL REAR ENTRY STEPS
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS TRUETIMBER PRAIRIE CAMO
