2023 Conquest 800 XT-X

2023 Conquest 800 XT-X

This brute of an Argo is equipped with everything you need to get to remote job sites. That means all the XTV brawn of an Argo, plus a feature that’s unique to the Conquest XT-X: a powered dump box that’s mounted on the back. Other integrated features include a ROPS system with a hardtop roof and a protective mesh down the back. This hardworking Argo can take you, your crew, and all your tools to the jobsite no matter the terrain.

2023 Conquest 800 XT-X Overview

  • KX 800 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • Quiet Muffler
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Roll-Over Protection Structure (ROPS)
  • Brushguard with 4,500 lb Winch
  • Power Dump Box
  • Premium HDPE Body Plastics

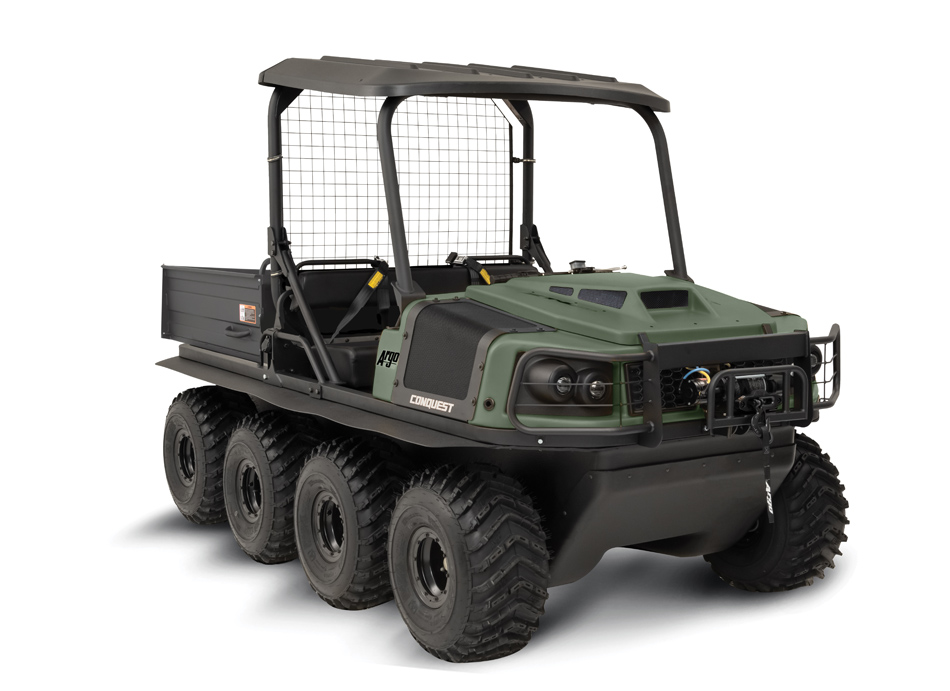

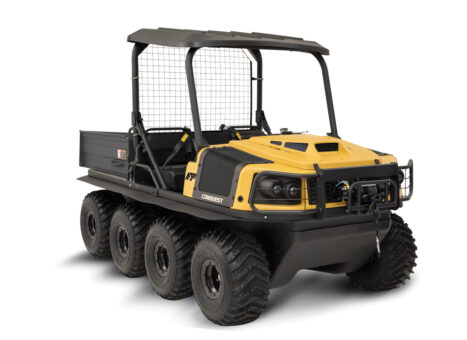

  • Colors: Green, Industrial Yellow

2023 Conquest 800 XT-X Colors

  • Tundra Green
  • Industrial Yellow

2023 Conquest 800 XT-X Specs

ENGINE KX 800
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME N/A
REAR MESH STANDARD
ROOF STANDARD
POWER DUMP BOX STANDARD
LOAD CAPACITY – LAND 848 lb (385 kg)
LOAD CAPACITY – WATER NOT AMPHIBIOUS
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER N/A
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 12 mph (19 Km/h)
SPEED – WATER N/A
WEIGHT 2,252 lb (1,021 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 80.5 in (2,045 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN, INDUSTRIAL YELLOW
