2023 Conquest 950 XT-L

2023 Conquest 950 XT-L

The Conquest 950 XT-L is as Argo as anything. It can also go pretty much anywhere and for that reason is the indispensable vehicle for crews that work out in the wilderness somewhere: utility linemen, mining specialists, forestry workers, spraying crews and scientific researchers. This Conquest has the big VX 950 V-Twin engine, 25 inch Argo-exclusive mud tires, a powerful front winch, and a protective ROPS with a hard roof for protection from the blazing sun and rain. Check out the additional specs given below!

2023 Conquest 950 XT-L Overview

  • VX 950 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • Quieter Muffler
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Roll-Over Protection Structure (ROPS)
  • Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics
  • Colors: Green, Industrial Yellow

2023 Conquest 950 XT-L Colors

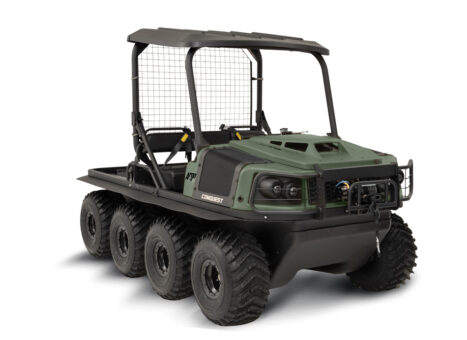

  • Tundra Green

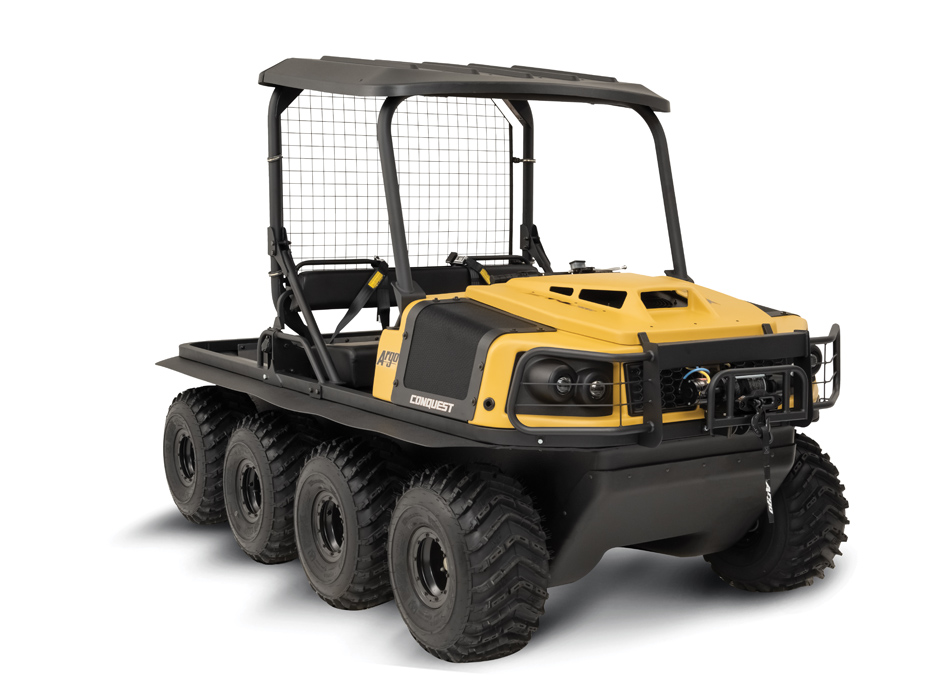

  • Industrial Yellow

2023 Conquest 950 XT-L Specs

ENGINE VX 950
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 50 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME N/A
REAR MESH STANDARD
ROOF STANDARD
POWER DUMP BOX ACCESSORY
LOAD CAPACITY – LAND 1,048 lb (475 kg)
LOAD CAPACITY – WATER NOT AMPHIBIOUS
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER N/A
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 17 mph (26 Km/h)
SPEED – WATER N/A
WEIGHT 2,052 lb (931 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 80.5 in (2,045 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN, INDUSTRIAL YELLOW
