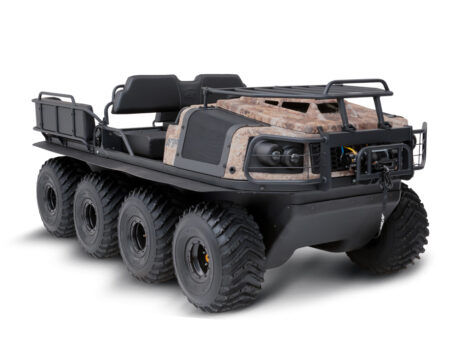

2023 Conquest 950 Outfitter

2023 Conquest 950 Outfitter

2023 Conquest 950 Outfitter

This is the larger of the two Conquest Outfitter models. It is a true Argo: amphibious, adventuresome, and amazing! Powered by a growling VX 950 V-Twin EFI engine and seamless Instant Torque Clutch. Crawls on 25 inch mud tires with a chevron tread design that is optimized for mud, water, and land travel. The front-mounted winch enables you to drag anything that won’t move otherwise, and the beautifully realistic TrueTimber Prairie Camo styling lets you blend right into the wilderness. Get in touch with someone from our friendly Shanks Argo team to learn more about this Argo!

2023 Conquest 950 Outfitter Overview

  • VX 950 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Rear Side Seats
  • Front Flat Floor
  • Heavy-Duty Front Brushguard
  • Heavy-Duty Steel Front Rack
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Axles
  • 4,500 lb. Winch
  • Color: TrueTimber® Prairie Camo

2023 Conquest 950 Outfitter Colors

  • TrueTimber Prairie Camo

2023 Conquest 950 Outfitter Specs

ENGINE VX 950
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 50 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK STANDARD
CARGO BOX NA
BILGE PUMP STANDARD
ROPS N/A
STRETCHER FRAME N/A
REAR MESH N/A
ROOF N/A
POWER DUMP BOX N/A
LOAD CAPACITY – LAND 1,170 lb (531 kg)
LOAD CAPACITY – WATER 470 lb (213 kg)
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 17 mph (27 Km/h)
SPEED – WATER N/A
WEIGHT 1,930 lb (875 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 53 in (1,346 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP DUAL REAR ENTRY STEPS
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS TRUETIMBER PRAIRIE CAMO
