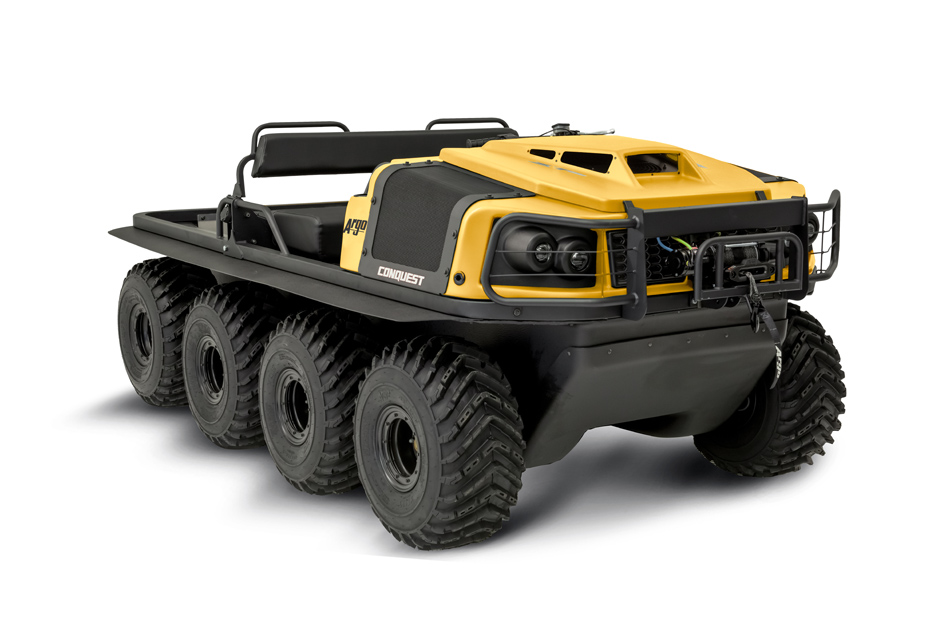

2023 Conquest 950 XT

2023 Conquest 950 XT

This Argo Conquest is an amphibious workhorse with extra power. Equipped with a powerful VX 950 V-Twin engine, this one has all the power you might need. Power line maintenance teams, mining experts, scientist explorers and outdoorsmen of all trades depend on the Argo Conquest to take them to remote job sites that are way out there. This is an amphibious Argo extreme terrain vehicle with the guts to get any job done.

2023 Conquest 950 XT Overview

  • VX 950 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • Quiet Muffler
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics
  • Colors: Green, Industrial Yellow

2023 Conquest 950 XT Colors

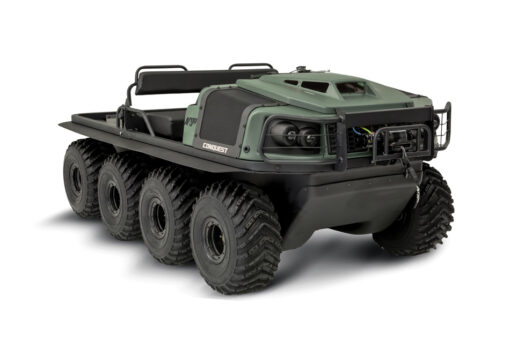

  • Tundra Green
  • Industrial Yellow

2023 Conquest 950 XT Specs

ENGINE VX 950
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 50 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS ACCESSORY
STRETCHER FRAME N/A
REAR MESH ACCESSORY
ROOF ACCESSORY
POWER DUMP BOX ACCESSORY
LOAD CAPACITY – LAND 1,210 lb (549kg)
LOAD CAPACITY – WATER 510 lb (231 kg)
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 17 mph (27 Km/h)
SPEED – WATER N/A
WEIGHT 1,890 lb (857 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 49 in (1,245 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN, INDUSTRIAL YELLOW

2023 Conquest 950 XT Downloads
