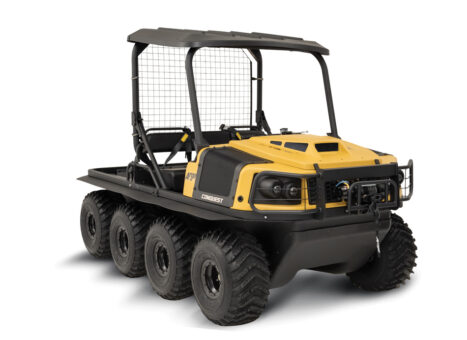

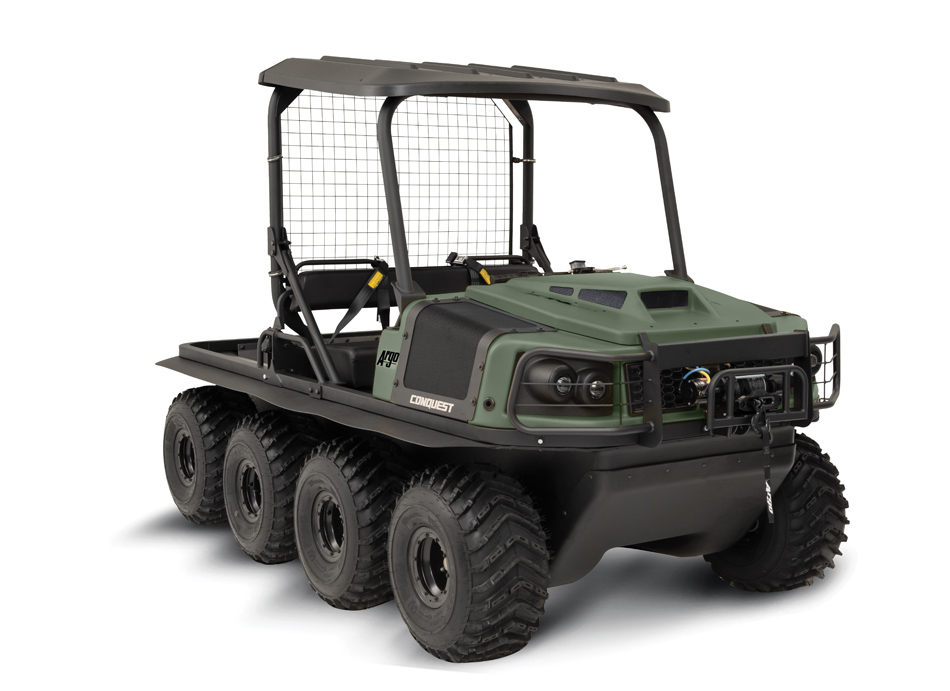

2023 Conquest 800 XT-L

2023 Conquest 800 XT-L

Built for work crews who need equipment that can be relied on even in extreme situations, this Conquest packs all the features of a true work vehicle. It’s powered by the KX 800 electronic fuel injected liquid-cooled engine. All that power is sent to the 8 big tires through an advanced drive system that includes the Argo Instant Torque Clutch and Admiral Transmission. This Argo XTV comes with a protective ROPS, rear safety mesh, and a hard-top roof for extra protection out in the blazing sun. Get in touch with the Shanks Argo team to learn more about the Conquest 800 XT-L.

2023 Conquest 800 XT-L Overview

  • KX 800 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • Quiet Muffler
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics
  • Roll-Over Protection Structure (ROPS)
  • Color: Industrial Yellow, Green

2023 Conquest 800 XT-L Colors

  • Tundra Green
  • Industrial Yellow

2023 Conquest 800 XT-L Specs

ENGINE KX 800
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME N/A
REAR MESH STANDARD
ROOF STANDARD
POWER DUMP BOX ACCESSORY
LOAD CAPACITY – LAND 1,048 lb (475 kg)
LOAD CAPACITY – WATER NOT AMPHIBIOUS
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER N/A
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 12 mph (19 Km/h)
SPEED – WATER N/A
WEIGHT 2,052 lb (931 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 80.5 in (2,045 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN, INDUSTRIAL YELLOW
