2023 Magnum XF 500 LE Side by Side

Flaming Orange Argo Magnum XF 500 LE Side by Side

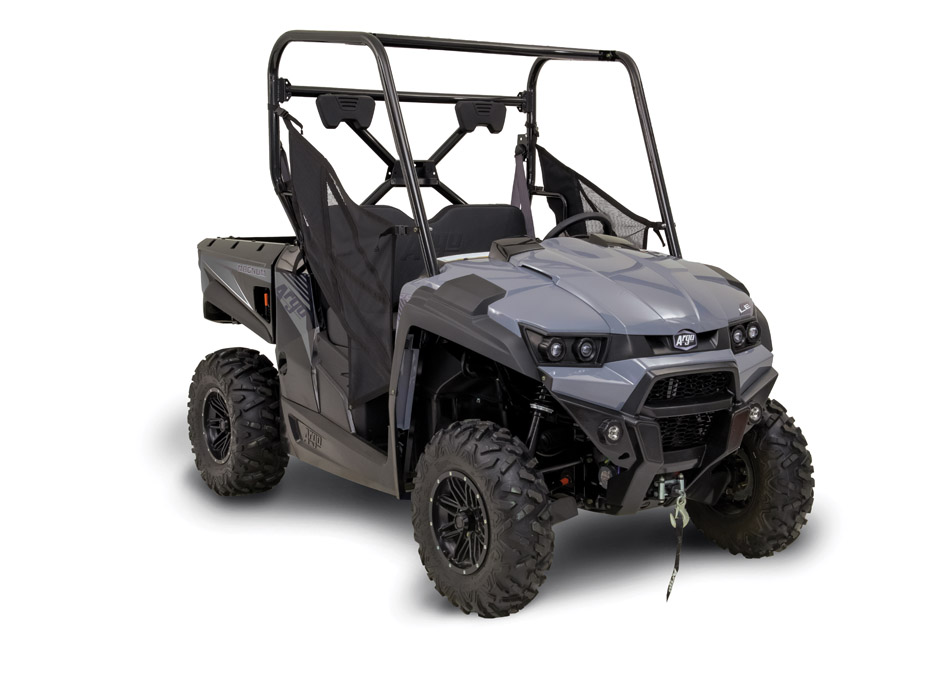

Slate Grey Argo Magnum XF 500 LE Side by Side

2023 Magnum XF 500 LE Side by Side

This LE version of the Magnum XF 500 boasts some extra powers. It comes with a 3,000 lb. winch mounted up front, and electric power steering for enhanced control. Aluminum rims and premium painted body panels give this Magnum LE its super-good looks. But it goes far deeper: the ready-set-go 443cc liquid-cooled EFI engine, automatic CVT transmision, hydraulic disc brakes, a 441 lb. rear cargo box with a tilt-assist shock, tilt steering wheel, and lots of space to haul people and cargo. This is one tough and capable side by side. It can only be an Argo.

Contact Us

2023 Magnum XF 500 LE Side by Side Overview

  • 443cc Liquid-Cooled 4-Stroke EFI Engine
  • Automatic CVT with Engine Braking
  • Electric Power Steering (EPS)
  • 25″ Tires with Aluminum Rims
  • Front & Rear Independent Double A-Arm Suspension
  • Electronic 2WD/4WD with Front Differential Lock
  • Front & Rear Hydraulic Disc Brakes
  • 1,200 lb Towing Capacity with 2″ Receiver
  • 441 lb Rear Cargo Box with Tilt Assist Shock
  • Rubber Cargo Box Mat
  • Adjustable Tilt Steering Wheel
  • Front Bumper
  • Dash, Underseat, Underhood and Tailgate Storage Areas
  • 3,000 lb Winch
  • Premium Painted Plastic Body Panels
  • Colors: Painted Flame Orange, Painted Slate Grey

2023 Magnum XF 500 LE Side by Side Colors

  • Flame Orange
  • Slate Grey

2023 Magnum XF 500 LE Side by Side Specs

DISPLACEMENT 443CC
ENGINE STROKE 4-STROKE
CYLINDER ARRANGEMENT SOHC SINGLE-CYLINDER
VALVE CONFIGURATION 4 VALVE
FUEL SYSTEM EFI
COOLING SYSTEM LIQUID
BORE X STROKE 89 X 71.2 MM
COMPRESSION RATIO 9.1:1
START METHOD ELECTRIC START
IGNITION ECU
OVER RIDE BUTTON STANDARD
TRANSMISSION TYPE CVT AUTOMATIC
FINAL DRIVE SHAFT DRIVE
DIFFERENTIAL FUNCTION FRONT DIFFERENTIAL
DRIVE SYSTEM TYPE ELECTRONIC 2WD/ 4WD /LOCK
ELECTRIC DIFF LOCK YES
GEAR SELECTION H/L/N/R/P
REVERSE YES
ENGINE BRAKING SYSTEM (EBS) STANDARD
LENGTH 106.3 IN (2,700 MM)
WIDTH 56.7 IN (1,440 MM)
HEIGHT 72.8 IN (1,850 MM)
SEAT HEIGHT 32.9 IN (836 MM)
GROUND CLEARANCE 10 IN (254 MM)
WHEELBASE 72 IN (1,829 MM)
TOWING CAPACITY 1,200 LBS (545.5 KG)
DRY WEIGHT 1,025 LBS (465 KG)
WET WEIGHT 1,080 LBS (490 KG)
FUEL TANK CAPACITY 8.5 GAL (32 L)
RIDER CAPACITY 2
SUSPENSION – FRONT INDEPENDENT DOUBLE A-ARM
SUSPENSION – REAR INDEPENDENT DOUBLE A-ARM
SUSPENSION TRAVEL – FRONT 6.9 IN (176 MM)
SUSPENSION TRAVEL – REAR 6.8 IN (172 MM)
BRAKE – FRONT DUAL HYDRAULIC DISC
BRAKE – REAR HYDRAULIC DISC
FOOT BRAKE YES
TIRE SIZE (FRONT) AT25X8-12 (DURO)
TIRE SIZE (REAR) AT25X10-12 (DURO)
WHEEL RIM ALUMINUM
ELECTRIC POWER STEERING YES
BATTERY MF 18AH
FRONT RACK N/A
REAR RACK N/A
FRONT BUMPER N/A
HITCH STANDARD/2″ RECEIVER
WINCH 3,000 LB WINCH
HAND GUARD N/A
12V CHARGER STANDARD
DAYLIGHT STRIP Running Lights
SKID PLATE PLASTIC
PASSENGER HANDLES YES
PASSENGER BACKREST N/A
STORAGE UNDERHOOD, UNDERSEAT, TAILGATE, GLOVE BOX
FRONT BRUSH GUARD ACCESSORY
USB CHARGING PORT N/A
REAR BOX STORAGE 441 LB (200 KG)
INSTRUMENTATION DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK
INDICATOR, APS INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS
LIGHTING Dual 12V 35w high/low beam Dual with brake light
COLOR PAINTED FLAME ORANGE OR PAINTED SLATE GREY

2023 Magnum XF 500 LE Side by Side Downloads

Download

2023 Magnum XF 500 LE Side by Side Product Specification Brochure 461.81 KB 15 downloads

...
