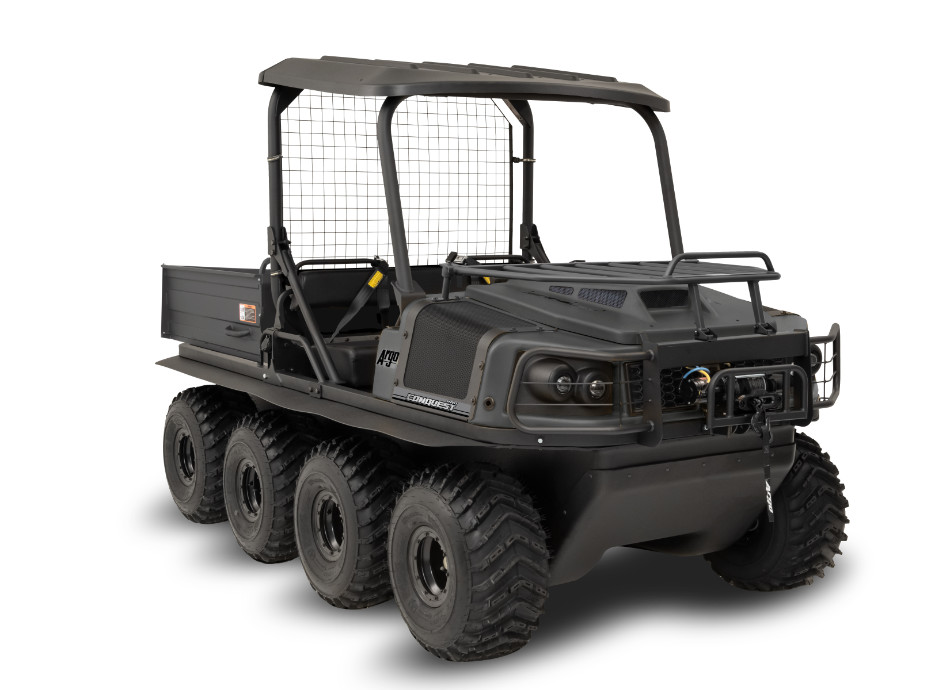

The signature feature of the Conquest Pro XT-X models is the rear cargo box with tilt assist. It’s there for hauling whatever your crew needs to haul to the remote jobsite. The Conquest Pro 800 boasts the liquid-cooled KX 800 EFI engine, overhead ROPS with a roof and protective rear safety mesh. Check out the full specifications below!
| ENGINE | KX 800 |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | EFI |
| COOLING | LIQUID COOLED |
| ALTERNATOR OUTPUT (MAX) | 60 AMPS |
| CHASSIS | 8X8 |
| SERVICE BRAKES | HYDRAULIC |
| STEERING BRAKES | HYDRAULIC |
| AUTO CHAIN LUBRICATION | STANDARD |
| BRAKE COOLING KIT | N/A |
| TRANSMISSION | ADMIRAL |
| DRIVE BELT | HEAVY DUTY |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | STANDARD |
| WINCH | 4500 lb. w/SYNTHETIC ROPE |
| FRONT RACK | ACCESSORY |
| REAR RACK | N/A |
| BILGE PUMP | STANDARD |
| ROPS | ACCESSORY |
| REAR MESH | ACCESSORY |
| ROOF | ACCESSORY |
| POWER DUMP BOX | ACCESSORY |
| LOAD CAPACITY – LAND | 1,210 lb. (549kg) |
| LOAD CAPACITY – WATER | 510 lb. (231 kg) |
| TOWING CAPACITY | 2,000 lb. (907 kg) |
| SEATING CAPACITY – LAND | 2 |
| SEATING CAPACITY – WATER | 2 |
| FUEL CAPACITY | 8.5 gal (32 L) |
| WATER CAPABILITY | AMPHIBIOUS |
| WEIGHT | 1,890 lb. (857 kg) |
| LENGTH (includes winch when standard) | 125 in (3,175 mm) |
| WIDTH | 65 in (1,651 mm) |
| HEIGHT | 49 in (1,245 mm) |
| AXLE BEARING EXTENSIONS | N/A |
| TIRES | ARGO XT117 25X12-9 |
| WHEEL | STEEL BEADLOCK |
| GROUND CLEARANCE (TIRES) | 9 in (228 mm) |
| GROUND CLEARANCE (TRACKS) | 10 in (254 mm) |
| COLORS | YELLOW, BLACK |
