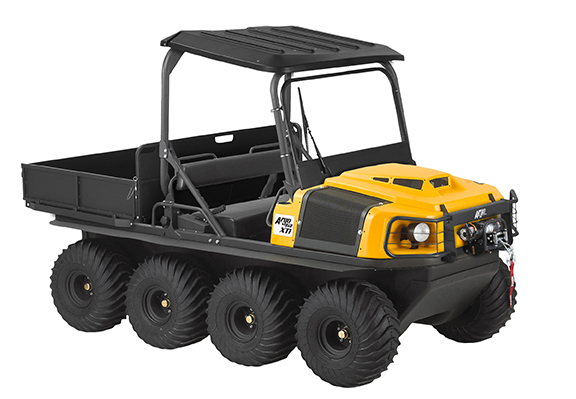

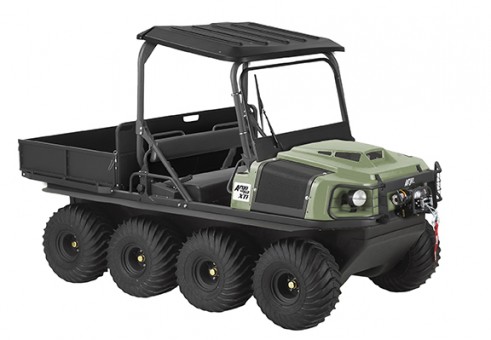

Powered by a 4-cycle OHV V-Twin gasoline EFI engine, the Conquest 8×8 Explorer XTi amphibious XTV can carry 2 passengers on land and water and has a load capacity of 1,055 lb. The Conquest 8×8 Explorer XTi has an electronic ignition, and its liquid cooled Kohler Aegis LH 775 engine has a towing capacity of 2,000 lb.
• 30HP Kohler Liquid Cooled Engine
• 25” Steel Rims
• Skid Plate
• Bilge Pump
• 4500 lb Warn Winch
• Brushguard
• HD Drive Belt
• Alternator
• Auto Chain Lubrication System
• Explorer Package (Two-Person ROPS with Rear Mesh, Clear-View Roof, Power Dump Box, Rear Receiver Wiring, Windshield with Wiper, Heated Hand Grips)
• Transmission Option: Admiral – STD (34-200-7.1)
| Engine | Kohler Aegis ELH775 |
| Engine Warranty | 3 Year |
| Type | 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders |
| Horsepower* | 30 |
| Displacement | 747cc |
| Cooling | Liquid Cooled |
| Alternator | 60 amp |
| Service Brakes | Hydraulic |
| Steering Brakes | Hydraulic |
| Brake Cooling Fan | Optional |
| Steering | Multi-position, one-piece ergonomic handlebar steering control features hand brake. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | ADMIRAL triple differential steering transmission with independent High and Low range; Forward, Neutral, Reverse. |
| Transmission Options | STD |
| Drive System | Chains drive machined sprockets. 1 1/2″ diameter axle supported by dual tapper roller bearings in an aluminum housing. Axles are prefilled with gear oil for lubrication. |
| Final Drive | RS60HT heavy duty roller chain with automatic, spring loaded tensioners. |
| HD Drive Belt | Standard |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene |
| Full Skid Plate | Standard |
| Brushguard | standard |
| Winch | 4,500 Warn Winch & Rear Receiver Winch Kit |
| Bilge Pump | Standard |
| Load Capacity – On Land | 1055 lb./479 kg total |
| Load Capacity – Rear Compartment | — |
| Load Capacity – On Water | Not Amphibious |
| Towing Capacity | 2000 lb. / 907 kg |
| Seating Capacity | 2 persons on land, 2 persons on water |
| Fuel Capacity | 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) | 17 mph / 27 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 2045 lb. / 928 kg |
| Axle Bearing Extensions | Standard |
| Instrumentation | Analog Gauge Cluster, Speedometer with digital odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure, fuel level guage, water temp. indicator and Parking Brake Reminder Lights, Check Engine Light |
| Entry Step | — |
| Tires | ARGO AT189 25 x 12.00-9NHS |
| Ground Pressure | 2.5 psi (17.2 kPa) using tires |
| Ground Clearance Tires | 9 inches – 230 mm |
| Ground Clearance Tracks | 10 inches – 255 mm |
| Operating Conditions | All weather,all-terrain,-40°C to +40°C |
| Dimensions |  |
*subject to change without notice
